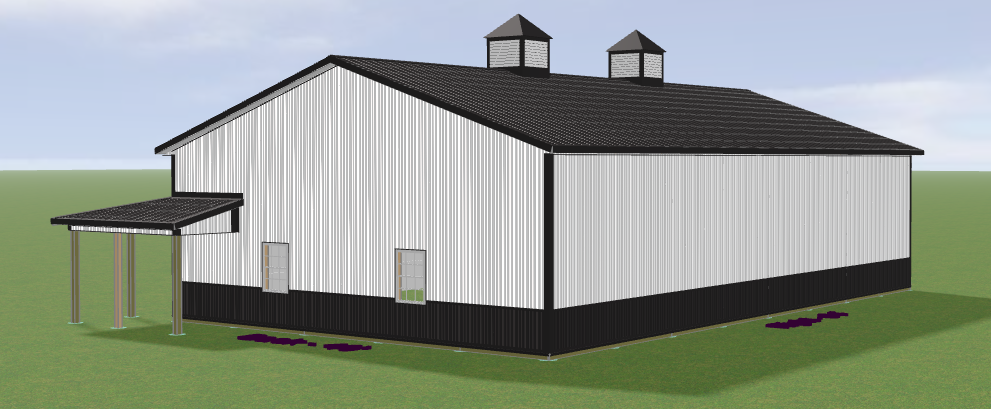

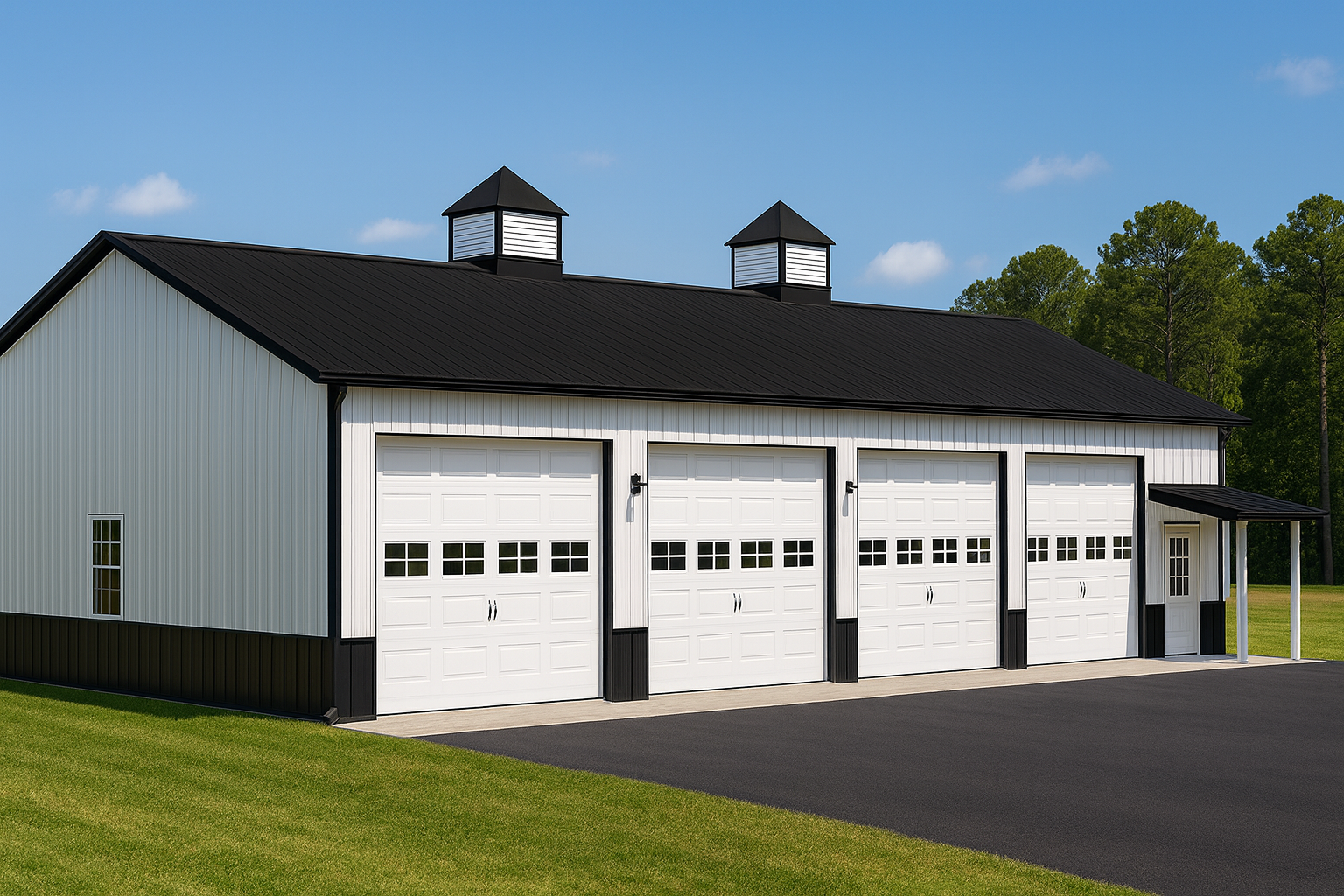

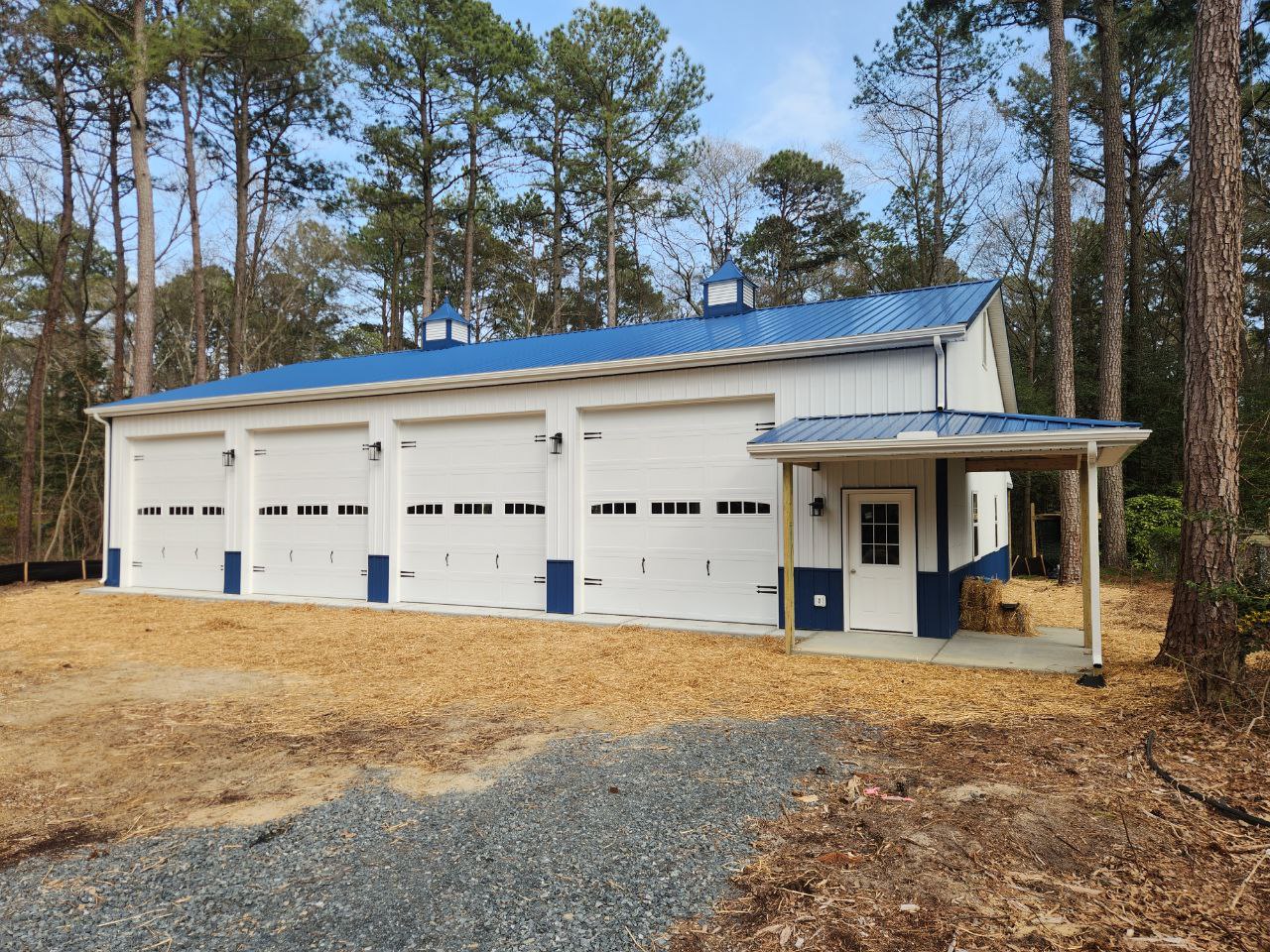

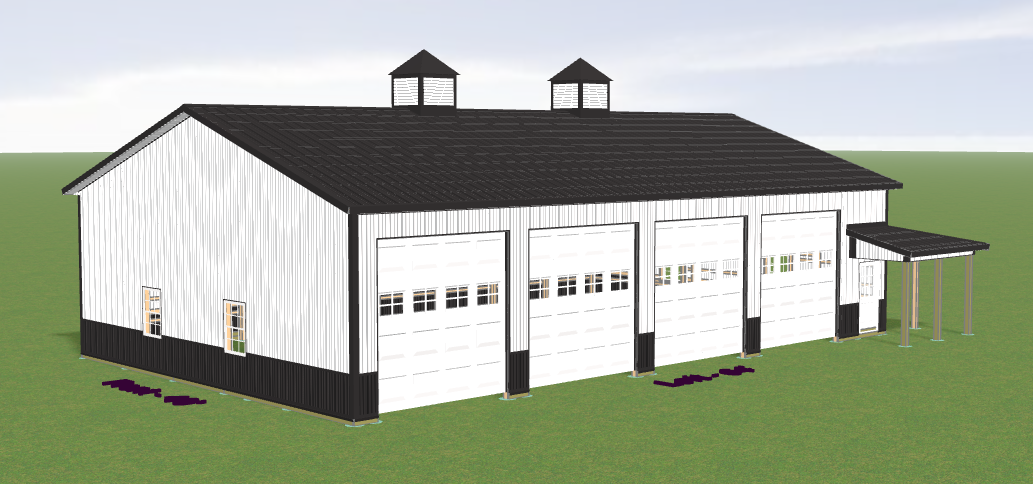

The WRANGLER Pole Building Kit

The WRANGLER 40x64x14 is a large four-car garage pole building kit with a small front porch. With 2,560 square feet of floor space and 14-foot sidewalls, this kit is designed for property owners who need to house multiple large vehicles, run a working shop, or store substantial agricultural or recreational equipment.

Four 12x12 garage door openings give drive-through access for RVs, large trucks, boat trailers, and commercial equipment. The 14-foot sidewalls provide ample vertical clearance for tall vehicles and overhead storage or lifting equipment. The front porch adds a practical covered entry point to the building.

All structural framing, G-Rib 29-gauge steel roofing and siding, ThermaGuard moisture barrier, fasteners, and trim are included. CAD drawings and engineer-stamped truss certification (when required) come with the kit for your permit application.

Key Features

• Four 12x12 Garage Door Openings: Accommodates four large vehicles simultaneously, including RVs, trucks, and boats.
• 2,560 Square Feet: 40x64 footprint with enough room for four bays and a working shop area.
• 14-Foot Sidewalls: Clearance for tall RVs, motorhomes, large trucks, and overhead equipment or storage.
• Front Porch Included: A small covered porch at the entry adds weather protection and a finished look to the building.
• G-Rib 29-Gauge Steel: High-quality painted steel roofing and siding with a 40-year finish warranty.
• ThermaGuard Moisture Barrier: Installed on the roof to reduce moisture-related issues over time.
• CAD Drawings Included: Elevation and post location drawings ready for your local building permit application.
• 4-Sided Soffit: 12-inch overhang with soffit on all four sides for a clean, finished exterior.

Specifications

• Size: 40 x 64 x 14 (2,560 sq ft)
• Roof Pitch: 4/12 Standard Truss
• Garage Door Openings: (4) 12 ft x 12 ft
• Personnel Door Opening: (1) 3'0" x 6'8"
• Windows: (4) openings
• Porch: Small front porch included
• Sidewall Height: 14 feet
• Overhang: 12" with soffit on all 4 sides
• Roofing and Siding: G-Rib 29 ga. painted steel
• Warranty: 40-Year Painted Finish Warranty
• Moisture Barrier: ThermaGuard for roof
• Fasteners: All necessary metal fasteners included
• Delivery: Included to AL, CT, DE, GA, IL, IN, KY, MD, MA, MI, MN, MS, NJ, NY, NC, OH, PA, RI, SC, TN, VA, WV, WI

You Provide

• Tools and labor (yourself and a helper or two)
• Any required building permits
• Site survey and location prep
• Sakrete/Quikrete dry-pour concrete (not included)
• Framing nails (not included)

Material Checklist

• 4x6 or GluLam posts spaced 8 ft on center
• Pressure-treated 2x6 skirtboard
• 2x4 purlins and side girts, spaced 2 ft on center
• 4/12 pitch trusses, engineered and spaced 4 ft on center
• Painted screws, hurricane ties, Simpson H2.5A rafter ties
• Full metal trim package: ridge cap, rake, drip edge, fascia, J-channel, overhead door trim, and more

Please note: Upon delivery, please inspect materials immediately. Notify PBS Direct within 48 hours if anything is missing or damaged.

Quality and Warranty

PBS Direct warrants all materials against structural or workmanship defects. Improper handling or installation voids the warranty. Damaged deliveries must be reported within 48 hours of receipt for replacement.

Why Choose PBS Direct

• Engineered designs
• Delivered directly to your job site
• Backed by professional CAD drawings and support
• Built to last with industry-leading materials

The WRANGLER 40x64x14 is for those who need a large, multi-bay building with the clearance to match. With four 12x12 doors, 14-foot walls, a front porch, and 2,560 sq ft of floor space, it works as a four-car garage, fleet storage facility, RV barn, or large agricultural building.

Deposit note: A $1,250 non-refundable deposit is required to receive CAD drawings. Adjustments for permits will be made as needed. Balance is due before materials are ordered. A 1.5% handling fee applies when paying by card. For delivery outside the listed states, please call for pricing.
