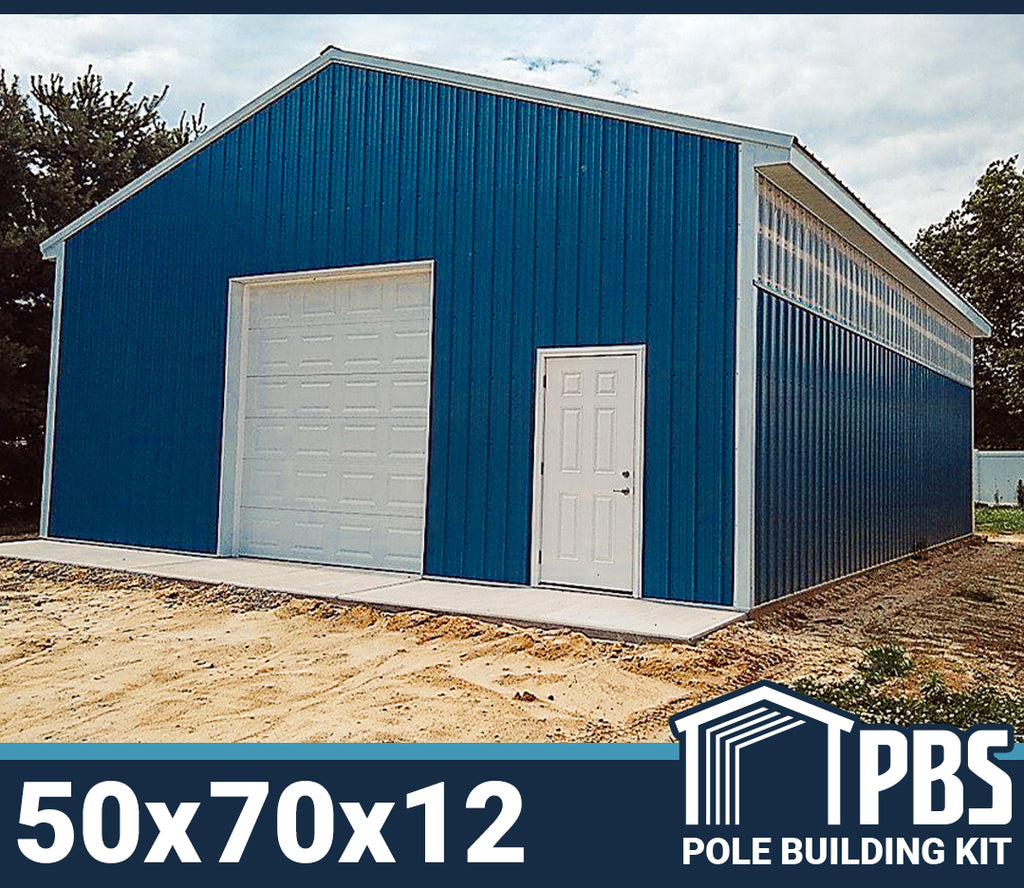

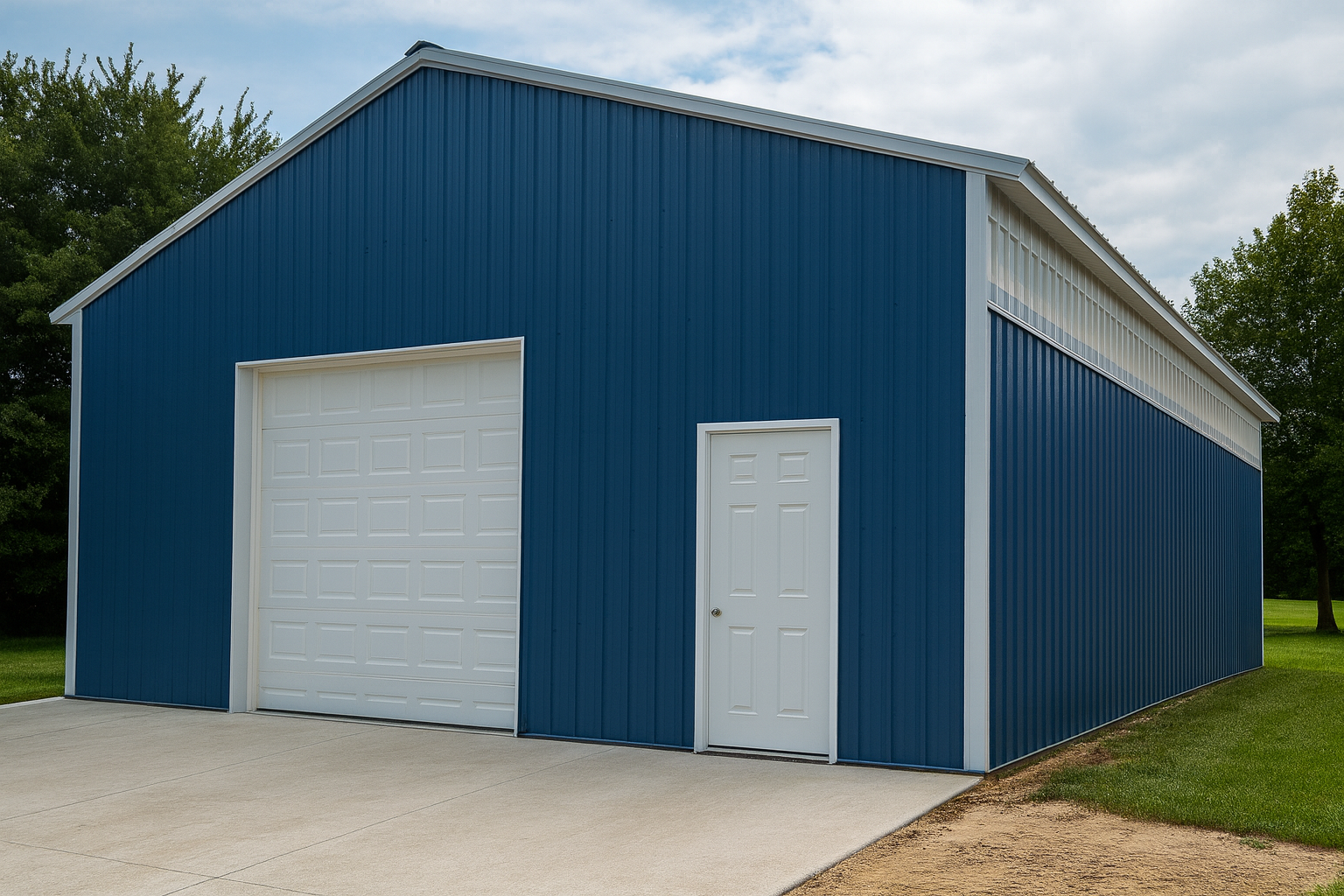

The YUKON Pole Building Kit

The YUKON 50x70x12 is one of the largest pole building kits in the PBS Direct range. At 3,500 square feet with 12-foot sidewalls and a 50-foot clear-span width, this kit is sized for large agricultural buildings, commercial warehouses, equipment storage, and multi-purpose facilities that require substantial covered floor space.

The building features sidelights, which are clear polycarbonate panels positioned along the sidewalls to bring in natural light across the wide interior. A single 8x10 garage door opening provides vehicle and equipment access, while four window openings and the sidelights create a well-lit interior for working or storage.

All structural framing, G-Rib 29-gauge steel roofing and siding, ThermaGuard moisture barrier, fasteners, and trim are included. CAD drawings and engineer-stamped truss certification (when required) come with the kit for your permit application.

Key Features

• 3,500 Square Feet: 50x70 footprint suited for large-scale agricultural, commercial, and storage applications.
• Sidelights Included: Sidewall windows that bring natural light into the wide interior of the building.
• 50-Foot Clear-Span Width: Open floor plan with no interior posts interrupting the usable floor space.
• 12-Foot Sidewalls: Vertical clearance for standard agricultural equipment and commercial vehicles.
• G-Rib 29-Gauge Steel: High-quality painted steel roofing and siding with a 40-year finish warranty.
• ThermaGuard Moisture Barrier: Installed on the roof to reduce moisture-related issues over time.
• CAD Drawings Included: Elevation and post location drawings ready for your local building permit application.
• 4-Sided Soffit: 12-inch overhang with soffit on all four sides.

Specifications

• Size: 50 x 70 x 12 (3,500 sq ft)
• Roof Pitch: 4/12 Standard Truss
• Configuration: Large building with sidelights

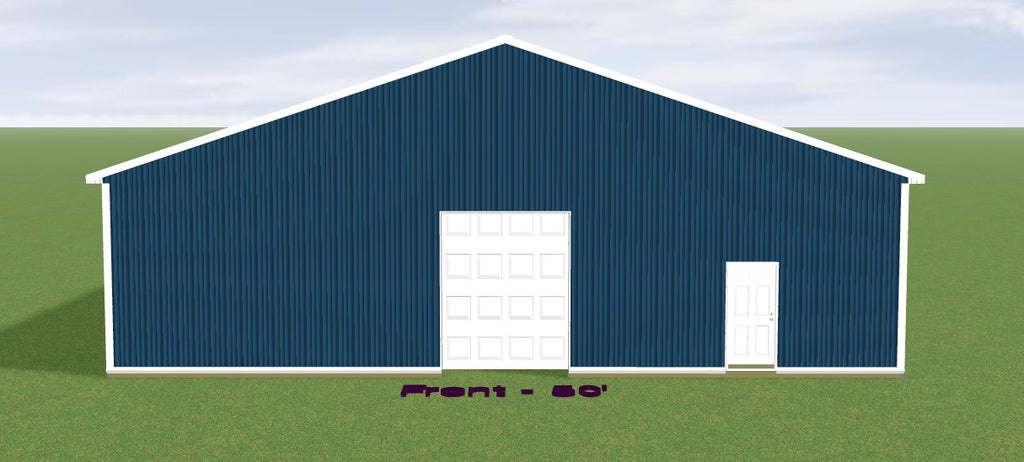

• Garage Door Opening: (1) 8 ft x 10 ft
• Personnel Door Opening: (1) 3'0" x 6'8"

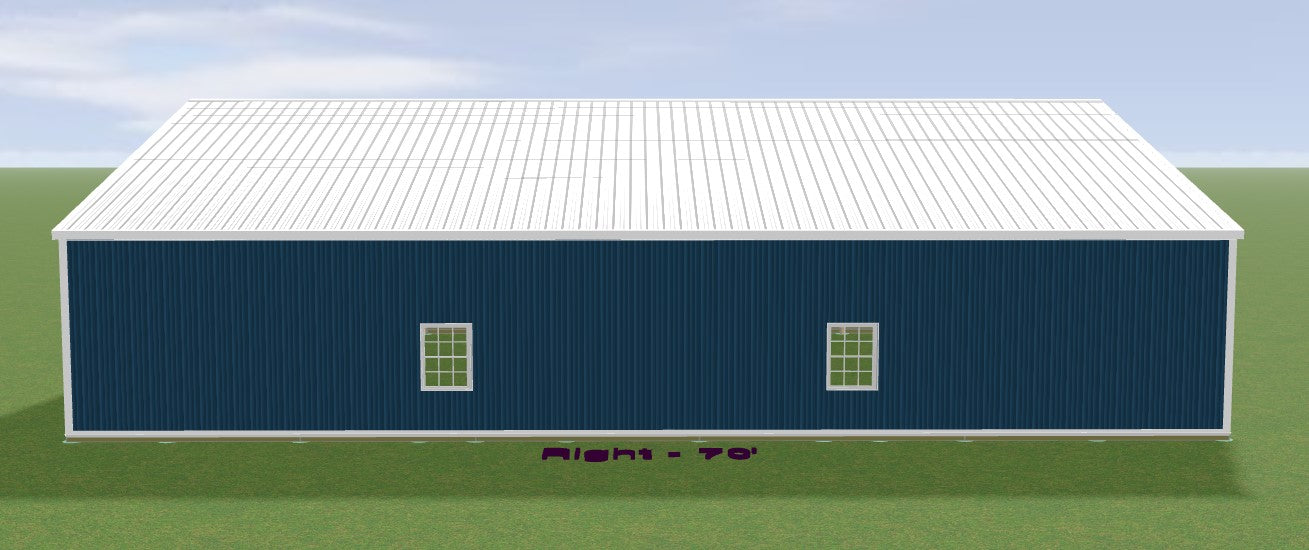

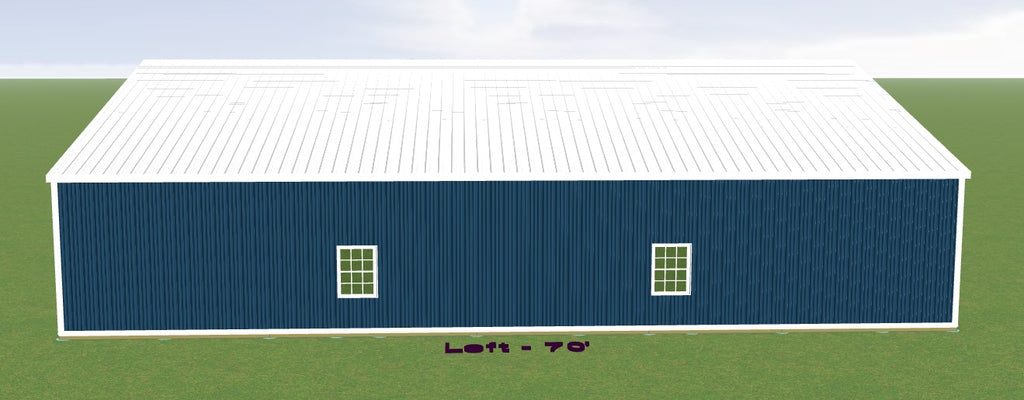

• Windows: (4) openings plus sidelights
• Sidewall Height: 12 feet
• Overhang: 12" with soffit on all 4 sides
• Roofing and Siding: G-Rib 29 ga. painted steel
• Warranty: 40-Year Painted Finish Warranty
• Moisture Barrier: ThermaGuard for roof
• Fasteners: All necessary metal fasteners included
• Delivery: Included to AL, CT, DE, GA, IL, IN, KY, MD, MA, MI, MN, MS, NJ, NY, NC, OH, PA, RI, SC, TN, VA, WV, WI

Ideal Use Cases

• Large hay, grain, and agricultural equipment storage
• Commercial and light industrial warehouse operations
• Multi-vehicle and fleet storage
• Large-scale equestrian or livestock facilities
• Community or cooperative storage buildings
• Manufacturing and fabrication facilities

You Provide

• Tools and labor (yourself and a helper or two)
• Any required building permits
• Site survey and location prep
• Sakrete/Quikrete dry-pour concrete (not included)
• Framing nails (not included)

Material Checklist

• 4x6 or GluLam posts spaced 8 ft on center
• Pressure-treated 2x6 skirtboard
• 2x4 purlins and side girts, spaced 2 ft on center
• 4/12 pitch trusses, engineered and spaced 4 ft on center
• Painted screws, hurricane ties, Simpson H2.5A rafter ties
• Full metal trim package: ridge cap, rake, drip edge, fascia, J-channel, overhead door trim, and more

Please note: Upon delivery, please inspect materials immediately. Notify PBS Direct within 48 hours if anything is missing or damaged.

Quality and Warranty

PBS Direct warrants all materials against structural or workmanship defects. Improper handling or installation voids the warranty. Damaged deliveries must be reported within 48 hours of receipt for replacement.

Why Choose PBS Direct

• Engineered designs
• Delivered directly to your job site
• Backed by professional CAD drawings and support
• Built to last with industry-leading materials

The YUKON 50x70x12 is built for applications where standard-sized pole buildings are simply not large enough. With 3,500 sq ft of clear-span floor space, sidelights for natural lighting, and 12-foot walls, this kit handles large-scale needs that most residential-grade building kits cannot.

Deposit note: A $1,250 non-refundable deposit is required to receive CAD drawings. Adjustments for permits will be made as needed. Balance is due before materials are ordered. A 1.5% handling fee applies when paying by card. For delivery outside the listed states, please call for pricing.
