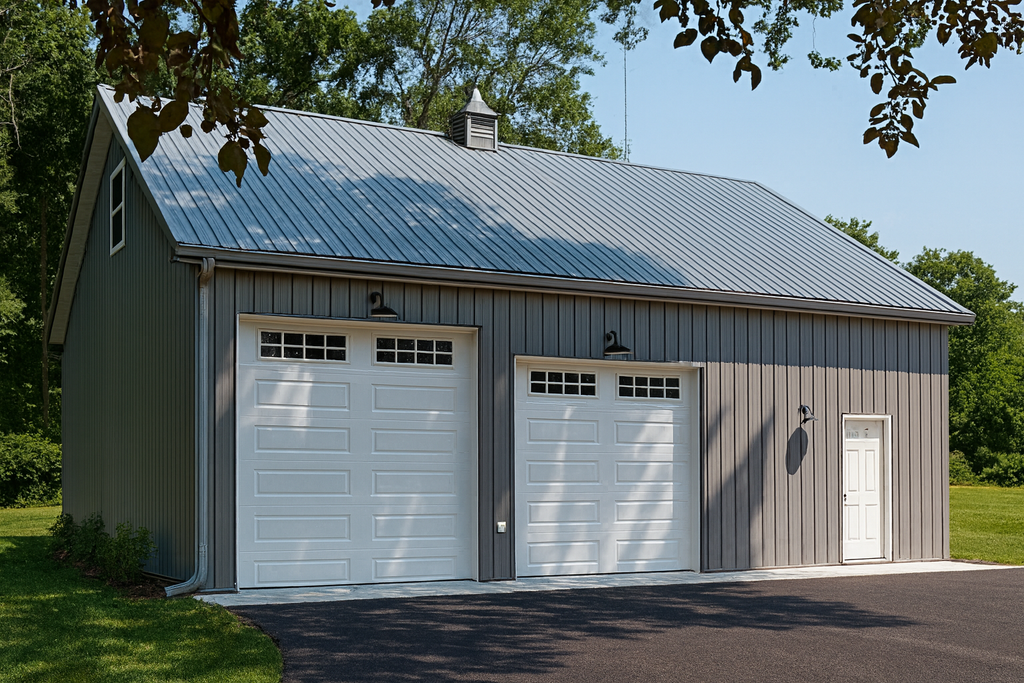

The KEYSTONE Pole Building Kit

The KEYSTONE 30x40x14 is a complete workshop pole building kit with 1,200 square feet of floor space and 14-foot sidewalls. The tall walls and mixed door configuration, a 9x12 opening and a 9x10 opening, make this kit well suited for professional workshop setups, vehicle lifts, tall agricultural equipment, or any application where standard 10-foot walls fall short.

The 9x12 door opening is tall enough for most full-size trucks and SUVs with roof racks or bed covers, while the 9x10 opening suits standard vehicles and smaller machinery. The 14-foot sidewalls provide clearance for overhead storage systems, ceiling-mounted equipment, and vehicle hoists.

All structural framing, G-Rib 29-gauge steel roofing and siding, ThermaGuard moisture barrier, fasteners, and trim are included. CAD drawings and engineer-stamped truss certification (when required) come with the kit for your permit application.

Key Features

• 14-Foot Sidewalls: Extra vertical clearance for vehicle lifts, overhead storage, ceiling-mounted equipment, and taller vehicles.
• Mixed Door Configuration: (1) 9x12 opening for taller vehicles and (1) 9x10 opening for standard vehicles or machinery.
• Workshop Layout: 1,200 sq ft of floor space designed for professional and trade workshop use.
• G-Rib 29-Gauge Steel: High-quality painted steel roofing and siding with a 40-year finish warranty.
• ThermaGuard Moisture Barrier: Installed on the roof to reduce moisture-related issues over time.
• CAD Drawings Included: Elevation and post location drawings ready for your local building permit application.
• 4-Sided Soffit: 12-inch overhang with soffit on all four sides.

Specifications

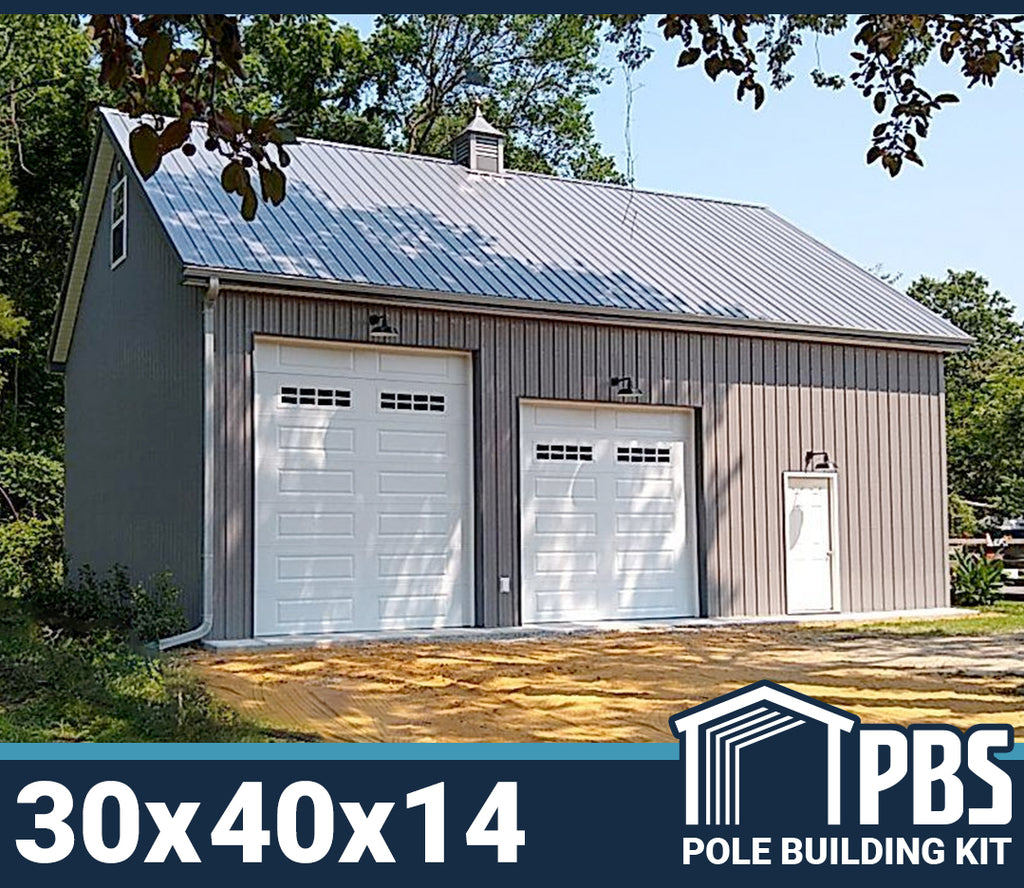

• Size: 30 x 40 x 14 (1,200 sq ft)
• Roof Pitch: 4/12 Standard Truss
• Garage Door Openings: (1) 9 ft x 12 ft and (1) 9 ft x 10 ft
• Personnel Door Opening: (1) 3'0" x 6'8"
• Windows: (2) openings
• Sidewall Height: 14 feet
• Overhang: 12" with soffit on all 4 sides
• Roofing and Siding: G-Rib 29 ga. painted steel
• Warranty: 40-Year Painted Finish Warranty
• Moisture Barrier: ThermaGuard for roof
• Fasteners: All necessary metal fasteners included
• Delivery: Included to AL, CT, DE, GA, IL, IN, KY, MD, MA, MI, MN, MS, NJ, NY, NC, OH, PA, RI, SC, TN, VA, WV, WI

You Provide

• Tools and labor (yourself and a helper or two)
• Any required building permits
• Site survey and location prep
• Sakrete/Quikrete dry-pour concrete (not included)
• Framing nails (not included)

Material Checklist

• 4x6 or GluLam posts spaced 8 ft on center
• Pressure-treated 2x6 skirtboard
• 2x4 purlins and side girts, spaced 2 ft on center
• 4/12 pitch trusses, engineered and spaced 4 ft on center
• Painted screws, hurricane ties, Simpson H2.5A rafter ties
• Full metal trim package: ridge cap, rake, drip edge, fascia, J-channel, overhead door trim, and more

Please note: Upon delivery, please inspect materials immediately. Notify PBS Direct within 48 hours if anything is missing or damaged.

Quality and Warranty

PBS Direct warrants all materials against structural or workmanship defects. Improper handling or installation voids the warranty. Damaged deliveries must be reported within 48 hours of receipt for replacement.

Why Choose PBS Direct

• Engineered designs
• Delivered directly to your job site
• Backed by professional CAD drawings and support
• Built to last with industry-leading materials

The KEYSTONE 30x40x14 is the choice when 10-foot walls are not enough. The 14-foot clearance, combined with a 9x12 door opening and 1,200 sq ft of floor space, makes it one of the most capable workshop and garage kits in the PBS Direct range at the 30x40 footprint.

Deposit note: A $1,250 non-refundable deposit is required to receive CAD drawings. Adjustments for permits will be made as needed. Balance is due before materials are ordered. A 1.5% handling fee applies when paying by card. For delivery outside the listed states, please call for pricing.
