The PIONEER Pole Building Kit

Name: The PIONEER Pole Building Kit
Brand: Bildabarn
SKU: Kit-PBS1816
Price: 21250.00 USD
Availability: InStock

15% off

$21,250⁰⁰ $25,000⁰⁰

Pickup available at Delaware Retail Store

Usually ready in 5+ days

Description

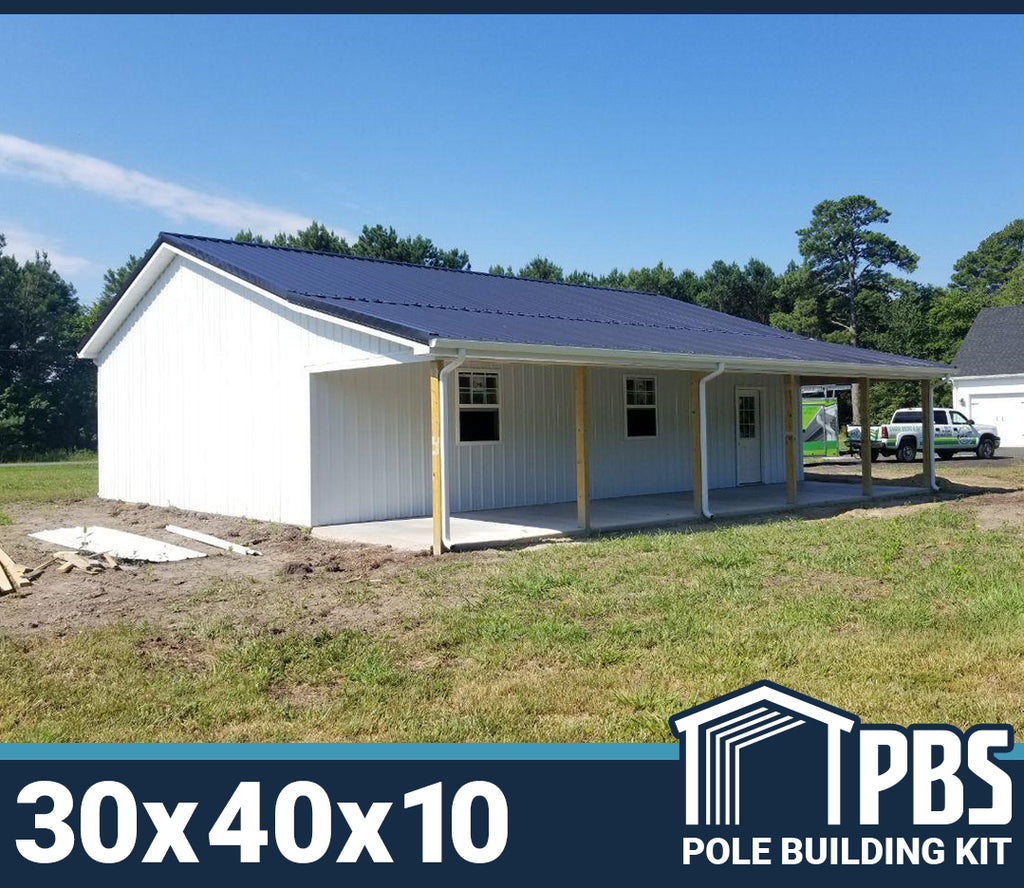

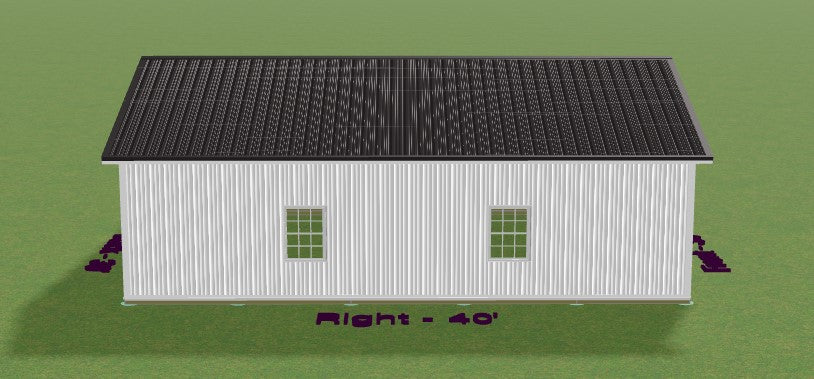

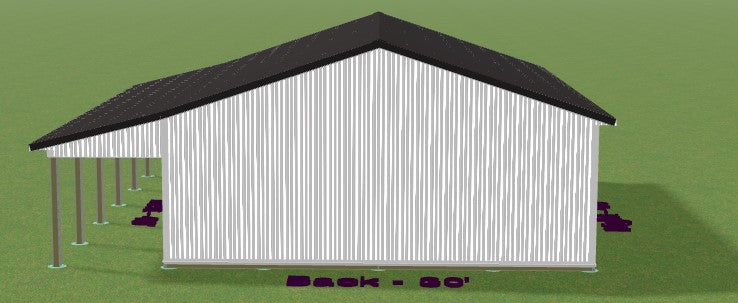

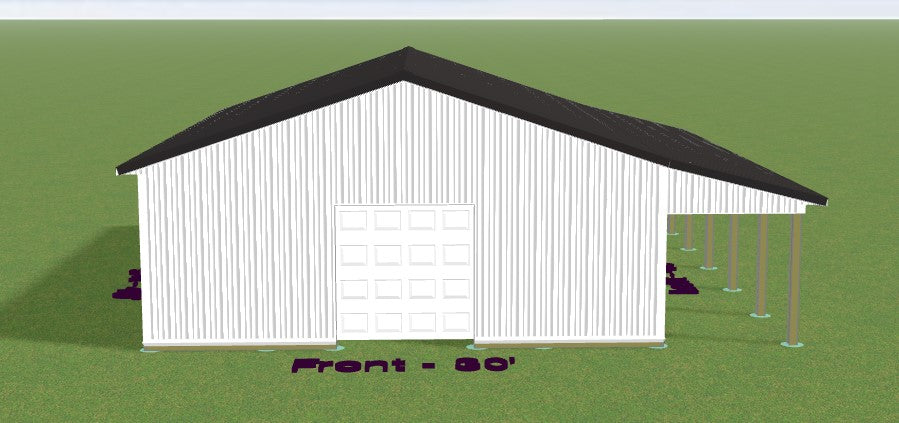

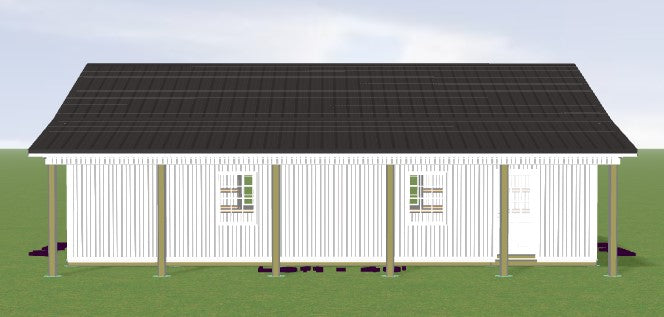

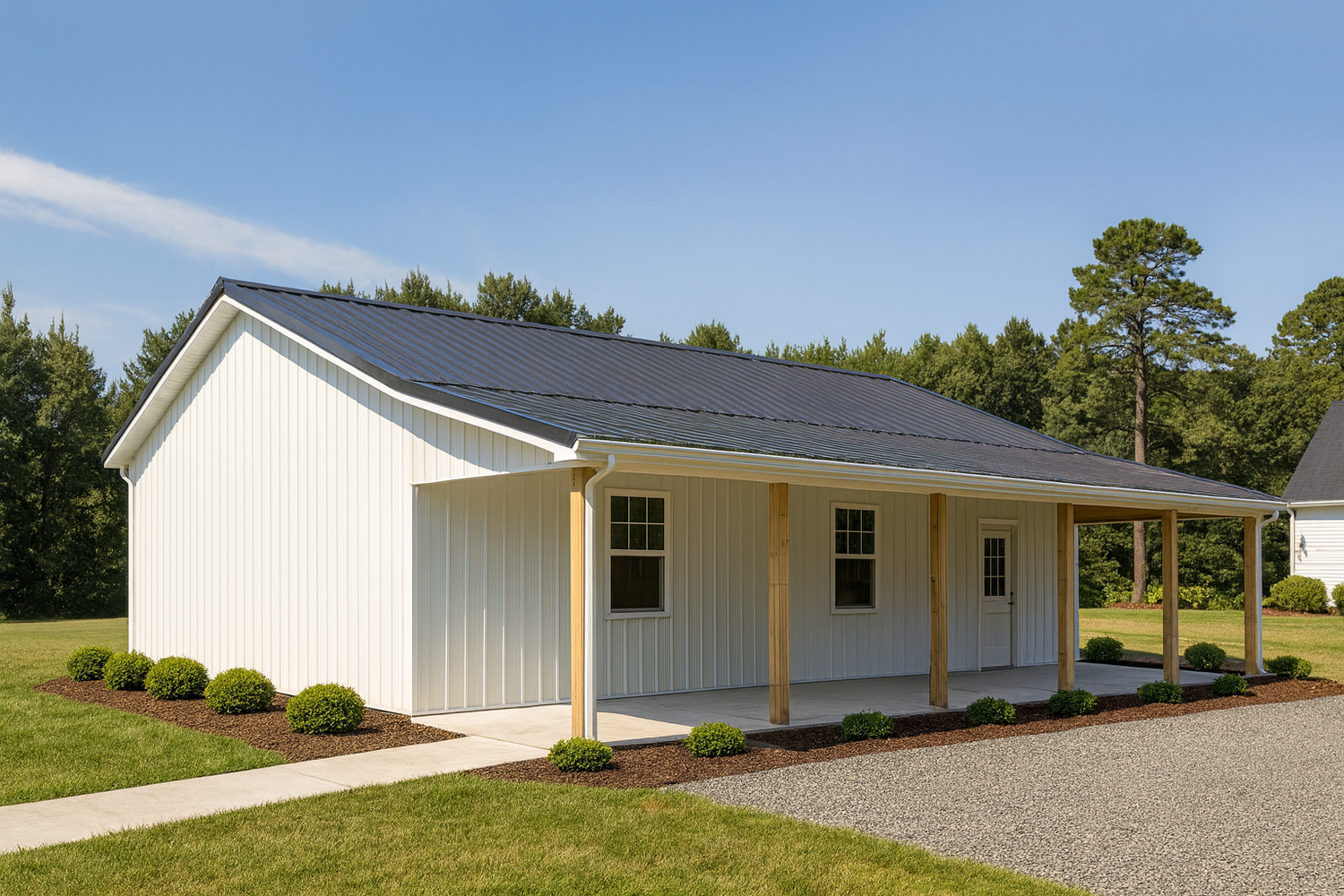

Hobby Building w/ Front Porch - 1200sqft - 30x40x10

Size: 30x40x10
Pitch: 4/12 Standard Truss
(1) 8'x8' Garage Door
(1) 3'0" x 6'8" Personnel Door
(4) Windows
12" Overhang with Soffit (4-Sides)
(1) 8'x40' Open Lean-to included (as pictured)

🧱 What’s Included

Complete pole building kit with all materials required for construction
CAD drawings (elevations and post locations) for permitting
Engineer-stamped truss certification (when required)
High-quality G-Rib 29-gauge metal roofing and siding with 40-year warranty
ThermaGuard moisture barrier for roof
All necessary metal fasteners, trusses, and framing materials engineered to code

Note: A $1,250 non-refundable deposit is required to receive CAD drawings. Adjustments for permits will be made as needed. Balance due prior to ordering materials.

📦 Delivery Details

Price includes delivery to the following states:
AL, CT, DE, GA, IL, IN, KY, MD, MA, MI, MN, MS, NJ, NY, NC, OH, PA, RI, SC, TN, VA, WV, WI.
For delivery to other states, please call for pricing.

All kits are subject to a 1.5% handling fee when paying by card.

🛠️ You Provide

Tools and labor (yourself and a helper or two)
Any required building permits
Site survey and location prep
Sakrete/Quikrete dry-pour concrete (not included)
Framing nails (not included)

🧾 Material Checklist

4×6 or GluLam posts spaced 8′ on center
Pressure-treated 2×6 skirtboard
2×4 purlins and side girts, spaced 2′ on center
4/12 pitch trusses, engineered and spaced 4′ on center
Painted screws, hurricane ties, Simpson H2.5A rafter ties
Full metal trim package: ridge cap, rake, drip edge, fascia, J-channel, overhead door trim, and more

Upon delivery, please inspect materials immediately. Notify PBS Direct within 48 hours if anything is missing or damaged.

🧰 Quality & Warranty

PBS Direct warrants all materials against structural or workmanship defects. Improper handling or installation voids warranty. Damaged deliveries must be reported within 48 hours for replacement.

🏡 Why Choose PBS Direct

Engineered and code-compliant designs
Delivered directly to your job site
Backed by professional CAD drawings and support
Built to last with industry-leading materials

FAQs

What is a pole building kit?

A pole building kit is a complete, pre-engineered package of materials needed to construct a post-frame structure — also called a pole barn. PBS Direct kits include all structural lumber (posts, trusses, girts, purlins), metal roofing and siding panels in your chosen color, a full trim package, and all fasteners. Post-frame construction uses large vertical posts as the primary structural support, eliminating the need for a continuous perimeter foundation. This makes pole buildings significantly faster and more affordable than conventional stick-built or concrete block structures. PBS Direct ships building kits free to anywhere in the continental US , with a lead time of 3–6 weeks from order to delivery at your job site.

What exactly comes in a PBS Direct pole building kit?

Every PBS Direct Bildabarn kit ships complete — no separate sourcing required. A standard kit includes: Structural lumber — posts, roof trusses, wall girts, roof purlins, and headers Metal roofing and siding panels — all panels in your chosen color, cut to your building's dimensions Complete trim package — ridge cap, eave trim, gable trim, corner trim, base angle, door jamb trim, and closure strips, all color-matched Fasteners — all metal-to-wood screws, color-matched to your panel selection Assembly documentation — instructions covering the full build sequence Not included in the standard kit: concrete for footings or slab, garage doors, personnel doors, windows, and insulation — all available separately at pbsdirect.com. Contact our team to customize color, size, or features.

What pole building kit sizes does PBS Direct offer?

PBS Direct stocks the full Bildabarn range. Available sizes include: 20×20×12 ft — The Boone (compact garage or workshop) 20×24×10 ft — The Scout 22×30×10 ft — The Houston 24×30×10 ft — The Ranger, The Sierra 24×40×10 ft — The Redwood, The Silverton, The Cheyenne 24×60×10 ft — The Rambler (RV or equipment storage) 26×42×12 ft — The Clyde (12 ft eave height) 30×36×10 ft — The Dakota 30×40×10 ft — The Frontier, The Pioneer, The Canyon 30×40×12 ft — The Heritage 30×40×14 ft — The Keystone (large equipment clearance) 30×50×12 ft — The Sequoia, The Summit 30×50×14 ft — The Yosemite 40×80×16 ft — The Monroe (commercial scale) 50×70×12 ft — The Yukon The Wrangler — large multi-bay configuration Need a non-standard size? Request a custom building quote .
