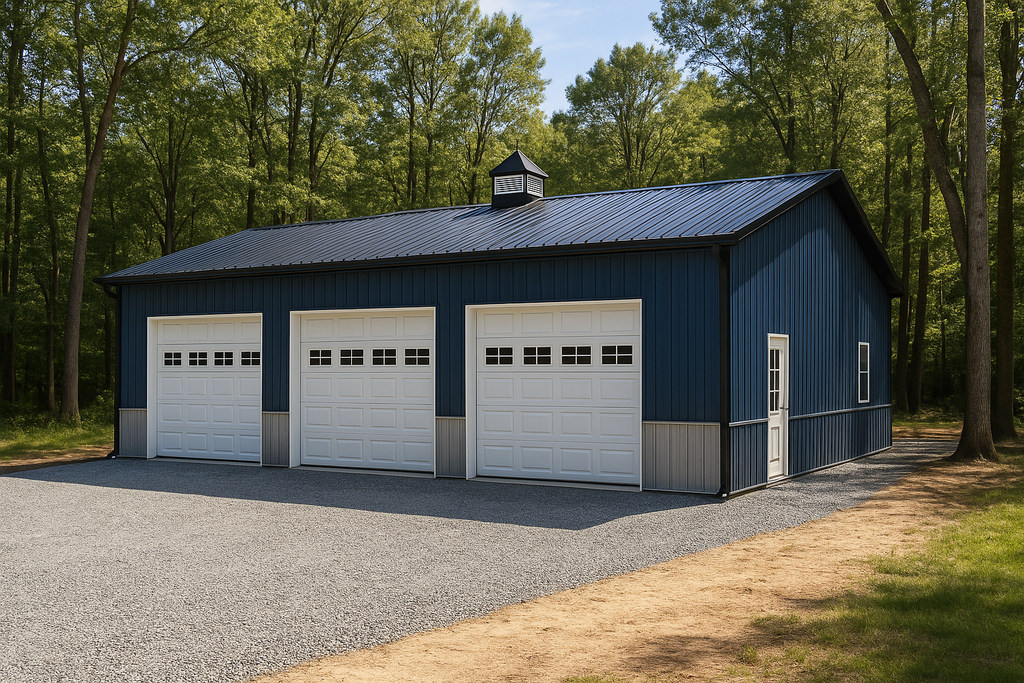

The CLYDE Pole Building Kit

The CLYDE 26x42x12 is a complete 3-car garage pole building kit with wainscoting and tall 10x10 garage door openings. At 1,092 square feet with 12-foot sidewalls, this kit is one of the more finished-looking options in the PBS Direct range. The three 10x10 openings are taller than standard 8 or 9-foot doors, accommodating full-size trucks, taller SUVs, and vehicles with roof accessories.

Wainscoting is included as part of the kit. It uses the same 29-gauge steel as the rest of the building but in a contrasting colour on the bottom 3 feet of the walls, giving the building a two-tone exterior finish. Because the wainscoting is a separate 3-foot panel rather than a full sidewall piece, it is easier to replace if the lower section is ever damaged. Three window openings provide natural light. The 12-foot sidewalls give extra vertical clearance compared to a standard 10-foot build, useful for taller vehicles and wall-mounted storage systems.

All structural framing, G-Rib 29-gauge steel roofing and siding, ThermaGuard moisture barrier, fasteners, and trim are included. CAD drawings and engineer-stamped truss certification (when required) come with the kit for your permit application.

Key Features

• Three 10x10 Garage Door Openings: Taller than standard doors, fitting full-size trucks, SUVs with roof racks, and taller vehicles.
• Wainscoting Included: A contrasting colour panel on the bottom 3 feet of the walls gives the building a two-tone exterior finish. The same 29-gauge steel as the rest of the building, but in a shorter section that is easier to replace if the lower wall is ever damaged.
• 12-Foot Sidewalls: Extra vertical clearance for taller vehicles and wall-mounted storage or equipment.
• 1,092 Square Feet: Three bays in a 26x42 footprint with room behind the vehicles for storage.
• G-Rib 29-Gauge Steel: High-quality painted steel roofing and siding with a 40-year finish warranty.
• ThermaGuard Moisture Barrier: Installed on the roof to reduce moisture-related issues over time.

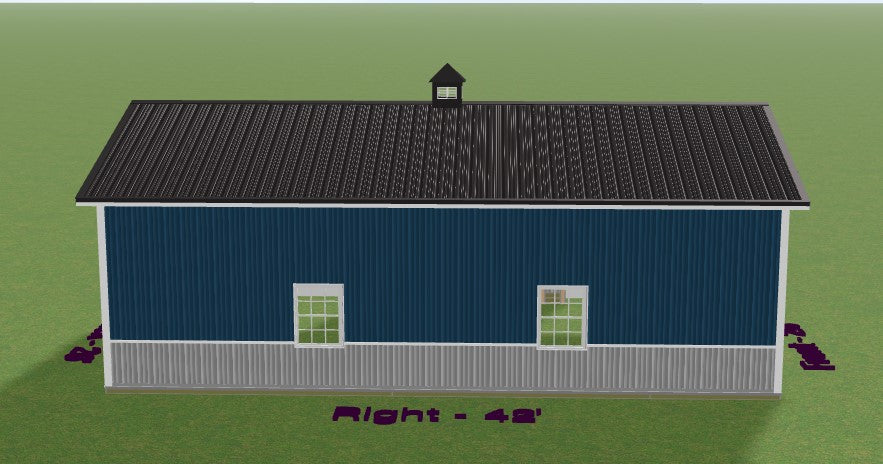

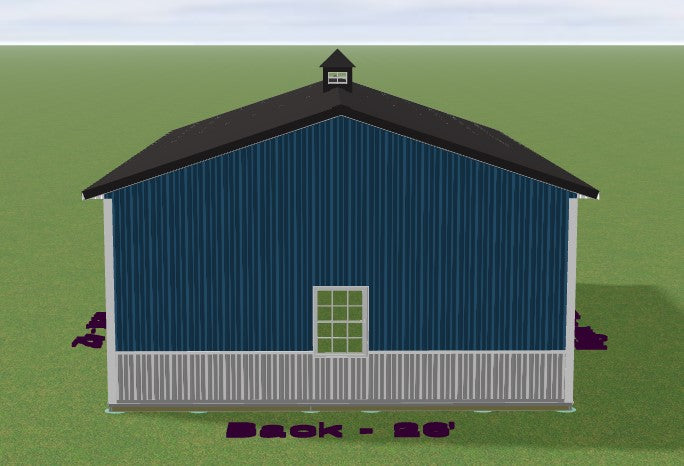

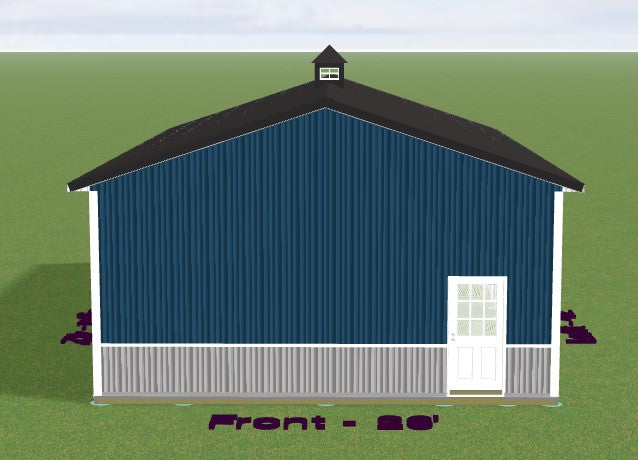

• CAD Drawings Included: Elevation and post location drawings ready for your local building permit application.
• 4-Sided Soffit: 12-inch overhang with soffit on all four sides.

Specifications

• Size: 26 x 42 x 12 (1,092 sq ft)
• Roof Pitch: 4/12 Standard Truss
• Garage Door Openings: (3) 10 ft x 10 ft
• Personnel Door Opening: (1) 3'0" x 6'8"
• Windows: (3) openings
• Exterior Detail: Wainscoting
• Sidewall Height: 12 feet
• Overhang: 12" with soffit on all 4 sides
• Roofing and Siding: G-Rib 29 ga. painted steel
• Warranty: 40-Year Painted Finish Warranty
• Moisture Barrier: ThermaGuard for roof
• Fasteners: All necessary metal fasteners included
• Delivery: Included to AL, CT, DE, GA, IL, IN, KY, MD, MA, MI, MN, MS, NJ, NY, NC, OH, PA, RI, SC, TN, VA, WV, WI

You Provide

• Tools and labor (yourself and a helper or two)
• Any required building permits
• Site survey and location prep
• Sakrete/Quikrete dry-pour concrete (not included)
• Framing nails (not included)

Material Checklist

• 4x6 or GluLam posts spaced 8 ft on center
• Pressure-treated 2x6 skirtboard
• 2x4 purlins and side girts, spaced 2 ft on center
• 4/12 pitch trusses, engineered and spaced 4 ft on center
• Painted screws, hurricane ties, Simpson H2.5A rafter ties
• Full metal trim package: ridge cap, rake, drip edge, fascia, J-channel, overhead door trim, and more

Please note: Upon delivery, please inspect materials immediately. Notify PBS Direct within 48 hours if anything is missing or damaged.

Quality and Warranty

PBS Direct warrants all materials against structural or workmanship defects. Improper handling or installation voids the warranty. Damaged deliveries must be reported within 48 hours of receipt for replacement.

Why Choose PBS Direct

• Engineered designs
• Delivered directly to your job site
• Backed by professional CAD drawings and support
• Built to last with industry-leading materials


The CLYDE 26x42x12 is a well-specified 3-car garage that delivers more than standard configurations at this size. The combination of 10x10 doors, 12-foot walls, and wainscoting finish makes it one of the most visually complete options for a residential 3-car garage build.

Deposit note: A $1,250 non-refundable deposit is required to receive CAD drawings. Adjustments for permits will be made as needed. Balance is due before materials are ordered. A 1.5% handling fee applies when paying by card. For delivery outside the listed states, please call for pricing.
