The CHEYENNE Pole Building Kit

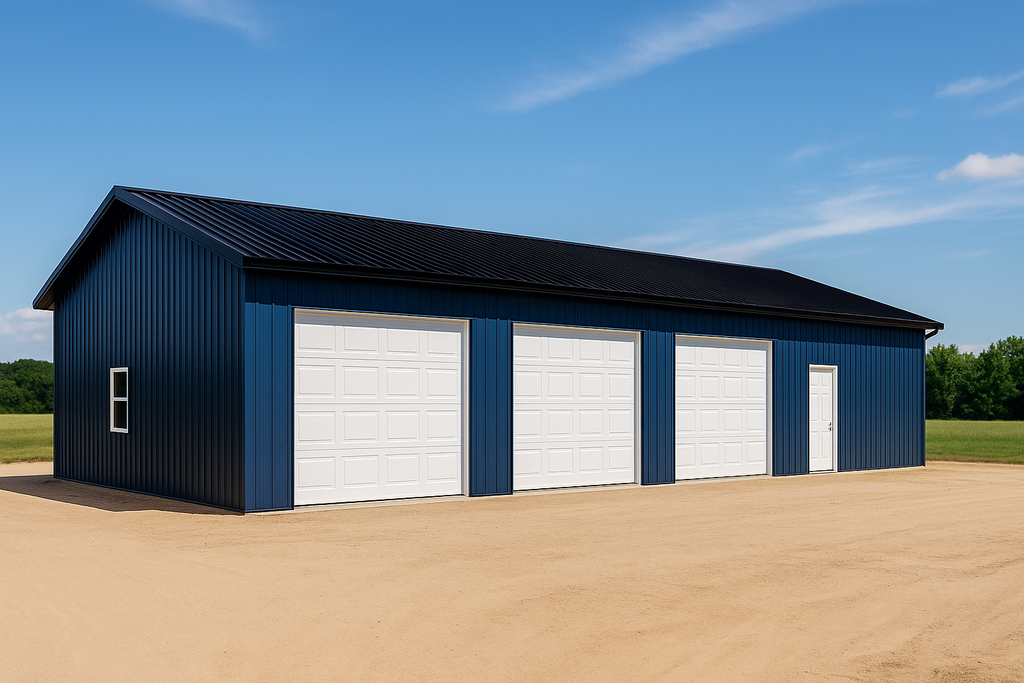

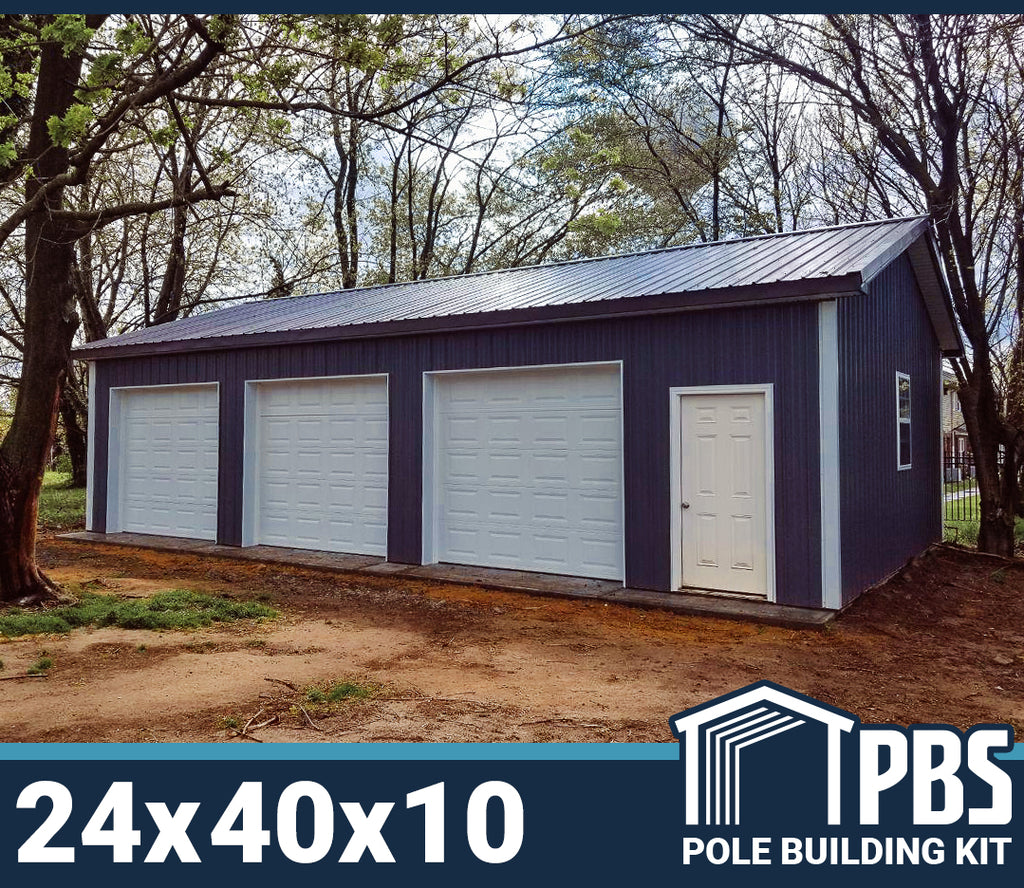

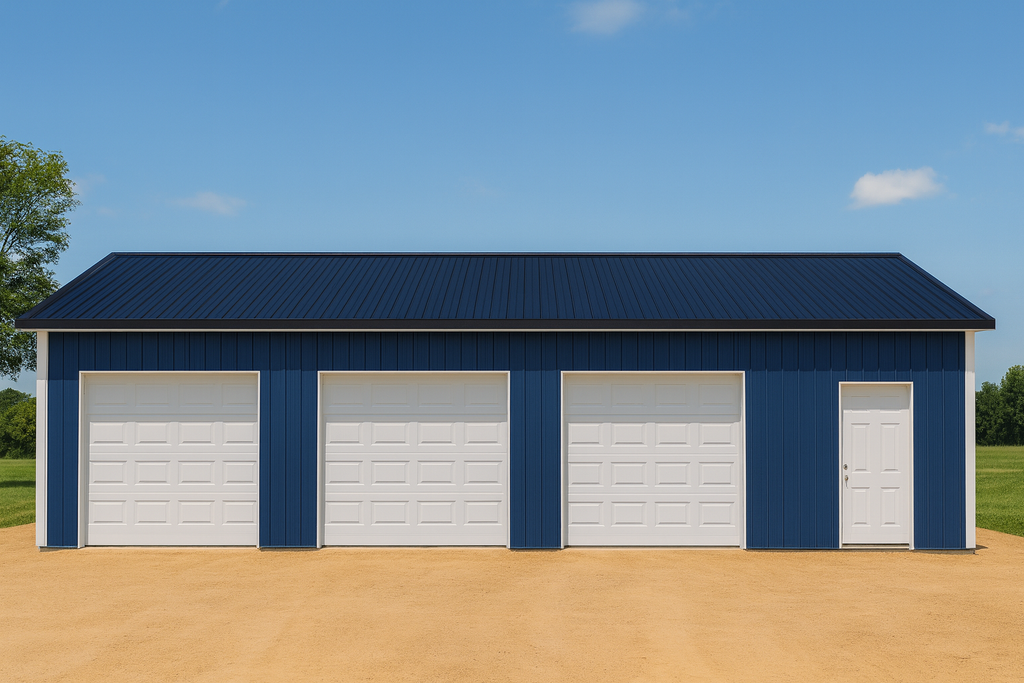

The CHEYENNE 24x40x10 is a complete 3-car garage pole building kit with 960 square feet of floor space and 10-foot sidewalls. Three 8x8 garage door openings give access for three standard passenger vehicles, and four window openings provide natural light across the full width of the building. The 24-foot width keeps this kit well-suited to residential lots while still accommodating three bays side by side.

This is a practical choice for families with multiple vehicles, properties that need covered parking for a mix of cars and smaller equipment, or anyone who wants a three-bay garage without stepping up to a 30-foot-wide footprint.

All structural framing, G-Rib 29-gauge steel roofing and siding, ThermaGuard moisture barrier, fasteners, and trim are included. CAD drawings and engineer-stamped truss certification (when required) come with the kit for your permit application.

Key Features

• Three 8x8 Garage Door Openings: Fits three standard passenger vehicles side by side within a 24-foot-wide building.
• Four Window Openings: Natural light across the full interior width, useful for storage visibility and general use.
• 960 Square Feet: Three bays in a 24x40 footprint, well-proportioned for residential lots.
• G-Rib 29-Gauge Steel: High-quality painted steel roofing and siding with a 40-year finish warranty.
• ThermaGuard Moisture Barrier: Installed on the roof to reduce moisture-related issues over time.

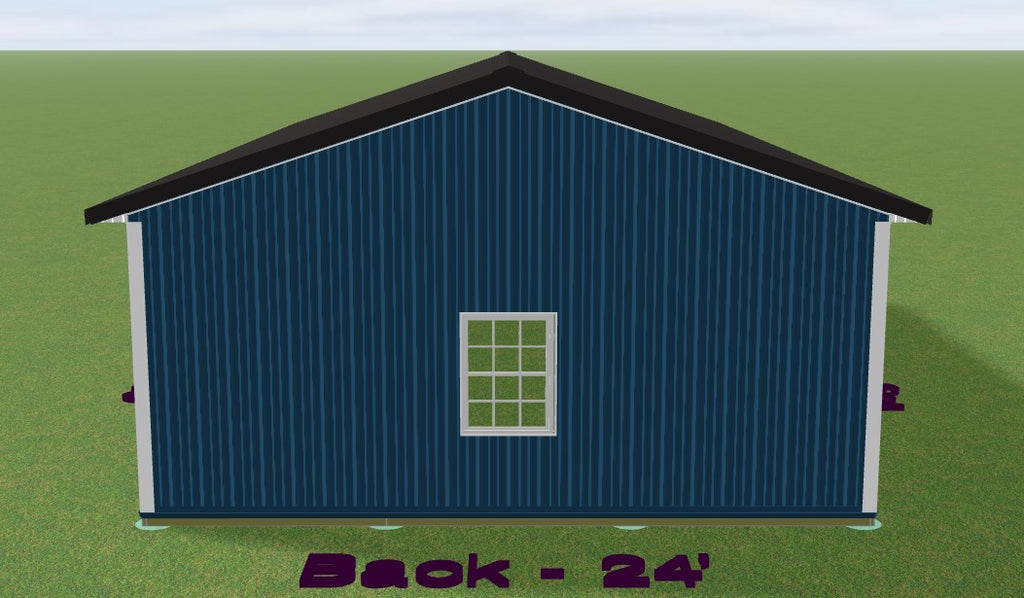

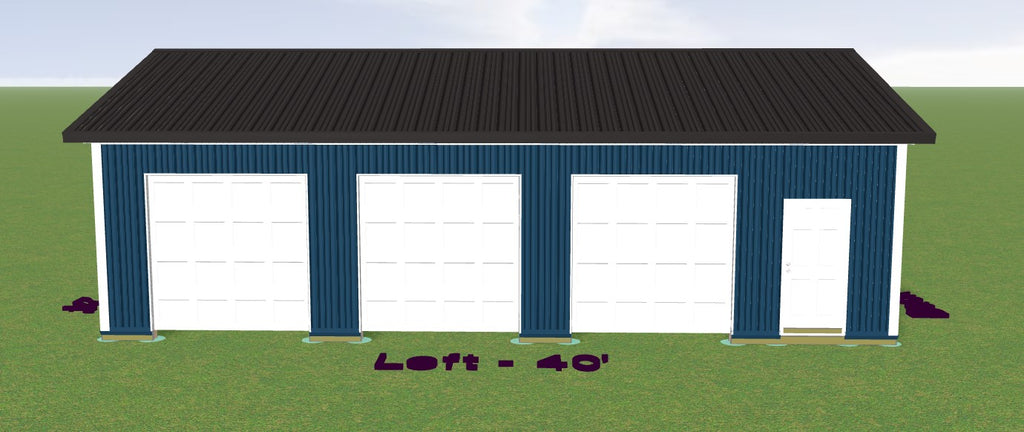

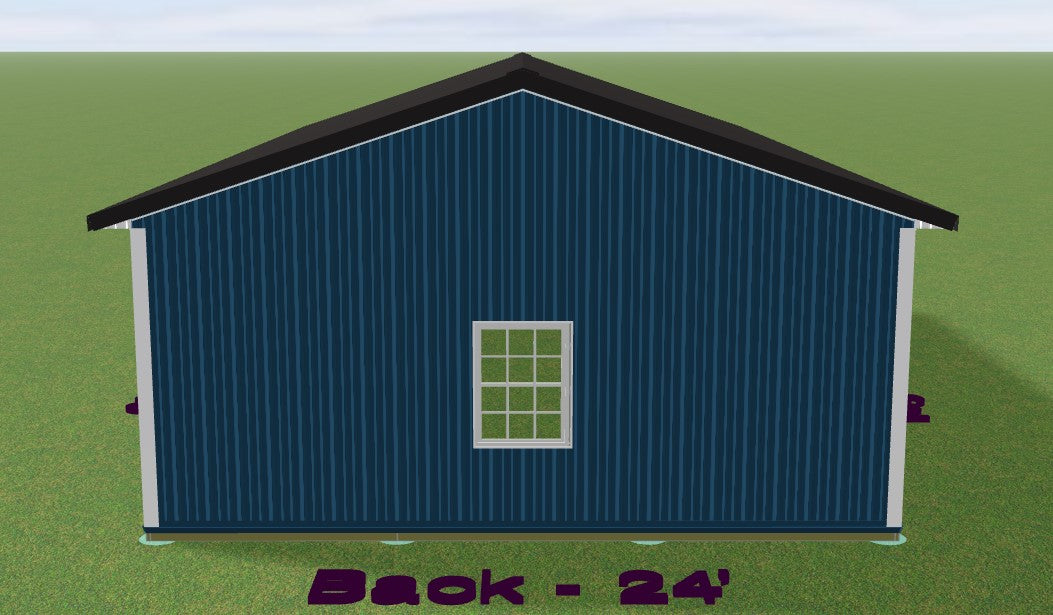

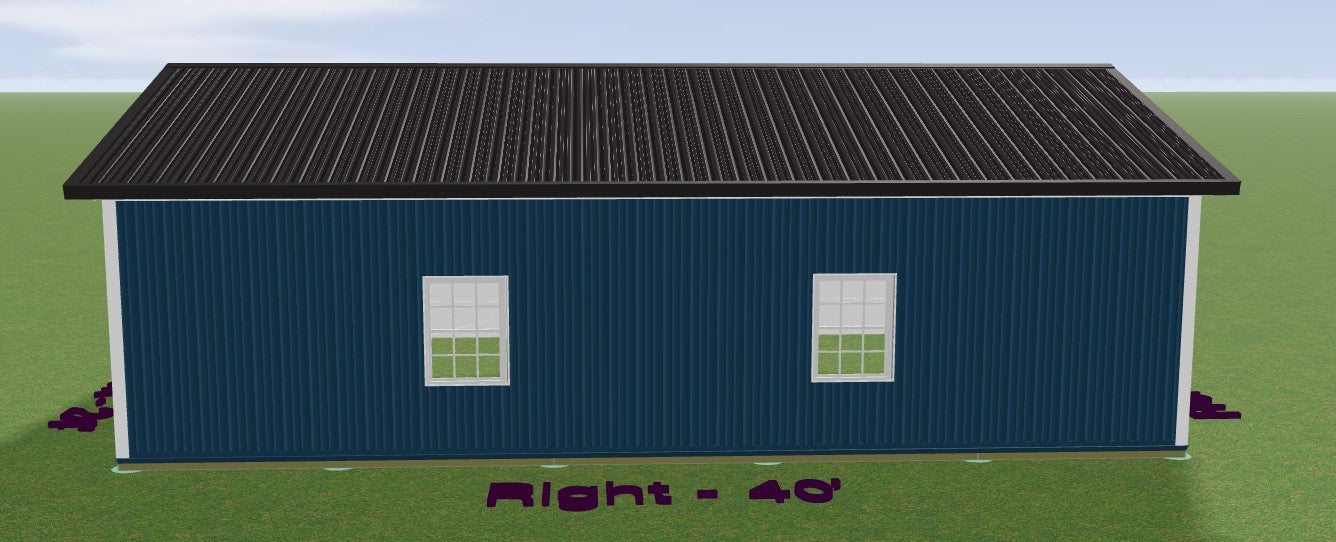

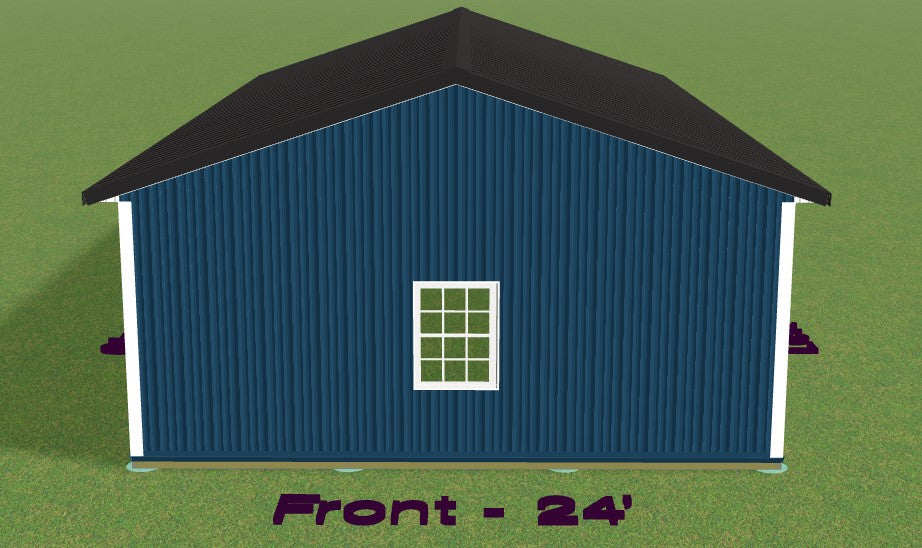

• CAD Drawings Included: Elevation and post location drawings ready for your local building permit application.
• 4-Sided Soffit: 12-inch overhang with soffit on all four sides for a clean, finished exterior.

Specifications

• Size: 24 x 40 x 10 (960 sq ft)
• Roof Pitch: 4/12 Standard Truss
• Garage Door Openings: (3) 8 ft x 8 ft
• Personnel Door Opening: (1) 3'0" x 6'8"
• Windows: (4) openings
• Overhang: 12" with soffit on all 4 sides
• Roofing and Siding: G-Rib 29 ga. painted steel
• Warranty: 40-Year Painted Finish Warranty
• Moisture Barrier: ThermaGuard for roof
• Fasteners: All necessary metal fasteners included
• Delivery: Included to AL, CT, DE, GA, IL, IN, KY, MD, MA, MI, MN, MS, NJ, NY, NC, OH, PA, RI, SC, TN, VA, WV, WI

You Provide

• Tools and labor (yourself and a helper or two)
• Any required building permits
• Site survey and location prep
• Sakrete/Quikrete dry-pour concrete (not included)
• Framing nails (not included)

Material Checklist

• 4x6 or GluLam posts spaced 8 ft on center
• Pressure-treated 2x6 skirtboard
• 2x4 purlins and side girts, spaced 2 ft on center
• 4/12 pitch trusses, engineered and spaced 4 ft on center
• Painted screws, hurricane ties, Simpson H2.5A rafter ties
• Full metal trim package: ridge cap, rake, drip edge, fascia, J-channel, overhead door trim, and more

Please note: Upon delivery, please inspect materials immediately. Notify PBS Direct within 48 hours if anything is missing or damaged.

Quality and Warranty

PBS Direct warrants all materials against structural or workmanship defects. Improper handling or installation voids the warranty. Damaged deliveries must be reported within 48 hours of receipt for replacement.

Why Choose PBS Direct

• Engineered designs
• Delivered directly to your job site
• Backed by professional CAD drawings and support
• Built to last with industry-leading materials

The CHEYENNE 24x40x10 is a straightforward 3-car garage in a compact footprint. If three bays are the priority and lot width is a consideration, this kit delivers that capacity within a 24-foot span.

Deposit note: A $1,250 non-refundable deposit is required to receive CAD drawings. Adjustments for permits will be made as needed. Balance is due before materials are ordered. A 1.5% handling fee applies when paying by card. For delivery outside the listed states, please call for pricing.
