The REDWOOD Pole Building Kit

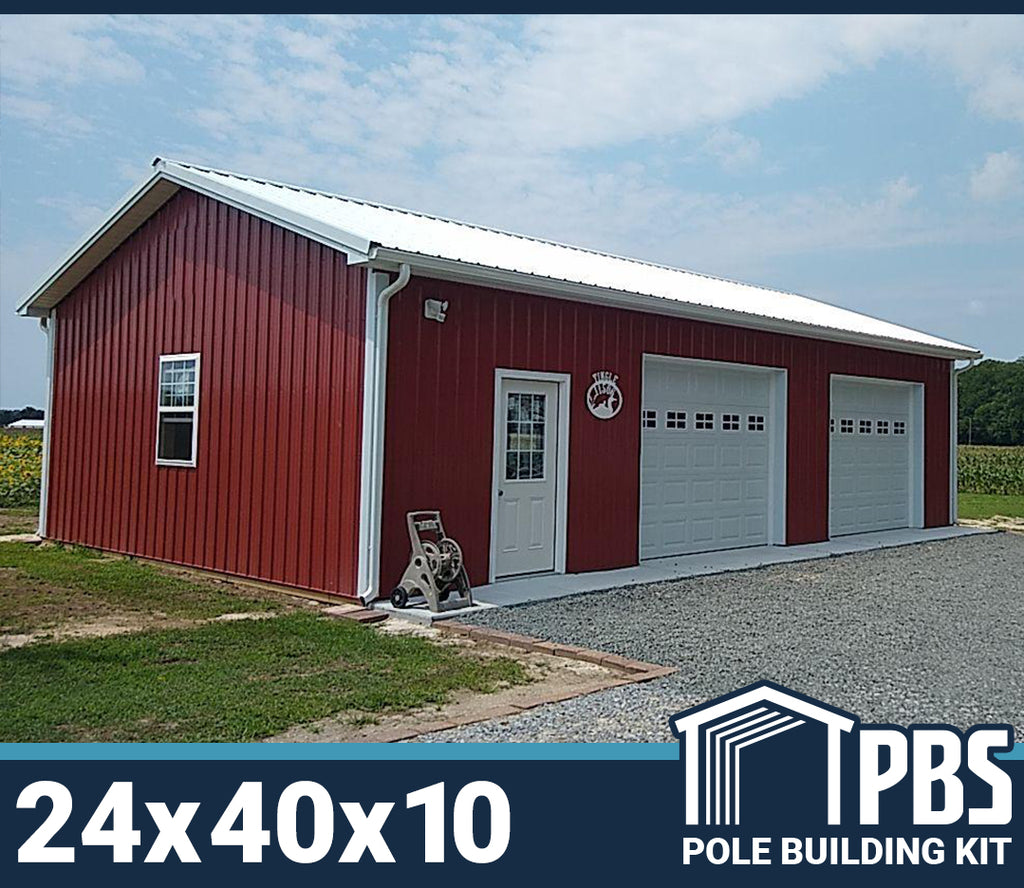

The REDWOOD 24x40x10 is a complete 2-car garage with shop space pole building kit featuring wide 12x8 garage door openings. At 960 square feet with a 24-foot width and 40-foot depth, this kit is similar in footprint to the SILVERTON, but with notably wider doors that provide better access for wider vehicles, trailers, and equipment.

The two 12x8 openings are 50% wider than a standard 8-foot door, making them suitable for trucks with wide load, side-by-side UTVs, or any vehicle where door width is the limiting factor. The 40-foot depth leaves meaningful floor space behind the vehicles for shop use, storage, or general workspace.

All structural framing, G-Rib 29-gauge steel roofing and siding, ThermaGuard moisture barrier, fasteners, and trim are included. CAD drawings and engineer-stamped truss certification (when required) come with the kit for your permit application.

Key Features

• Two 12x8 Wide Garage Door Openings: 50% wider than a standard 8-foot door, accommodating wider vehicles, trailers, and equipment with ease.
• Shop Space Behind the Bays: 40-foot depth provides floor area for a workbench, tools, and storage behind the parked vehicles.
• 960 Square Feet: Same efficient 24x40 footprint as the SILVERTON, with a wider door configuration.
• G-Rib 29-Gauge Steel: High-quality painted steel roofing and siding with a 40-year finish warranty.
• ThermaGuard Moisture Barrier: Installed on the roof to reduce moisture-related issues over time.

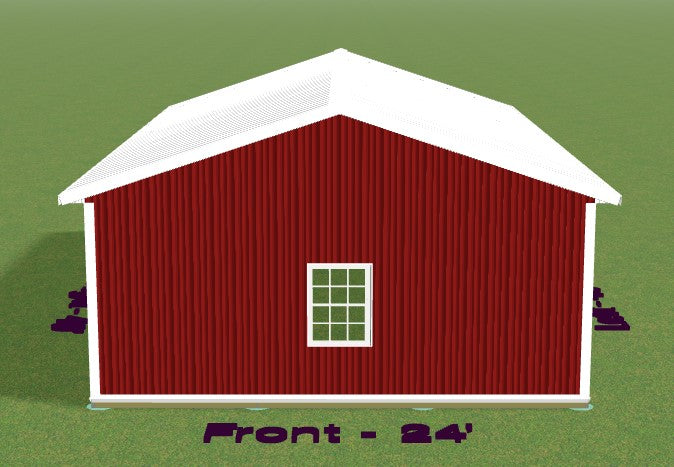

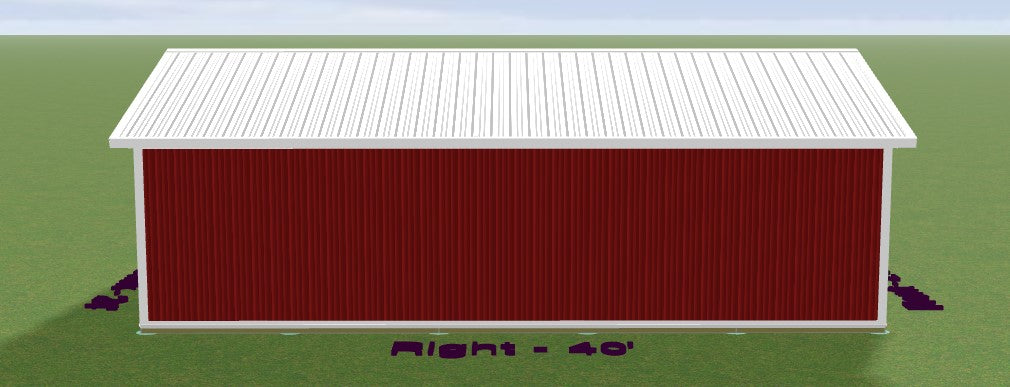

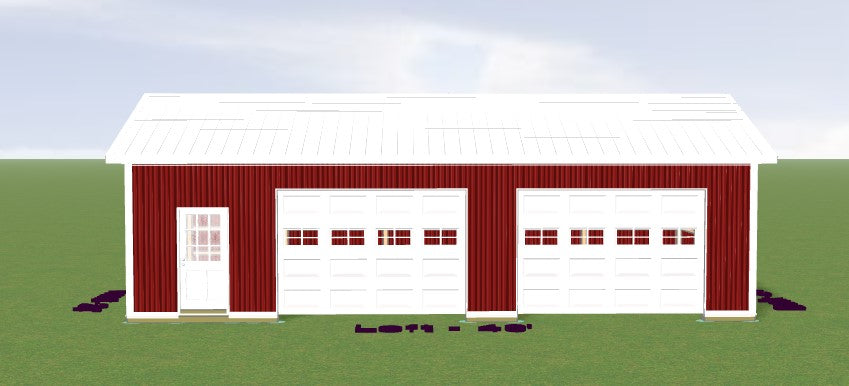

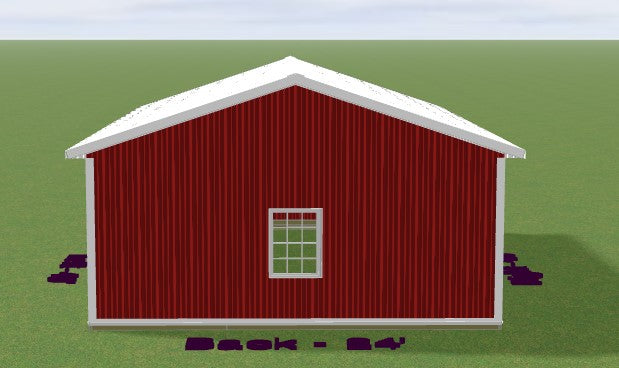

• CAD Drawings Included: Elevation and post location drawings ready for your local building permit application.
• 4-Sided Soffit: 12-inch overhang with soffit on all four sides.

Specifications

• Size: 24 x 40 x 10 (960 sq ft)
• Roof Pitch: 4/12 Standard Truss
• Garage Door Openings: (2) 12 ft x 8 ft
• Personnel Door Opening: (1) 3'0" x 6'8"
• Windows: (2) openings
• Overhang: 12" with soffit on all 4 sides
• Roofing and Siding: G-Rib 29 ga. painted steel
• Warranty: 40-Year Painted Finish Warranty
• Moisture Barrier: ThermaGuard for roof
• Fasteners: All necessary metal fasteners included
• Delivery: Included to AL, CT, DE, GA, IL, IN, KY, MD, MA, MI, MN, MS, NJ, NY, NC, OH, PA, RI, SC, TN, VA, WV, WI

You Provide

• Tools and labor (yourself and a helper or two)
• Any required building permits
• Site survey and location prep
• Sakrete/Quikrete dry-pour concrete (not included)
• Framing nails (not included)

Material Checklist

• 4x6 or GluLam posts spaced 8 ft on center
• Pressure-treated 2x6 skirtboard
• 2x4 purlins and side girts, spaced 2 ft on center
• 4/12 pitch trusses, engineered and spaced 4 ft on center
• Painted screws, hurricane ties, Simpson H2.5A rafter ties
• Full metal trim package: ridge cap, rake, drip edge, fascia, J-channel, overhead door trim, and more

Please note: Upon delivery, please inspect materials immediately. Notify PBS Direct within 48 hours if anything is missing or damaged.

Quality and Warranty

PBS Direct warrants all materials against structural or workmanship defects. Improper handling or installation voids the warranty. Damaged deliveries must be reported within 48 hours of receipt for replacement.

Why Choose PBS Direct

• Engineered designs
• Delivered directly to your job site
• Backed by professional CAD drawings and support
• Built to last with industry-leading materials

The REDWOOD 24x40x10 is the right choice when door width is a priority. The two 12-foot-wide openings allow wider loads to pass through without the building needing to be wider overall, making it a practical upgrade for the same 24x40 footprint.

Deposit note: A $1,250 non-refundable deposit is required to receive CAD drawings. Adjustments for permits will be made as needed. Balance is due before materials are ordered. A 1.5% handling fee applies when paying by card. For delivery outside the listed states, please call for pricing.
