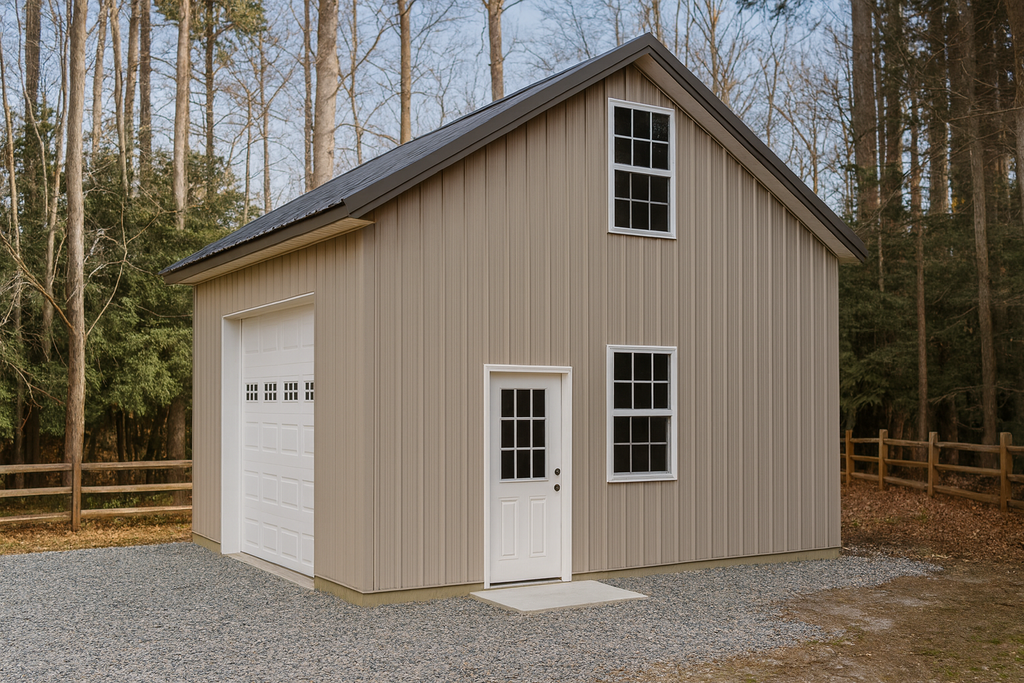

The BOONE Pole Building Kit

The BOONE 20x20x12 is a complete pole building kit for single-car garages, workshops, and storage buildings. With 400 square feet of floor space and 12-foot sidewalls, this kit provides more vertical clearance than a standard 10-foot wall, making it suitable for taller vehicles, storage shelving, or overhead equipment.

The kit includes everything needed for construction: G-Rib 29-gauge metal roofing and siding with a 40-year warranty, a ThermaGuard moisture barrier, all structural framing materials, fasteners, and a full metal trim package covering ridge cap, rake, drip edge, fascia, J-channel, and overhead door trim. CAD drawings and engineer-stamped truss certification (when required) are also included.

This kit is suited for residential properties, hobby farms, and small agricultural or commercial builds where a compact, durable structure is needed.

Key Features

• Complete Kit with Full Trim Package: Roofing, siding, framing, fasteners, and a complete metal trim package are all included.

• 12-Foot Sidewalls: Extra vertical clearance compared to a standard 10-foot wall, useful for taller vehicles or storage systems.

• 12x10 Garage Door Opening: Accommodates most full-size vehicles and trucks.

• G-Rib 29-Gauge Steel: High-quality painted steel roofing and siding with a 40-year finish warranty.

• ThermaGuard Moisture Barrier: Installed on the roof to reduce moisture-related issues.

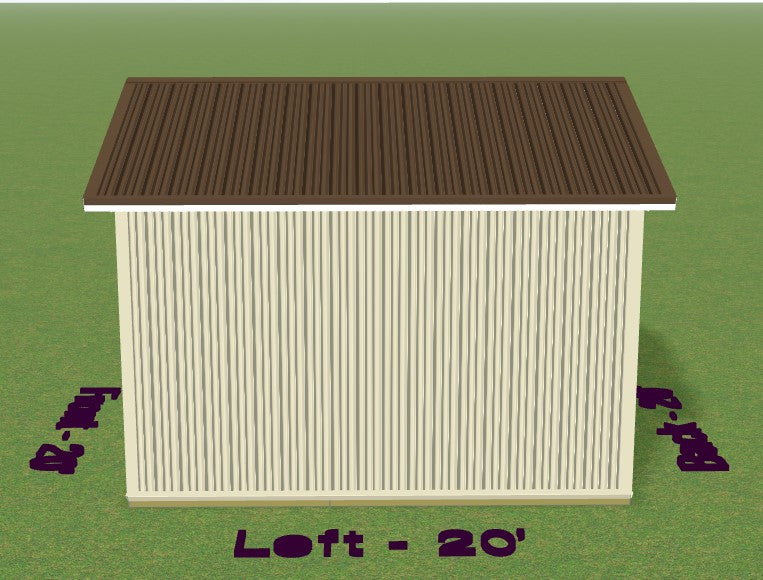

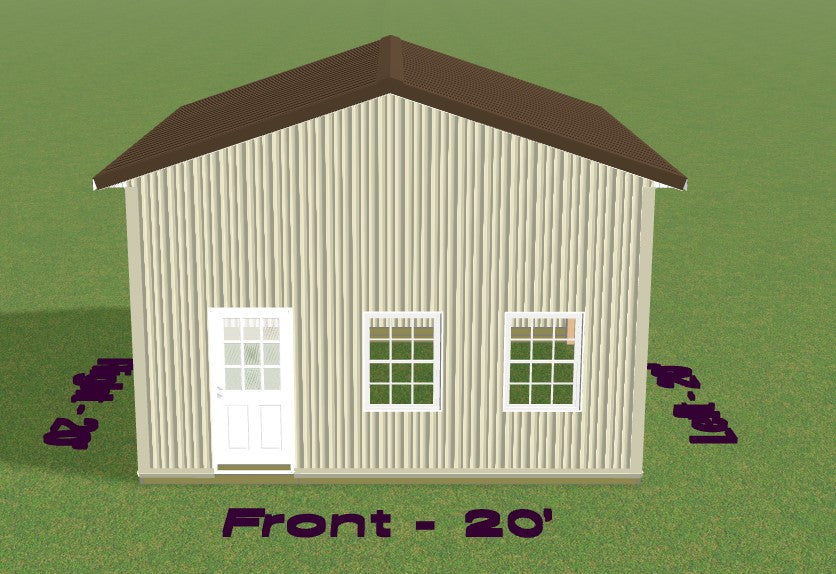

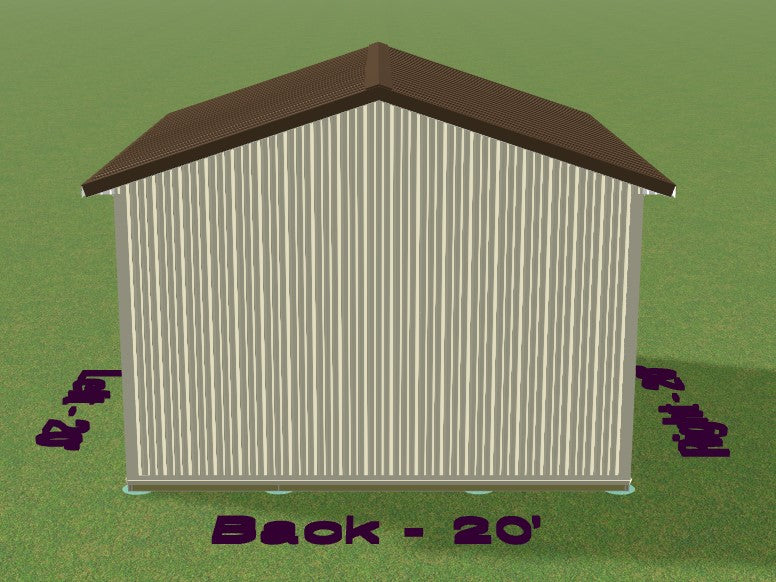

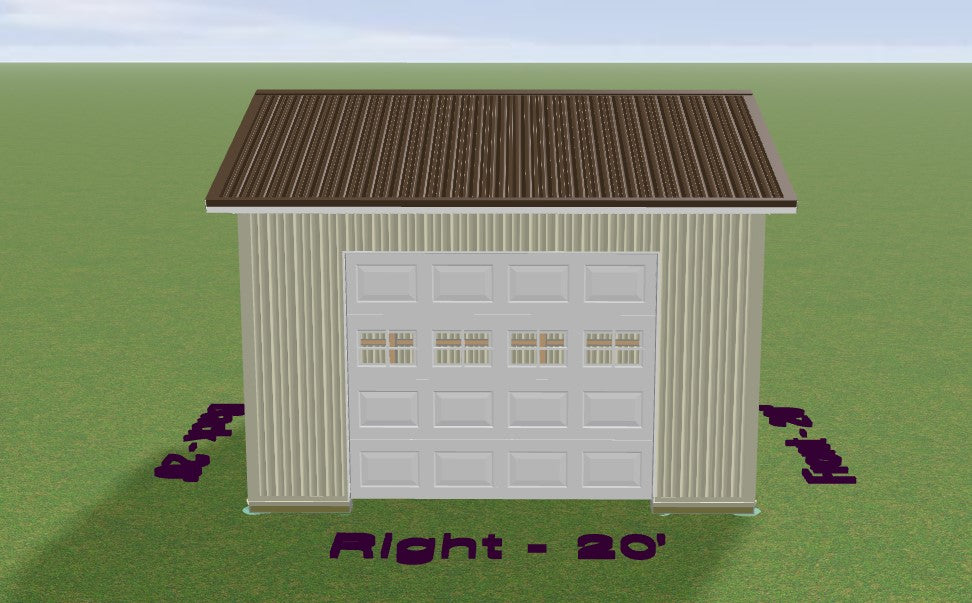

• CAD Drawings Included: Elevation and post location drawings ready for your local building permit application.

• 4-Sided Soffit: 12-inch overhang with soffit on all four sides.



Specifications

• Size: 20 x 20 x 12 (400 sq ft)

• Roof Pitch: 4/12 Standard Truss

• Garage Door Opening: (1) 12 ft x 10 ft

• Personnel Door Opening: (1) 3'0" x 6'8"

• Windows: (2) openings

• Overhang: 12" with soffit on all 4 sides

• Roofing and Siding: G-Rib 29 ga. painted steel

• Warranty: 40-Year Painted Finish Warranty

• Moisture Barrier: ThermaGuard for roof

• Trim Package: Ridge cap, rake, drip edge, fascia, J-channel, overhead door trim

• Fasteners: All necessary metal fasteners included

• Delivery: Included to AL, CT, DE, GA, IL, IN, KY, MD, MA, MI, MN, MS, NJ, NY, NC, OH, PA, RI, SC, TN, VA, WV, WI



You Provide

• Tools and labor (yourself and a helper or two)

• Any required building permits

• Site survey and location prep

• Sakrete/Quikrete dry-pour concrete (not included)

• Framing nails (not included)



Material Checklist

• 4x6 or GluLam posts spaced 8 ft on center

• Pressure-treated 2x6 skirtboard

• 2x4 purlins and side girts, spaced 2 ft on center

• 4/12 pitch trusses, engineered and spaced 4 ft on center

• Painted screws, hurricane ties, Simpson H2.5A rafter ties

• Full metal trim package: ridge cap, rake, drip edge, fascia, J-channel, overhead door trim, and more

Please note: Upon delivery, please inspect materials immediately. Notify PBS Direct within 48 hours if anything is missing or damaged.

Quality and Warranty

PBS Direct warrants all materials against structural or workmanship defects. Improper handling or installation voids the warranty. Damaged deliveries must be reported within 48 hours of receipt for replacement.

Why Choose PBS Direct

• Engineered and code-compliant designs

• Delivered directly to your job site

• Backed by professional CAD drawings and support

• Built to last with industry-leading materials

The BOONE 20x20x12 pole building kit is a solid option for anyone who needs a compact, well-built garage or storage building with taller walls. With all materials included and a full metal trim package, this kit is ready to build right from delivery.

Deposit note: A $1,250 non-refundable deposit is required to receive CAD drawings. Adjustments for permits will be made as needed. Balance is due before materials are ordered. A 1.5% handling fee applies when paying by card. For delivery outside the listed states, please call for pricing.
