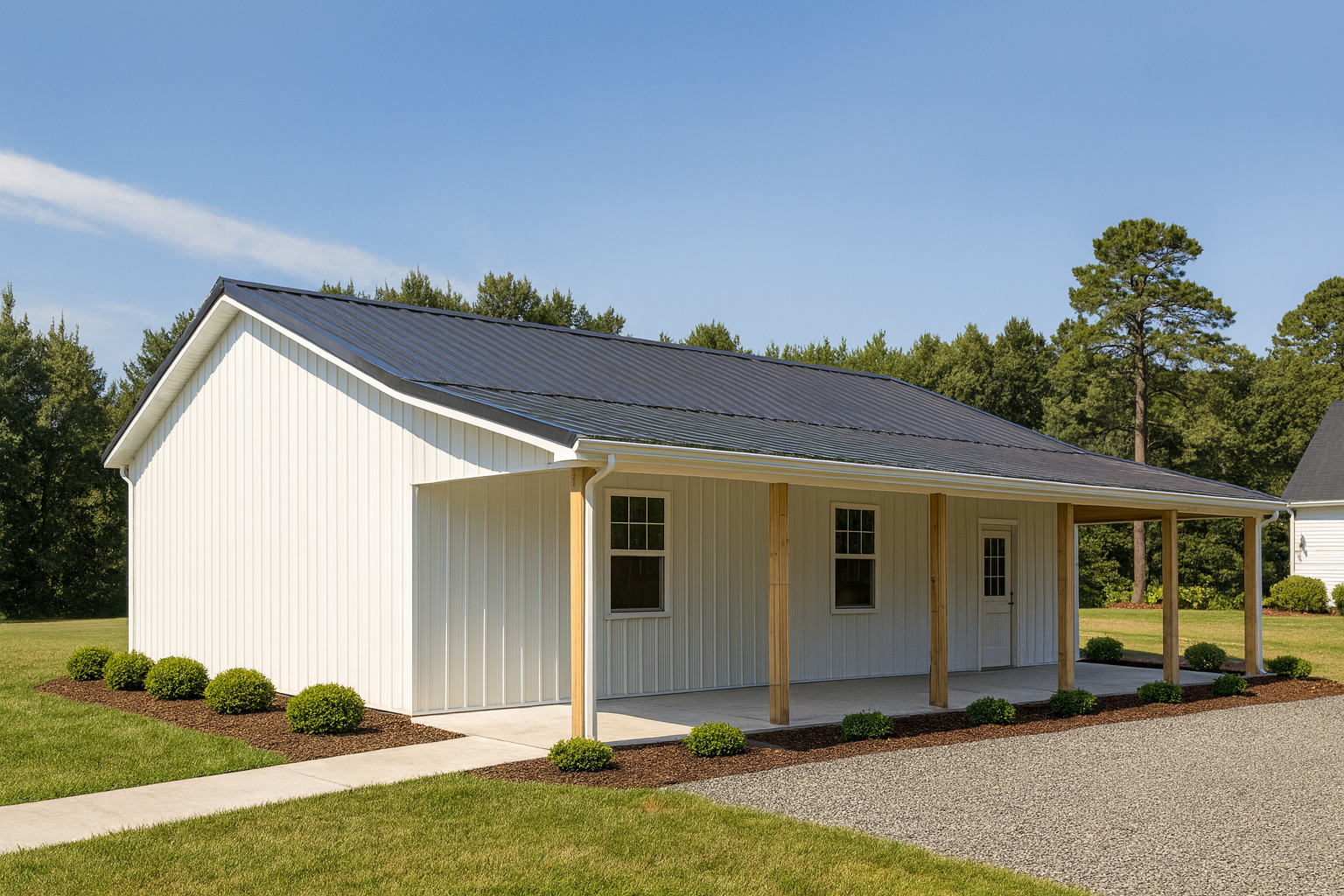

The PIONEER Pole Building Kit

The PIONEER 30x40x10 is a complete hobby building pole building kit that stands apart from standard garage configurations. With 1,200 square feet in the main structure, a front porch, four window openings, and a full 8x40-foot open lean-to, this kit is designed for multi-purpose residential use rather than pure vehicle storage.

The open lean-to runs the full 40-foot length of the building and provides covered outdoor space for equipment, firewood, outdoor seating, or any use that benefits from a sheltered but open-sided area. The front porch adds a welcoming entry to the building. One 8x8 garage door opening provides access for a single vehicle or larger equipment.

All structural framing, G-Rib 29-gauge steel roofing and siding, ThermaGuard moisture barrier, fasteners, and trim are included. CAD drawings and engineer-stamped truss certification (when required) come with the kit for your permit application.

Key Features

• 8x40 Open Lean-To Included: Runs the full length of the building, providing covered outdoor space for equipment, storage, or recreational use.
• Front Porch Included: Covered entry that adds a residential finish to the building and protects the main door from weather.
• Four Window Openings: Natural light throughout the interior, well suited for hobby or workshop use.
• Hobby Building Configuration: Designed for workshop, studio, hobby space, or multi-purpose residential outbuilding use.
• G-Rib 29-Gauge Steel: High-quality painted steel roofing and siding with a 40-year finish warranty.
• ThermaGuard Moisture Barrier: Installed on the roof to reduce moisture-related issues over time.

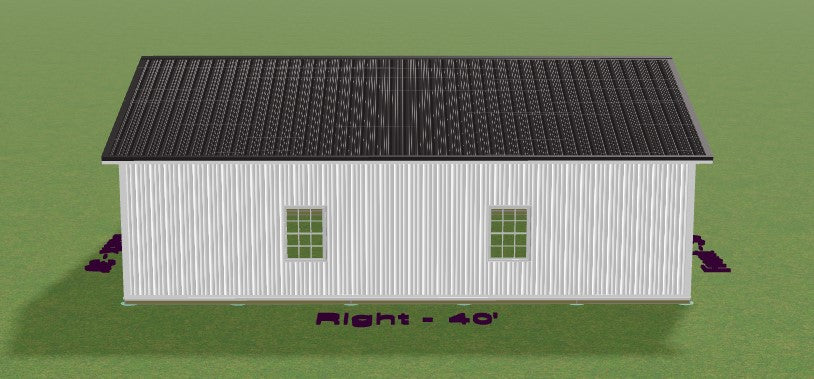

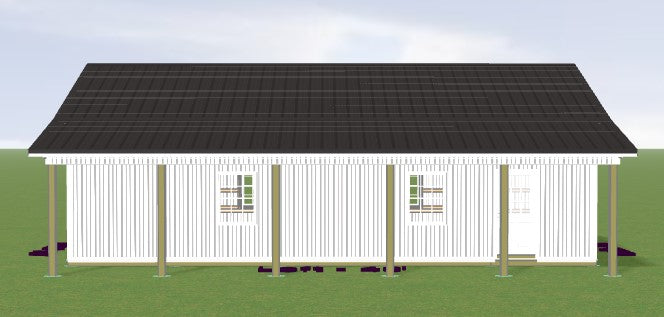

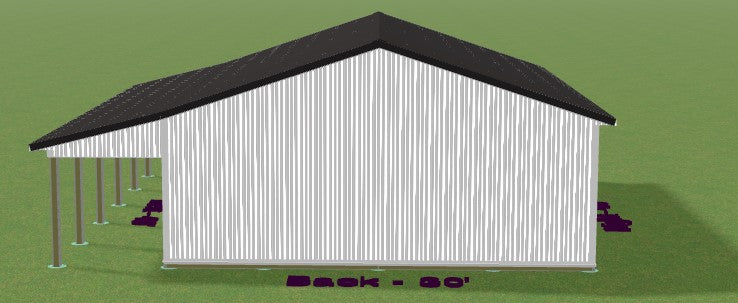

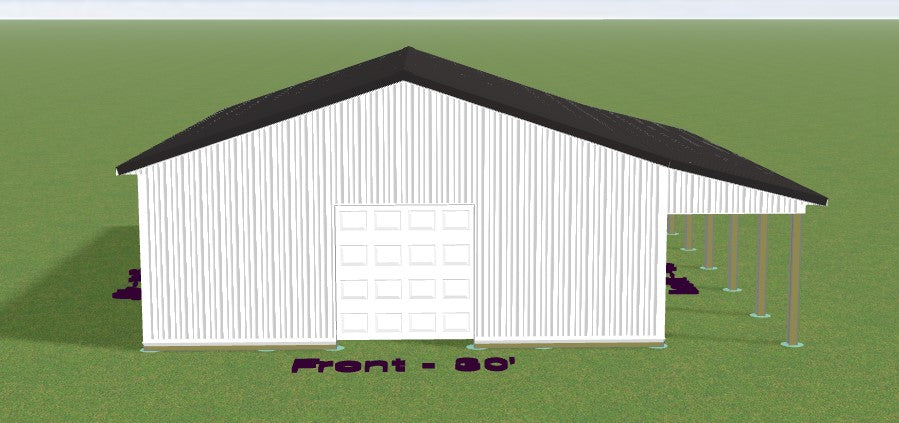

• CAD Drawings Included: Elevation and post location drawings ready for your local building permit application.

Specifications

• Size: 30 x 40 x 10 (1,200 sq ft main structure)
• Roof Pitch: 4/12 Standard Truss
• Lean-To: (1) 8 ft x 40 ft open lean-to (included as pictured)
• Garage Door Opening: (1) 8 ft x 8 ft
• Personnel Door Opening: (1) 3'0" x 6'8"
• Windows: (4) openings
• Porch: Front porch included
• Overhang: 12" with soffit on all 4 sides
• Roofing and Siding: G-Rib 29 ga. painted steel
• Warranty: 40-Year Painted Finish Warranty
• Moisture Barrier: ThermaGuard for roof
• Fasteners: All necessary metal fasteners included
• Delivery: Included to AL, CT, DE, GA, IL, IN, KY, MD, MA, MI, MN, MS, NJ, NY, NC, OH, PA, RI, SC, TN, VA, WV, WI

You Provide

• Tools and labor (yourself and a helper or two)
• Any required building permits
• Site survey and location prep
• Sakrete/Quikrete dry-pour concrete (not included)
• Framing nails (not included)

Material Checklist

• 4x6 or GluLam posts spaced 8 ft on center
• Pressure-treated 2x6 skirtboard
• 2x4 purlins and side girts, spaced 2 ft on center
• 4/12 pitch trusses, engineered and spaced 4 ft on center
• Painted screws, hurricane ties, Simpson H2.5A rafter ties
• Full metal trim package: ridge cap, rake, drip edge, fascia, J-channel, overhead door trim, and more

Please note: Upon delivery, please inspect materials immediately. Notify PBS Direct within 48 hours if anything is missing or damaged.

Quality and Warranty

PBS Direct warrants all materials against structural or workmanship defects. Improper handling or installation voids the warranty. Damaged deliveries must be reported within 48 hours of receipt for replacement.

Why Choose PBS Direct

• Engineered designs
• Delivered directly to your job site
• Backed by professional CAD drawings and support
• Built to last with industry-leading materials

The PIONEER 30x40x10 is the right kit for anyone who needs a hobby building, workshop, or multi-purpose outbuilding rather than a pure garage. The lean-to and front porch distinguish it from standard garage kits and make it a practical choice for residential properties where the building serves more than just vehicle storage.

Deposit note: A $1,250 non-refundable deposit is required to receive CAD drawings. Adjustments for permits will be made as needed. Balance is due before materials are ordered. A 1.5% handling fee applies when paying by card. For delivery outside the listed states, please call for pricing.
