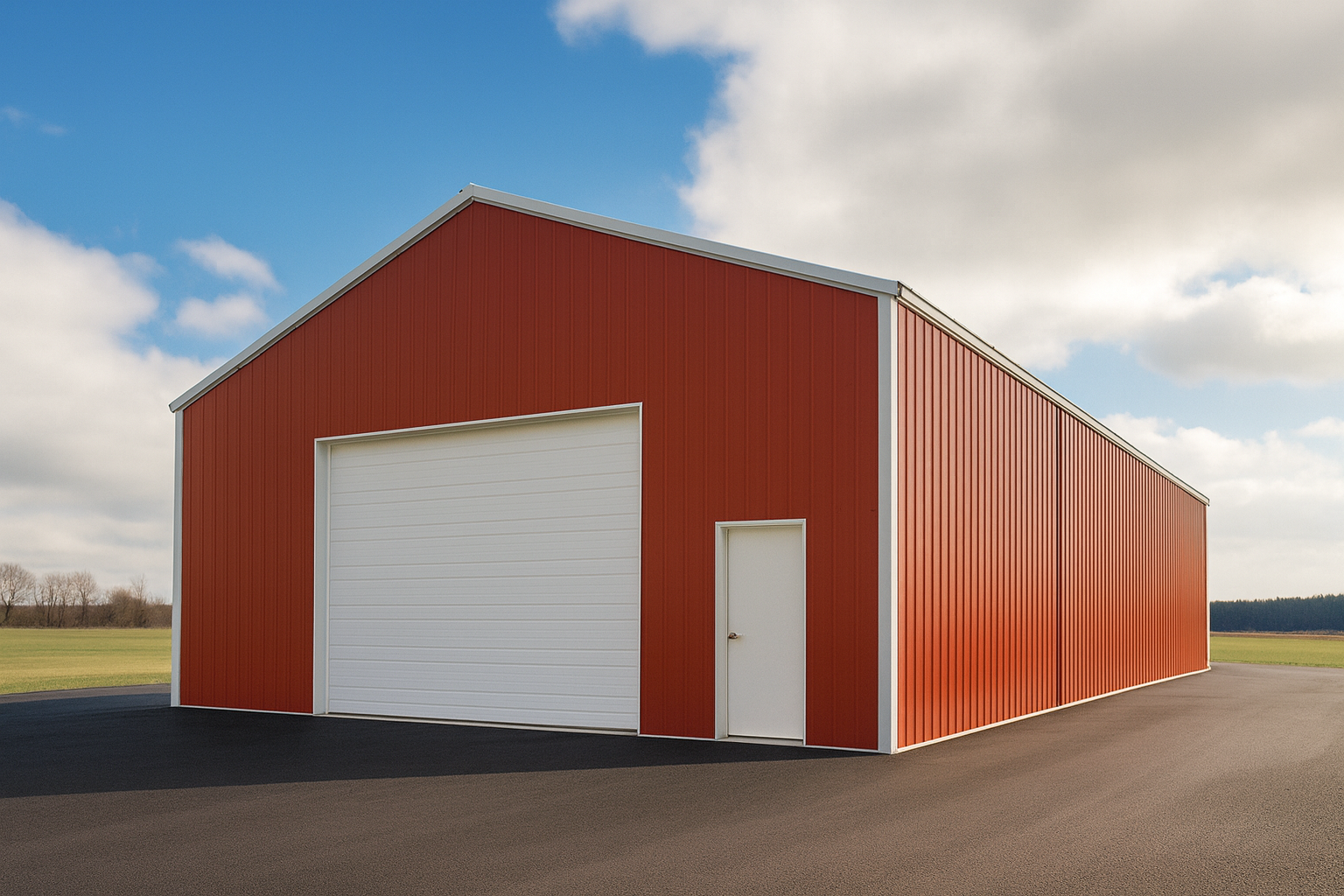

The MONROE Pole Building Kit

The MONROE 40x80x16 is a complete pole building kit for large-scale warehouse, agricultural, and commercial applications. With 3,200 square feet of open floor space and 16-foot sidewalls, this is one of the largest kits in the PBS Direct range. The 14x14 garage door opening accommodates commercial vehicles, utility equipment, and a wide range of agricultural machinery, though some oversized farm equipment may require larger door openings

At 80 feet of depth and 40 feet of width, the MONROE provides the footprint needed for fleet parking, equipment storage, hay storage, or commercial operations that require substantial covered space. Four window openings provide natural light across the wide interior.

All structural framing, G-Rib 29-gauge steel roofing and siding, ThermaGuard moisture barrier, fasteners, and trim are included. CAD drawings and engineer-stamped truss certification (when required) come with the kit for your permit application.

Key Features

• 3,200 Square Feet: 40x80 footprint provides the floor area needed for warehouse operations, fleet storage, and large agricultural buildings.
• 16-Foot Sidewalls: Clearance for the tallest commercial vehicles, combine harvesters, semi-trailers, and overhead crane systems.
• 14x14 Garage Door Opening: The largest standard door opening in the PBS Direct kit range, suited for RV Storage, heavy equipment and agricultural machinery.
• G-Rib 29-Gauge Steel: High-quality painted steel roofing and siding with a 40-year finish warranty.
• ThermaGuard Moisture Barrier: Installed on the roof to reduce moisture-related issues over time.

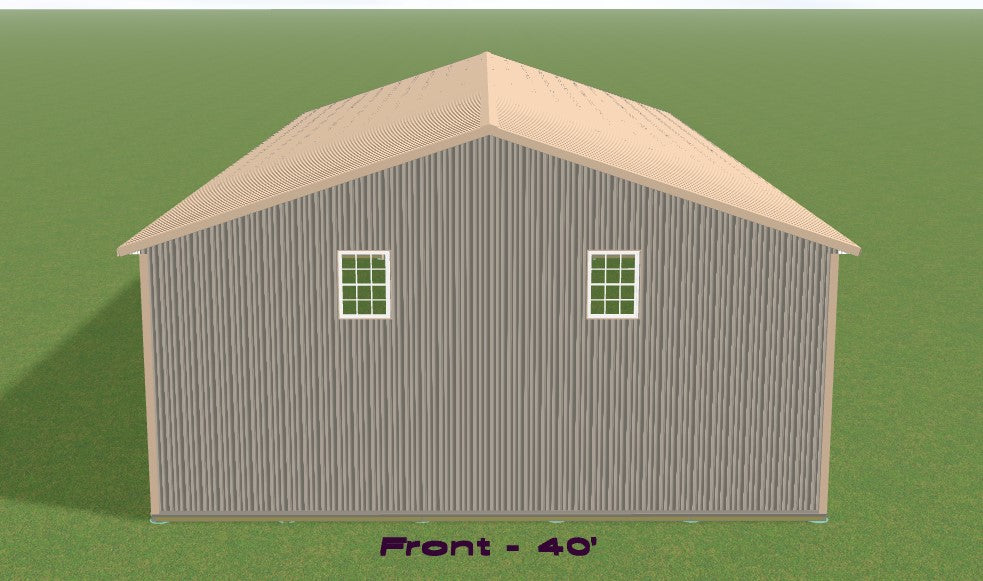

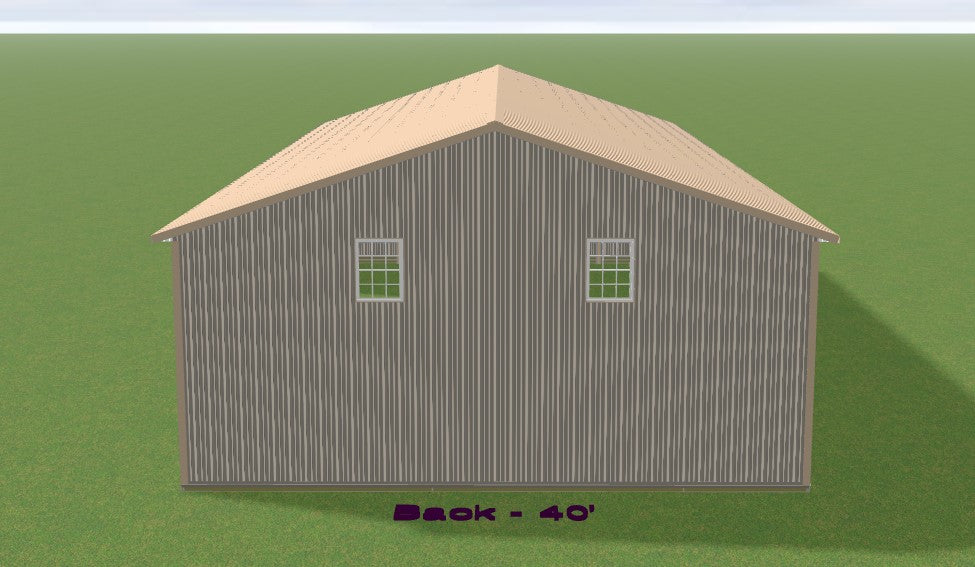

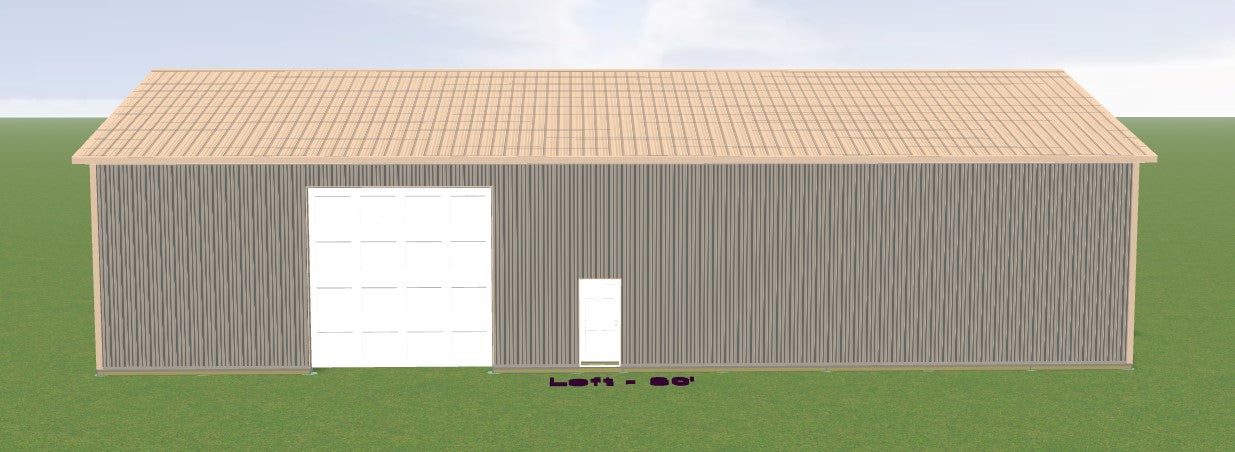

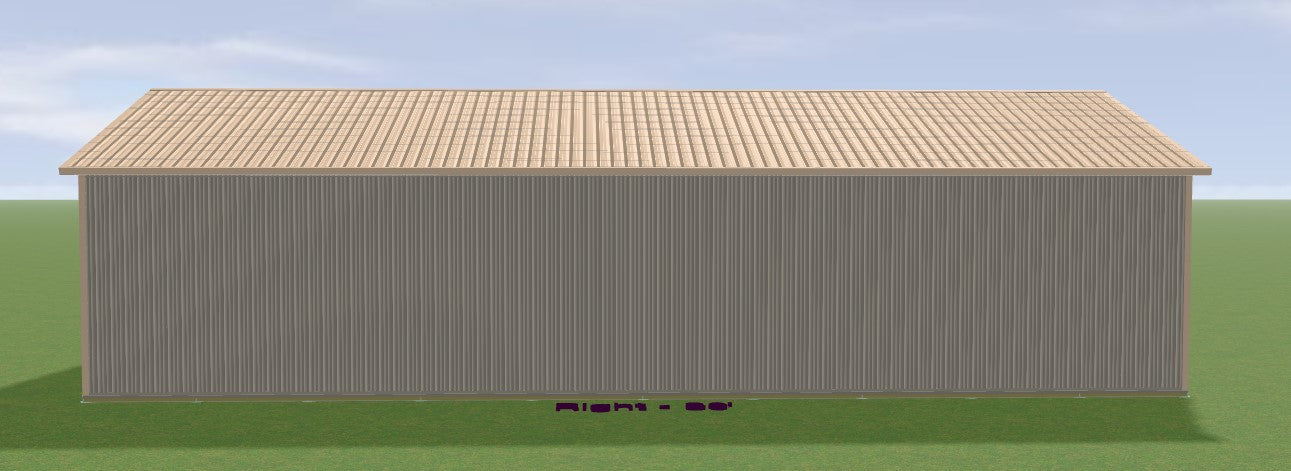

• CAD Drawings Included: Elevation and post location drawings ready for your local building permit application.
• 4-Sided Soffit: 12-inch overhang with soffit on all four sides.

Specifications

• Size: 40 x 80 x 16 (3,200 sq ft)
• Roof Pitch: 4/12 Standard Truss
• Garage Door Opening: (1) 14 ft x 14 ft
• Personnel Door Opening: (1) 3'0" x 6'8"
• Windows: (4) openings
• Sidewall Height: 16 feet
• Overhang: 12" with soffit on all 4 sides
• Roofing and Siding: G-Rib 29 ga. painted steel
• Warranty: 40-Year Painted Finish Warranty
• Moisture Barrier: ThermaGuard for roof
• Fasteners: All necessary metal fasteners included
• Delivery: Included to AL, CT, DE, GA, IL, IN, KY, MD, MA, MI, MN, MS, NJ, NY, NC, OH, PA, RI, SC, TN, VA, WV, WI

Ideal Use Cases

• Commercial and light industrial warehouse storage
• Agricultural equipment storage
• Fleet vehicle parking and maintenance facilities
• Semi-trailer and heavy equipment sheltering
• Large-scale workshop or fabrication facility
• Equestrian facilities and large animal housing

You Provide

• Tools and labor (yourself and a helper or two)
• Any required building permits
• Site survey and location prep
• Sakrete/Quikrete dry-pour concrete (not included)
• Framing nails (not included)

Material Checklist

• 4x6 or GluLam posts spaced 8 ft on center
• Pressure-treated 2x6 skirtboard
• 2x4 purlins and side girts, spaced 2 ft on center
• 4/12 pitch trusses, engineered and spaced 4 ft on center
• Painted screws, hurricane ties, Simpson H2.5A rafter ties
• Full metal trim package: ridge cap, rake, drip edge, fascia, J-channel, overhead door trim, and more

Please note: Upon delivery, please inspect materials immediately. Notify PBS Direct within 48 hours if anything is missing or damaged.

Quality and Warranty

PBS Direct warrants all materials against structural or workmanship defects. Improper handling or installation voids the warranty. Damaged deliveries must be reported within 48 hours of receipt for replacement.

Why Choose PBS Direct

• Engineered designs
• Delivered directly to your job site
• Backed by professional CAD drawings and support
• Built to last with industry-leading materials

The MONROE 40x80x16 is built for property owners and businesses that need a large, durable, code-compliant building delivered to their site. With 3,200 sq ft, 16-foot clearance, and a 14x14 door opening, this kit is sized for applications where smaller pole buildings fall short.

Deposit note: A $1,250 non-refundable deposit is required to receive CAD drawings. Adjustments for permits will be made as needed. Balance is due before materials are ordered. A 1.5% handling fee applies when paying by card. For delivery outside the listed states, please call for pricing.
