The YOSEMITE Pole Building Kit

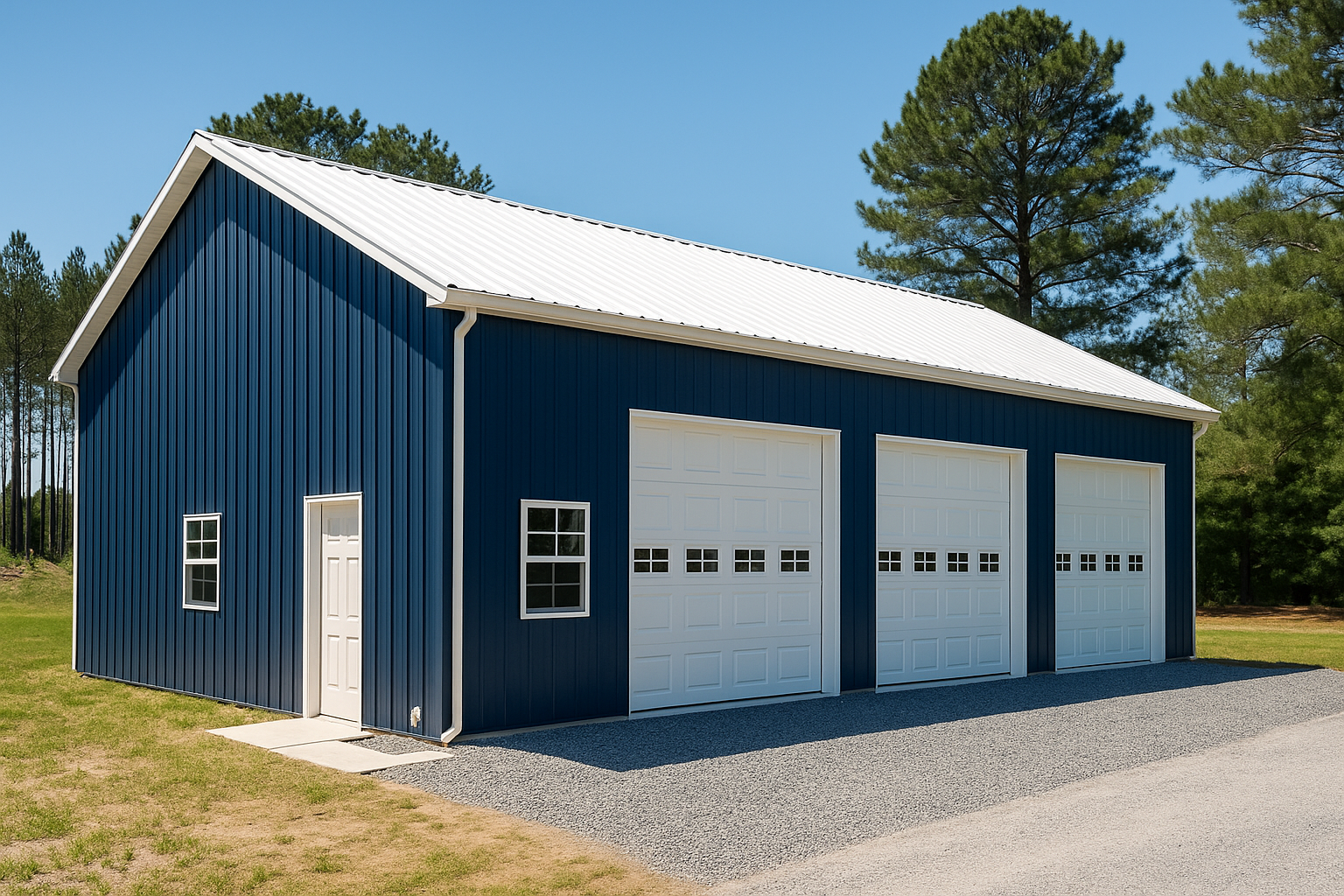

The YOSEMITE 30x50x14 is a complete pole building kit for those who need maximum space and clearance. At 1,500 square feet with 14-foot sidewalls, this kit is sized for applications where standard garage kits fall short. Three 12x12 garage door openings allow easy access for RVs, motorhomes, large trucks, boat trailers, and commercial or agricultural equipment.

The extra floor depth of 50 feet, combined with the tall 14-foot walls, makes this kit a practical choice for fabrication shops, fleet storage, agricultural machinery buildings, and serious workshop setups. Four window openings are included for natural light and ventilation.

All structural framing, G-Rib 29-gauge steel roofing and siding, ThermaGuard moisture barrier, fasteners, and trim are included. CAD drawings and engineer-stamped truss certification (when required) come with the kit for your permit application.

Key Features

• Three 12x12 Garage Door Openings: The largest standard door openings in the PBS Direct kit range. Suited for RVs, motorhomes, and oversized vehicles.

• 14-Foot Sidewalls: Provides clearance for tall equipment, vehicle lifts, and overhead storage systems.

• 1,500 Square Feet: 50-foot depth gives significantly more usable floor space than a standard 40-foot building.

• G-Rib 29-Gauge Steel: High-quality painted steel roofing and siding with a 40-year finish warranty.

• ThermaGuard Moisture Barrier: Installed on the roof to reduce moisture-related issues over time.

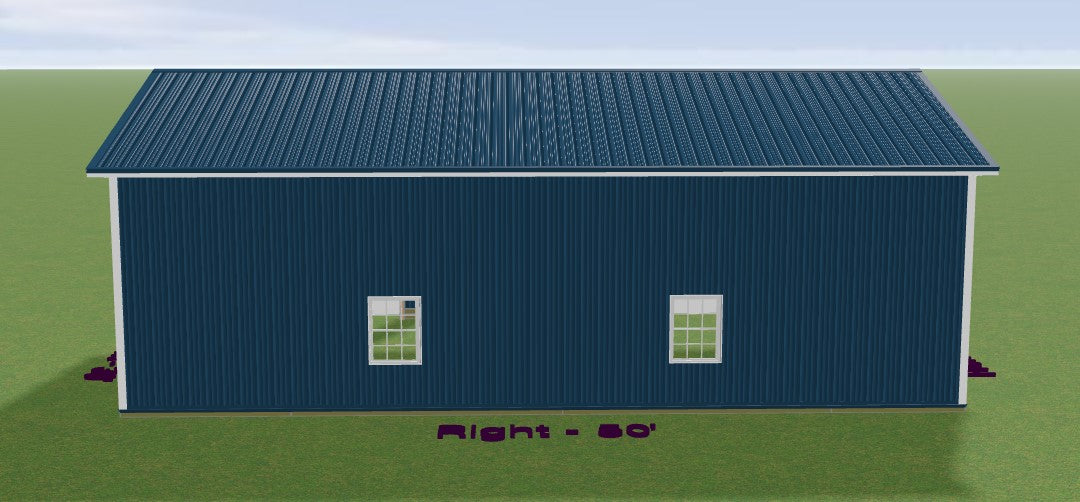

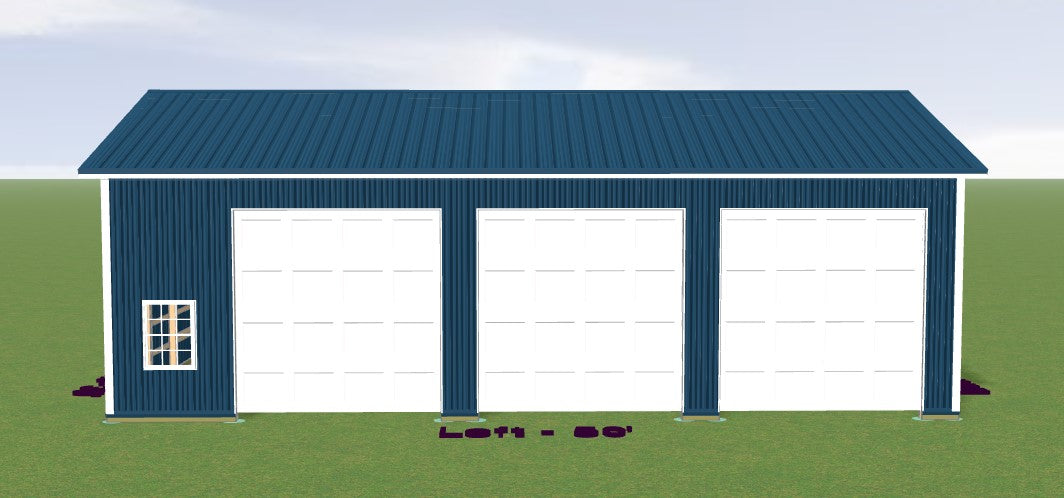

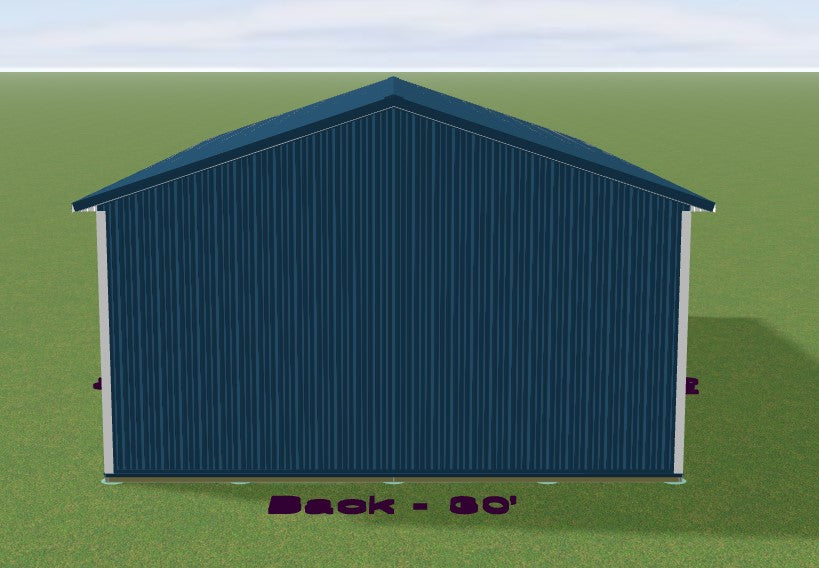

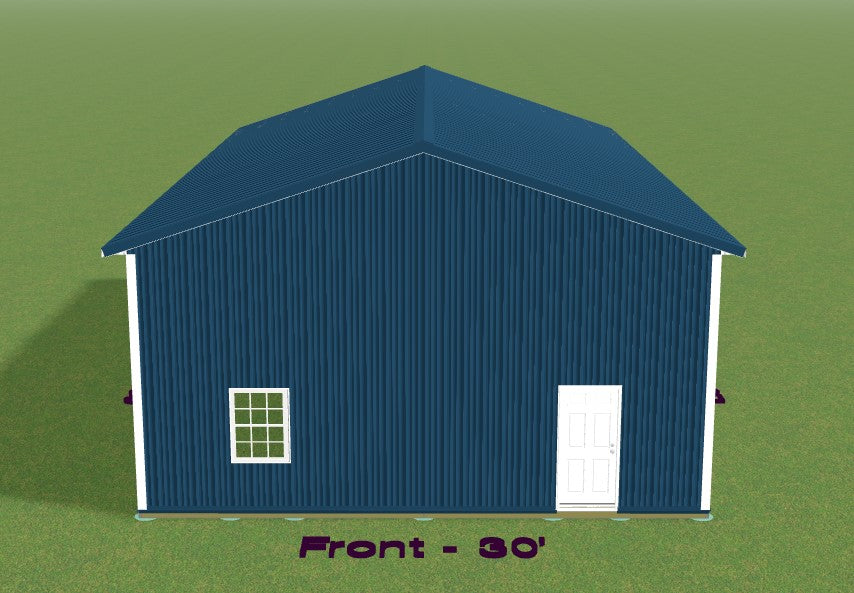

• CAD Drawings Included: Elevation and post location drawings ready for your local building permit application.

• 4-Sided Soffit: 12-inch overhang with soffit on all four sides.



Specifications

• Size: 30 x 50 x 14 (1,500 sq ft)

• Roof Pitch: 4/12 Standard Truss

• Garage Door Openings: (3) 12 ft x 12 ft

• Personnel Door Opening: (1) 3'0" x 6'8"

• Windows: (4) openings

• Sidewall Height: 14 feet

• Overhang: 12" with soffit on all 4 sides

• Roofing and Siding: G-Rib 29 ga. painted steel

• Warranty: 40-Year Painted Finish Warranty

• Moisture Barrier: ThermaGuard for roof

• Fasteners: All necessary metal fasteners included

• Delivery: Included to AL, CT, DE, GA, IL, IN, KY, MD, MA, MI, MN, MS, NJ, NY, NC, OH, PA, RI, SC, TN, VA, WV, WI



You Provide

• Tools and labor (yourself and a helper or two)

• Any required building permits

• Site survey and location prep

• Sakrete/Quikrete dry-pour concrete (not included)

• Framing nails (not included)



Material Checklist

• 4x6 or GluLam posts spaced 8 ft on center

• Pressure-treated 2x6 skirtboard

• 2x4 purlins and side girts, spaced 2 ft on center

• 4/12 pitch trusses, engineered and spaced 4 ft on center

• Painted screws, hurricane ties, Simpson H2.5A rafter ties

• Full metal trim package: ridge cap, rake, drip edge, fascia, J-channel, overhead door trim, and more

Please note: Upon delivery, please inspect materials immediately. Notify PBS Direct within 48 hours if anything is missing or damaged.

Quality and Warranty

PBS Direct warrants all materials against structural or workmanship defects. Improper handling or installation voids the warranty. Damaged deliveries must be reported within 48 hours of receipt for replacement.

Why Choose PBS Direct

• Engineered designs

• Delivered directly to your job site

• Backed by professional CAD drawings and support

• Built to last with industry-leading materials

The YOSEMITE 30x50x14 pole building kit is the right choice for property owners who need a large, tall building for RVs, commercial vehicles, agricultural equipment, or a professional-grade workshop. With three oversized door openings and 14-foot walls, this kit handles applications that smaller buildings cannot.

Deposit note: A $1,250 non-refundable deposit is required to receive CAD drawings. Adjustments for permits will be made as needed. Balance is due before materials are ordered. A 1.5% handling fee applies when paying by card. For delivery outside the listed states, please call for pricing.
