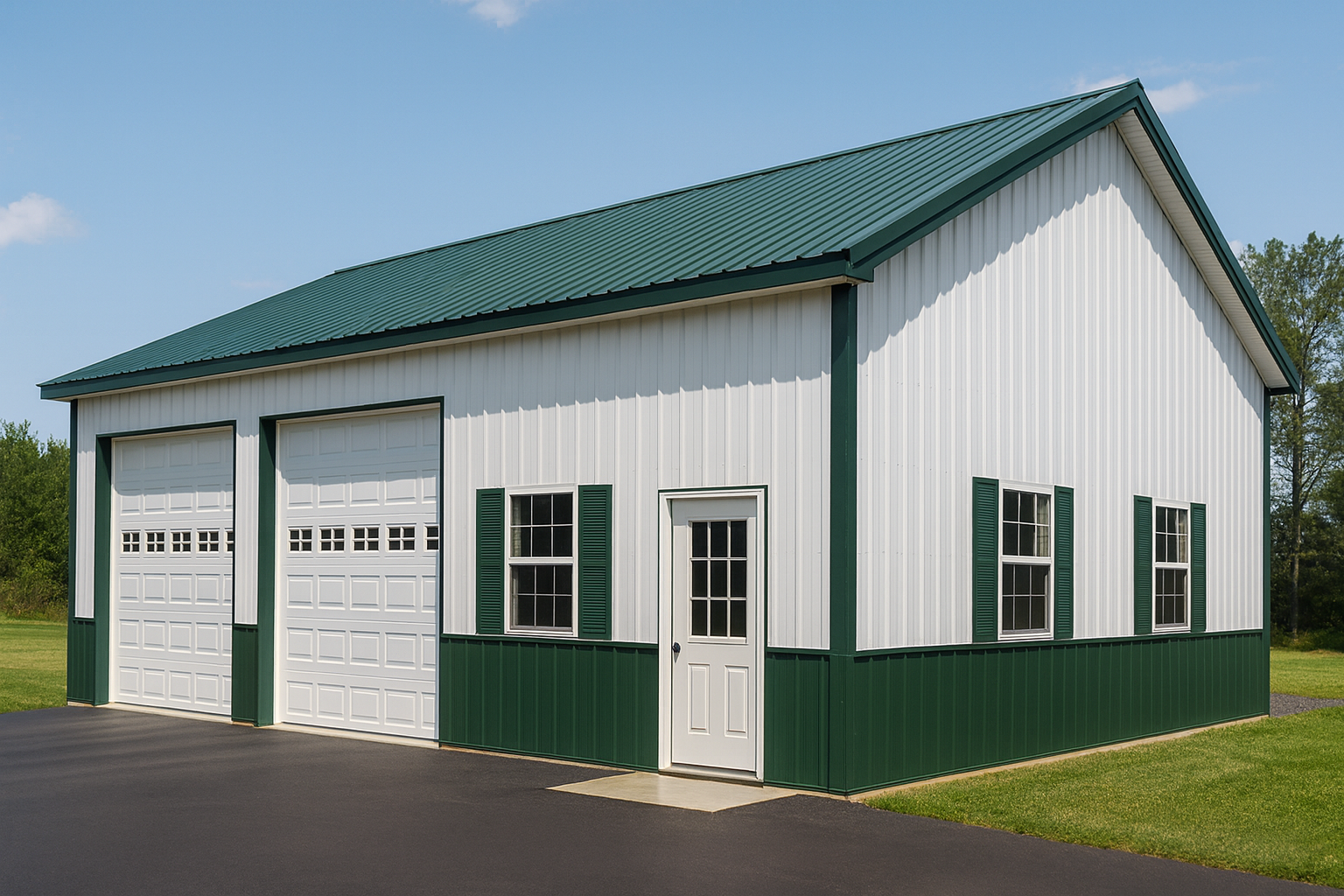

The HERITAGE Pole Building Kit

The HERITAGE 30x40x12 is a complete pole building kit designed for a two-car garage with dedicated workshop space. With 1,200 square feet of floor area and 12-foot sidewalls, this kit offers more vertical clearance than standard 10-foot builds, making it well suited for vehicle lifts, tall storage systems, or working on larger equipment.

Two 9x10 garage door openings accommodate full-size trucks and SUVs. Five window openings provide natural light throughout the interior, which is particularly useful for shop work. Wainscoting is included as part of the kit, adding exterior durability and a more finished look to the lower portion of the walls.

All structural framing, G-Rib 29-gauge steel roofing and siding, ThermaGuard moisture barrier, fasteners, and trim are included. CAD drawings and engineer-stamped truss certification (when required) come with the kit to support your local permit application.

Key Features

• Two 9x10 Garage Door Openings: Fits full-size trucks, SUVs, and larger vehicles on both bays.

• 12-Foot Sidewalls: Extra clearance for vehicle lifts, tall storage, or working on larger machinery.

• Five Window Openings: Natural light throughout the building, especially useful for shop and workshop use.

• Wainscoting Included: Adds a layer of exterior protection and a polished finish to the lower wall panels.

• G-Rib 29-Gauge Steel: High-quality painted steel roofing and siding with a 40-year finish warranty.

• ThermaGuard Moisture Barrier: Installed on the roof to reduce moisture-related issues over time.

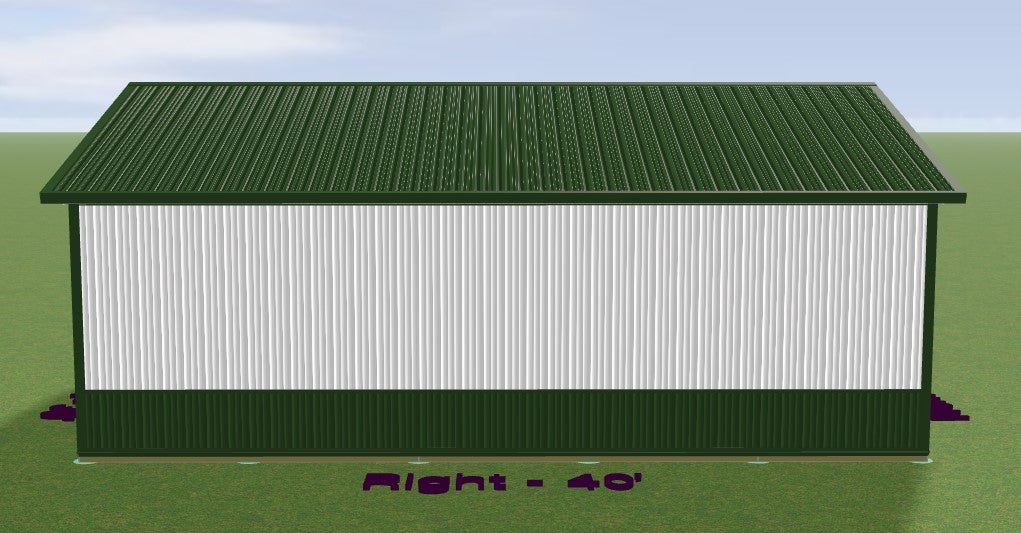

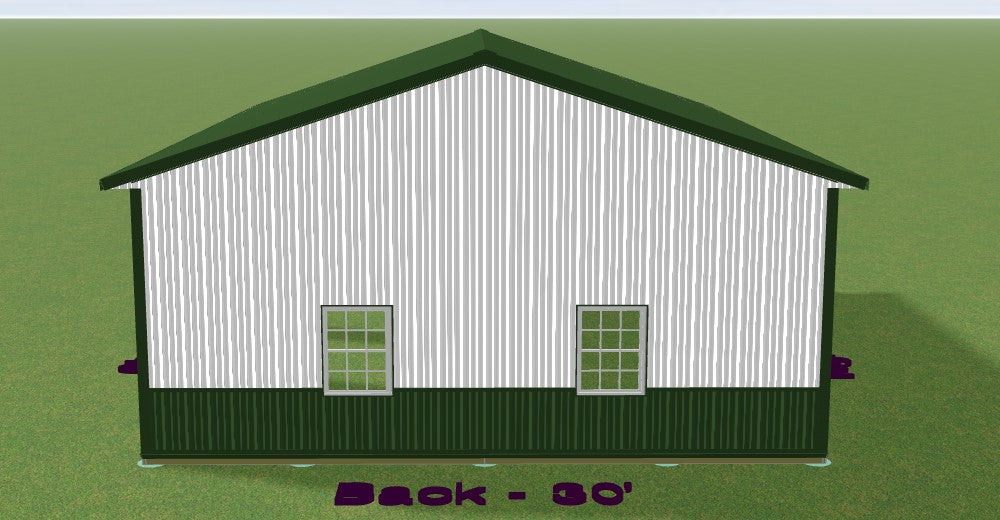

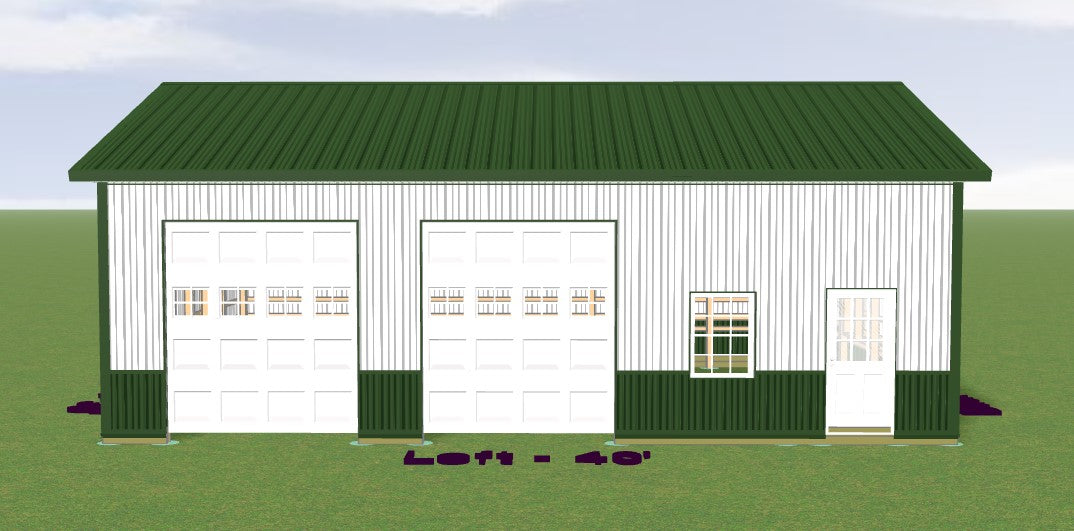

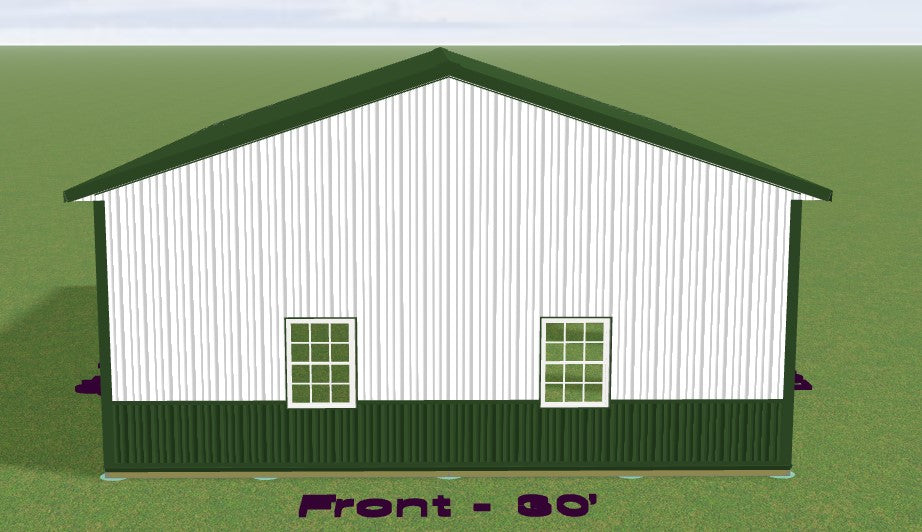

• CAD Drawings Included: Elevation and post location drawings ready for your local building permit application.

• 4-Sided Soffit: 12-inch overhang with soffit on all four sides for a clean exterior finish.



Specifications

• Size: 30 x 40 x 12 (1,200 sq ft)

• Roof Pitch: 4/12 Standard Truss

• Garage Door Openings: (2) 9 ft x 10 ft

• Personnel Door Opening: (1) 3'0" x 6'8"

• Windows: (5) openings

• Exterior Detail: Wainscoting

• Overhang: 12" with soffit on all 4 sides

• Roofing and Siding: G-Rib 29 ga. painted steel

• Warranty: 40-Year Painted Finish Warranty

• Moisture Barrier: ThermaGuard for roof

• Fasteners: All necessary metal fasteners included

• Delivery: Included to AL, CT, DE, GA, IL, IN, KY, MD, MA, MI, MN, MS, NJ, NY, NC, OH, PA, RI, SC, TN, VA, WV, WI



You Provide

• Tools and labor (yourself and a helper or two)

• Any required building permits

• Site survey and location prep

• Sakrete/Quikrete dry-pour concrete (not included)

• Framing nails (not included)



Material Checklist

• 4x6 or GluLam posts spaced 8 ft on center

• Pressure-treated 2x6 skirtboard

• 2x4 purlins and side girts, spaced 2 ft on center

• 4/12 pitch trusses, engineered and spaced 4 ft on center

• Painted screws, hurricane ties, Simpson H2.5A rafter ties

• Full metal trim package: ridge cap, rake, drip edge, fascia, J-channel, overhead door trim, and more


Please note: Upon delivery, please inspect materials immediately. Notify PBS Direct within 48 hours if anything is missing or damaged.

Quality and Warranty

PBS Direct warrants all materials against structural or workmanship defects. Improper handling or installation voids the warranty. Damaged deliveries must be reported within 48 hours of receipt for replacement.

Why Choose PBS Direct

• Engineered designs

• Delivered directly to your job site

• Backed by professional CAD drawings and support

• Built to last with industry-leading materials


The HERITAGE 30x40x12 pole building kit suits anyone looking for a two-car garage with genuine workshop capability. The combination of 12-foot walls, five windows, and wainscoting makes it one of the more practical and well-finished options in the PBS Direct building kit range.

Deposit note: A $1,250 non-refundable deposit is required to receive CAD drawings. Adjustments for permits will be made as needed. Balance is due before materials are ordered. A 1.5% handling fee applies when paying by card. For delivery outside the listed states, please call for pricing.
