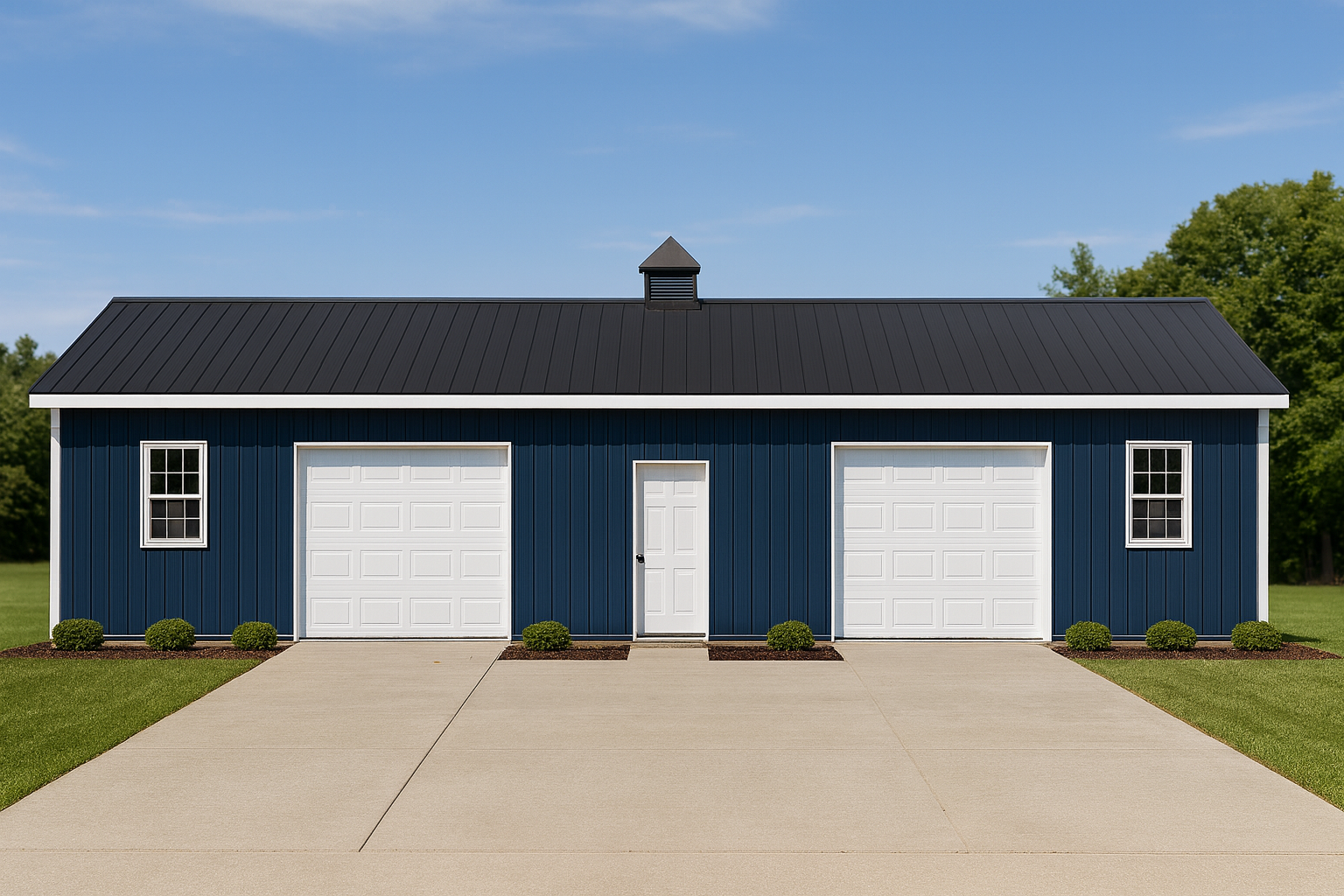

The RAMBLER Pole Building Kit

The RAMBLER 24x60x10 is a complete pole building kit designed for property owners who need two covered parking bays plus a large amount of additional storage or workshop space in the same structure. At 1,440 square feet and 60 feet deep, this kit provides the floor area of a large standalone workshop behind the two garage bays.

Two 9x8 garage door openings at the front give access for two standard vehicles. The remaining 40-plus feet of depth behind the vehicles is open floor space for equipment storage, a full workshop setup, agricultural storage, or any other use. Four window openings distribute natural light along the length of the building.

All structural framing, G-Rib 29-gauge steel roofing and siding, ThermaGuard moisture barrier, fasteners, and trim are included. CAD drawings and engineer-stamped truss certification (when required) come with the kit for your permit application.

Key Features

• 1,440 Square Feet: 60-foot depth gives substantial floor area behind the two garage bays for storage, a workshop, or equipment.
• Four Window Openings: Natural light distributed along the length of the building for visibility and practical use.
• Two 9x8 Garage Door Openings: Standard two-bay access at the front of the building.
• G-Rib 29-Gauge Steel: High-quality painted steel roofing and siding with a 40-year finish warranty.
• ThermaGuard Moisture Barrier: Installed on the roof to reduce moisture-related issues over time.

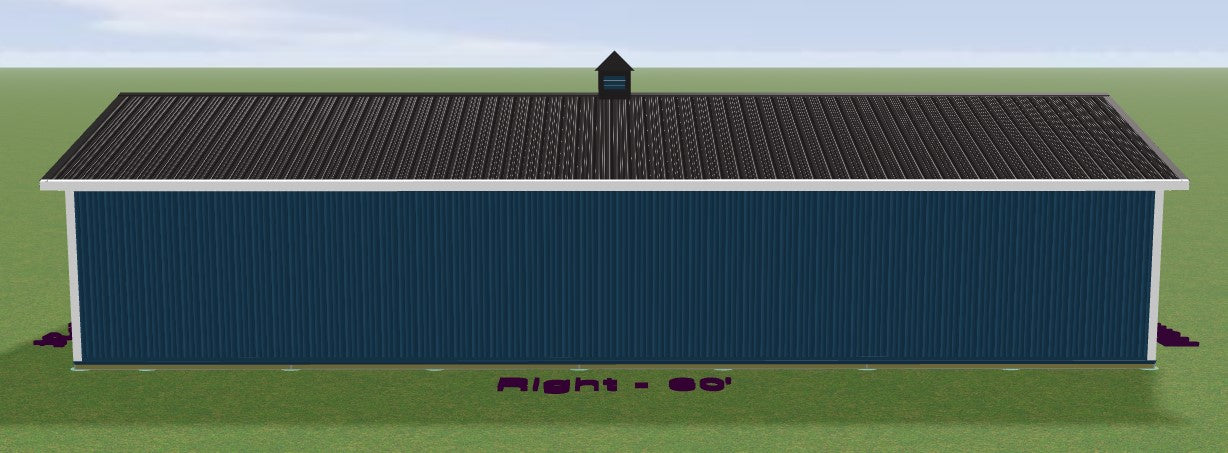

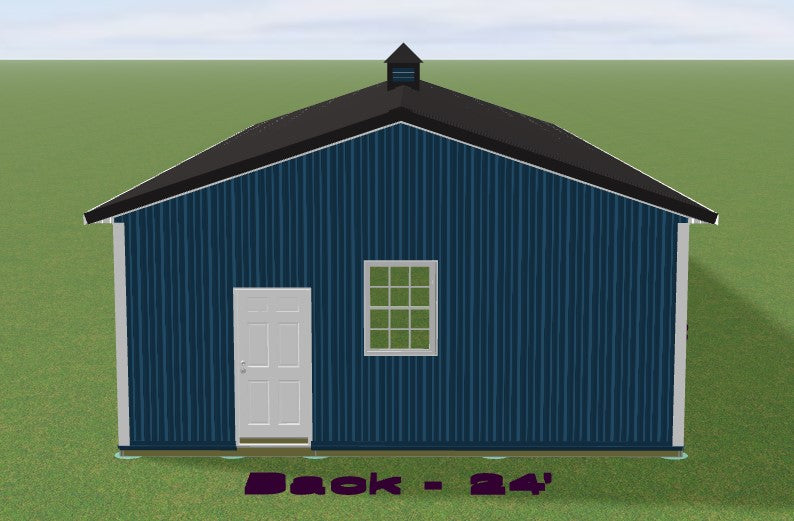

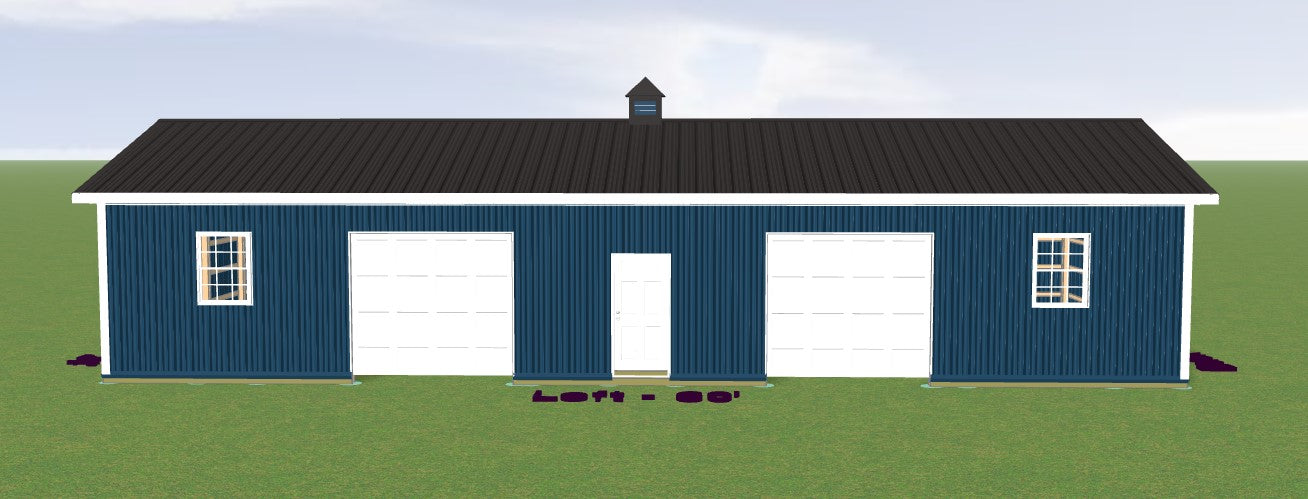

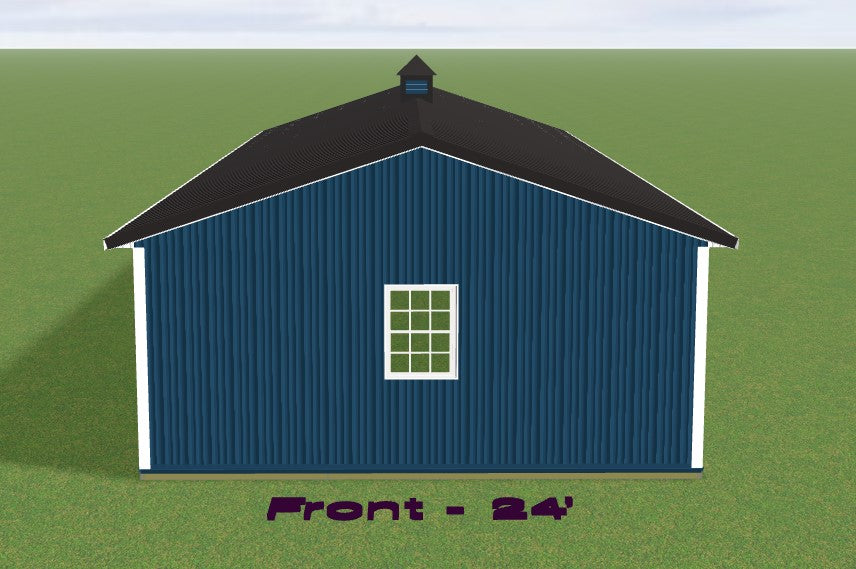

• CAD Drawings Included: Elevation and post location drawings ready for your local building permit application.
• 4-Sided Soffit: 12-inch overhang with soffit on all four sides.

Specifications

• Size: 24 x 60 x 10 (1,440 sq ft)
• Roof Pitch: 4/12 Standard Truss
• Garage Door Openings: (2) 9 ft x 8 ft
• Personnel Door Opening: (1) 3'0" x 6'8"
• Windows: (4) openings
• Overhang: 12" with soffit on all 4 sides
• Roofing and Siding: G-Rib 29 ga. painted steel
• Warranty: 40-Year Painted Finish Warranty
• Moisture Barrier: ThermaGuard for roof
• Fasteners: All necessary metal fasteners included
• Delivery: Included to AL, CT, DE, GA, IL, IN, KY, MD, MA, MI, MN, MS, NJ, NY, NC, OH, PA, RI, SC, TN, VA, WV, WI

You Provide

• Tools and labor (yourself and a helper or two)
• Any required building permits
• Site survey and location prep
• Sakrete/Quikrete dry-pour concrete (not included)
• Framing nails (not included)

Material Checklist

• 4x6 or GluLam posts spaced 8 ft on center
• Pressure-treated 2x6 skirtboard
• 2x4 purlins and side girts, spaced 2 ft on center
• 4/12 pitch trusses, engineered and spaced 4 ft on center
• Painted screws, hurricane ties, Simpson H2.5A rafter ties
• Full metal trim package: ridge cap, rake, drip edge, fascia, J-channel, overhead door trim, and more

Please note: Upon delivery, please inspect materials immediately. Notify PBS Direct within 48 hours if anything is missing or damaged.

Quality and Warranty

PBS Direct warrants all materials against structural or workmanship defects. Improper handling or installation voids the warranty. Damaged deliveries must be reported within 48 hours of receipt for replacement.

Why Choose PBS Direct

• Engineered designs
• Delivered directly to your job site
• Backed by professional CAD drawings and support
• Built to last with industry-leading materials

The RAMBLER 24x60x10 is a good fit for properties that need covered parking and a large storage or work area in the same building footprint. The 60-foot depth makes it one of the longer standard configurations available and delivers significantly more usable space than a typical garage-and-shop layout.

Deposit note: A $1,250 non-refundable deposit is required to receive CAD drawings. Adjustments for permits will be made as needed. Balance is due before materials are ordered. A 1.5% handling fee applies when paying by card. For delivery outside the listed states, please call for pricing.
