The ZION Pole Building Kit

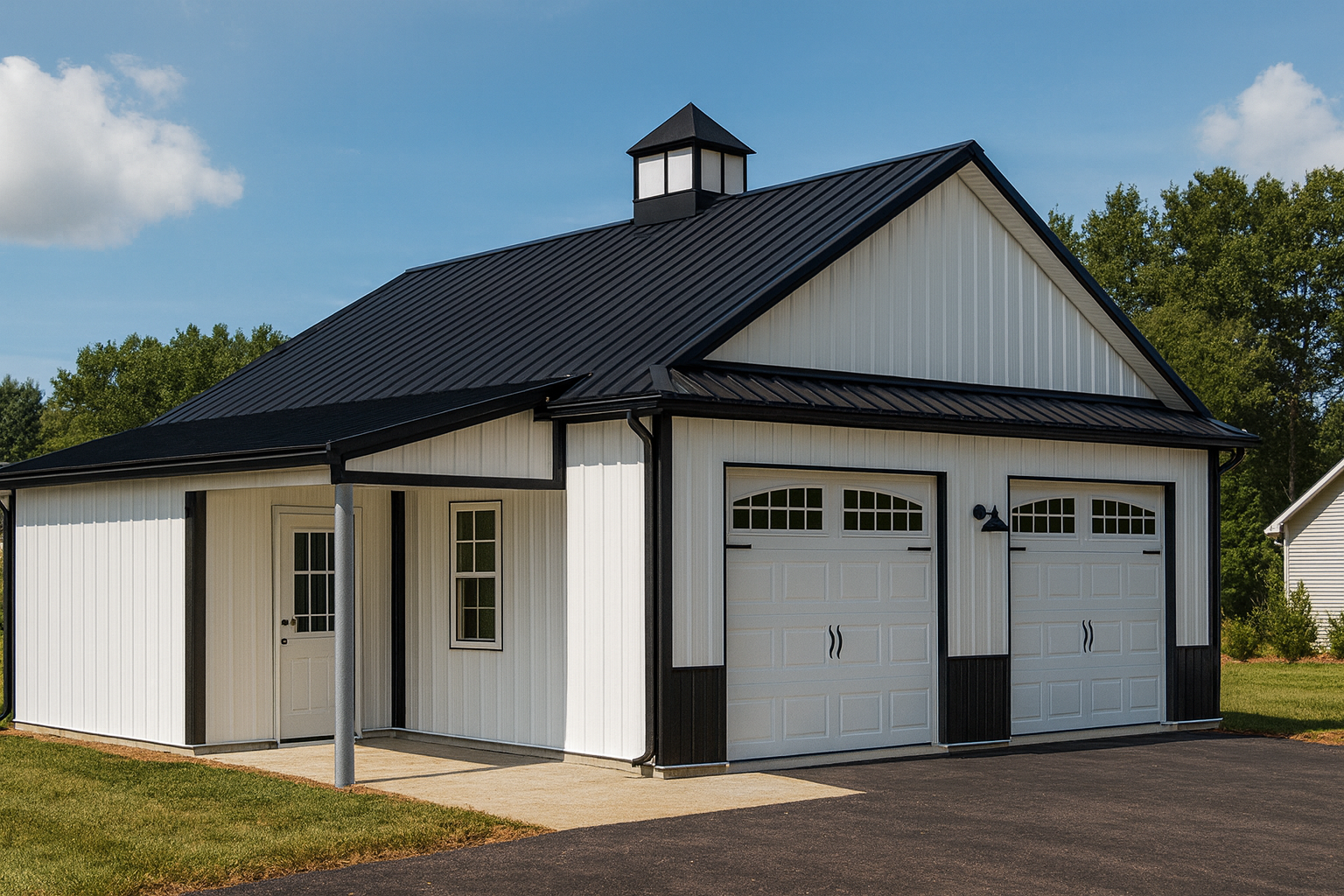

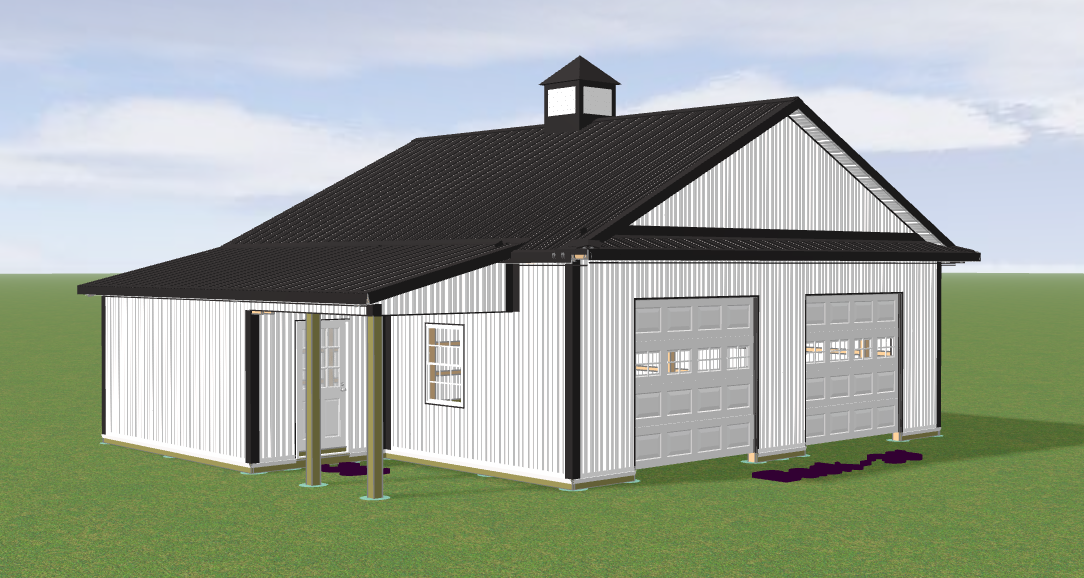

The ZION 30x30x10 is a complete pole building kit configured as a gable-oriented 2-car garage with an enclosed lean-to. The main structure measures 30x30 with 10-foot sidewalls, providing 900 square feet of garage and storage space. The enclosed lean-to adds usable covered area alongside the main building, making this kit practical for properties that need both vehicle storage and a sheltered workspace or equipment area.

Two 9x8 garage door openings provide access for standard vehicles. The gable orientation runs the ridge of the roof parallel to the doors, which suits lots where depth is available. One window opening and a personnel door are included.

All structural framing, G-Rib 29-gauge steel roofing and siding, ThermaGuard moisture barrier, fasteners, and trim are included. CAD drawings and engineer-stamped truss certification (when required) come with the kit for your permit application.

Key Features

• Enclosed Lean-To Included: Adds covered space alongside the main structure for additional storage, equipment, or a sheltered work area.
• Gable-Oriented Layout: Ridge runs parallel to the garage doors, making efficient use of lot depth.
• Two 9x8 Garage Door Openings: Fits two standard passenger vehicles or light trucks.
• G-Rib 29-Gauge Steel: High-quality painted steel roofing and siding with a 40-year finish warranty.
• ThermaGuard Moisture Barrier: Installed on the roof to reduce moisture-related issues over time.
• CAD Drawings Included: Elevation and post location drawings ready for your local building permit application.
• 4-Sided Soffit: 12-inch overhang with soffit on all four sides.

Specifications

• Size: 30 x 30 x 10
• Roof Pitch: 4/12 Standard Truss
• Configuration: Gable-oriented with enclosed lean-to
• Garage Door Openings: (2) 9 ft x 8 ft
• Personnel Door Opening: (1) 3'0" x 6'8"
• Windows: (1) opening
• Overhang: 12" with soffit on all 4 sides
• Roofing and Siding: G-Rib 29 ga. painted steel
• Warranty: 40-Year Painted Finish Warranty
• Moisture Barrier: ThermaGuard for roof
• Fasteners: All necessary metal fasteners included
• Delivery: Included to AL, CT, DE, GA, IL, IN, KY, MD, MA, MI, MN, MS, NJ, NY, NC, OH, PA, RI, SC, TN, VA, WV, WI

You Provide

• Tools and labor (yourself and a helper or two)
• Any required building permits
• Site survey and location prep
• Sakrete/Quikrete dry-pour concrete (not included)
• Framing nails (not included)

Material Checklist

• 4x6 or GluLam posts spaced 8 ft on center
• Pressure-treated 2x6 skirtboard
• 2x4 purlins and side girts, spaced 2 ft on center
• 4/12 pitch trusses, engineered and spaced 4 ft on center
• Painted screws, hurricane ties, Simpson H2.5A rafter ties
• Full metal trim package: ridge cap, rake, drip edge, fascia, J-channel, overhead door trim, and more

Please note: Upon delivery, please inspect materials immediately. Notify PBS Direct within 48 hours if anything is missing or damaged.

Quality and Warranty

PBS Direct warrants all materials against structural or workmanship defects. Improper handling or installation voids the warranty. Damaged deliveries must be reported within 48 hours of receipt for replacement.

Why Choose PBS Direct

• Engineered designs
• Delivered directly to your job site
• Backed by professional CAD drawings and support
• Built to last with industry-leading materials

The ZION 30x30x10 is a good choice for properties that need a two-car garage with the bonus of an enclosed lean-to. The gable orientation and compact 30x30 footprint keeps the building well-proportioned for residential lots while the lean-to adds practical covered area without requiring a separate structure.

Deposit note: A $1,250 non-refundable deposit is required to receive CAD drawings. Adjustments for permits will be made as needed. Balance is due before materials are ordered. A 1.5% handling fee applies when paying by card. For delivery outside the listed states, please call for pricing.
