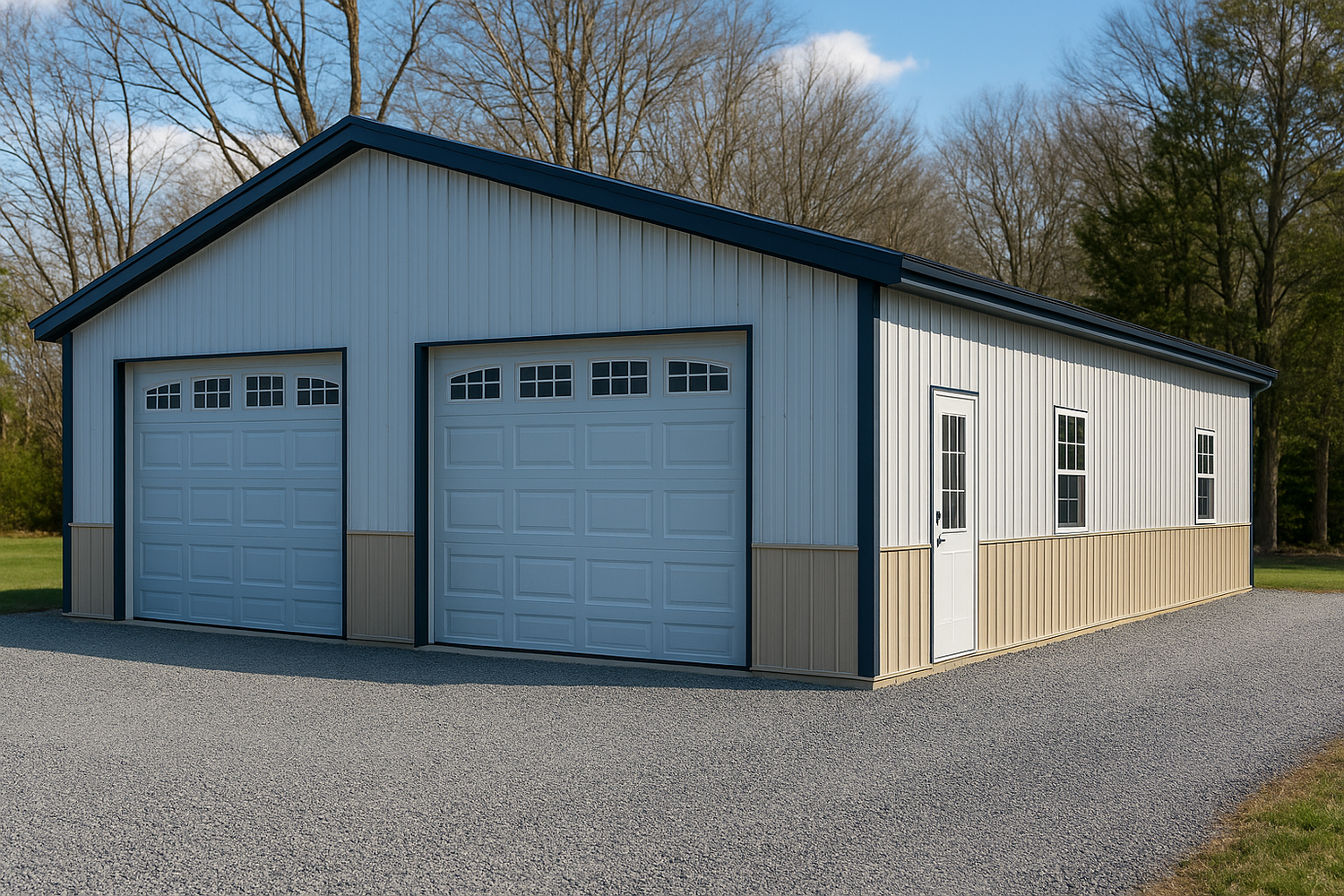

The CANYON Pole Building Kit

The CANYON 30x40x10 is a complete pole building kit configured as a gable-oriented 2-car garage with a large shop area. With 1,200 square feet, two 9x8 garage door openings, and four window openings, this kit is well suited for those who need a working shop alongside their garage space.

The gable orientation means the ridge runs parallel to the garage doors, which maximises the depth behind the vehicles for a shop layout. Four windows provide natural light across the interior, which is practical for precision work and reduces reliance on artificial lighting during the day.

The 9x8 door openings accommodate most standard passenger vehicles. All structural framing, G-Rib 29-gauge steel roofing and siding, ThermaGuard moisture barrier, fasteners, and trim are included. CAD drawings and engineer-stamped truss certification (when required) come with the kit for your permit application.

Key Features

• Gable-Oriented Layout: Ridge runs parallel to the garage doors, creating a long depth behind the vehicles ideal for a shop setup.
• Four Window Openings: Natural light throughout the building, particularly useful for detailed shop work.
• Two 9x8 Garage Door Openings: Fits two standard vehicles with room to open doors and move around.
• 1,200 Square Feet: Enough space for two vehicles and a dedicated work area behind them.
• G-Rib 29-Gauge Steel: High-quality painted steel roofing and siding with a 40-year finish warranty.
• ThermaGuard Moisture Barrier: Installed on the roof to reduce moisture-related issues over time.

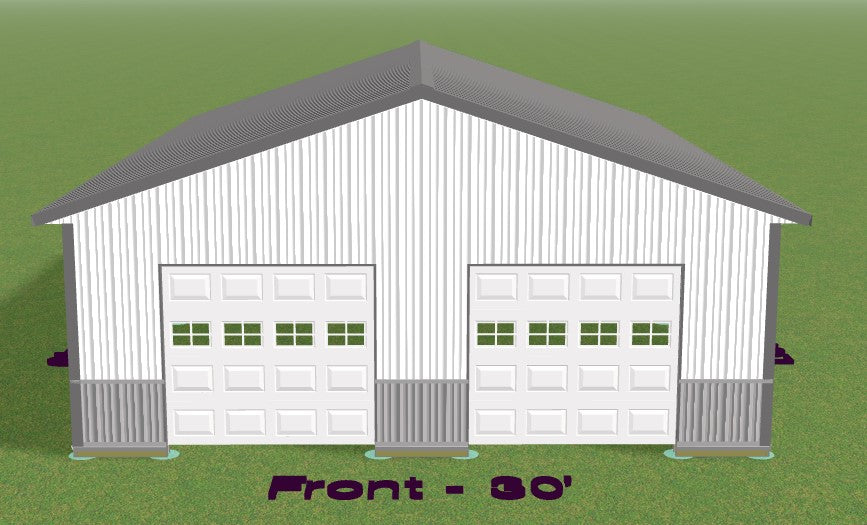

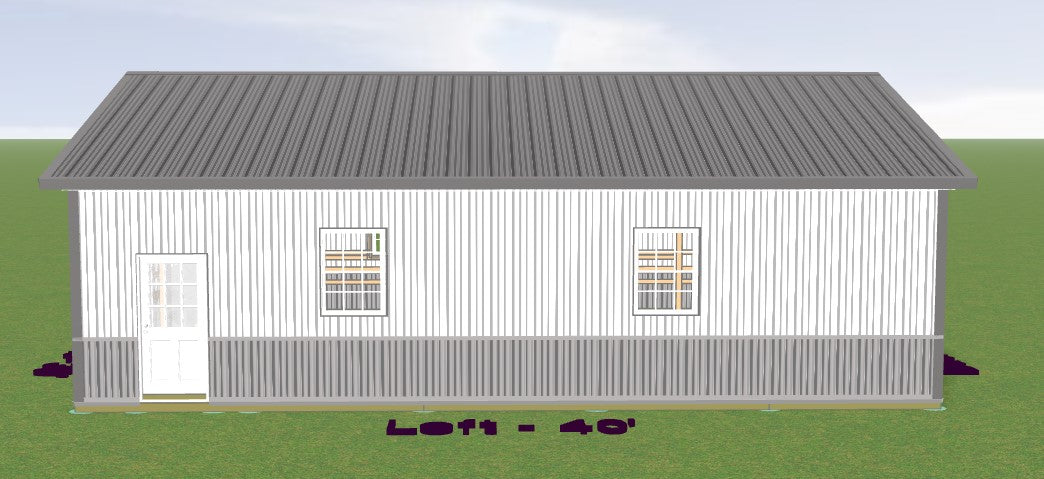

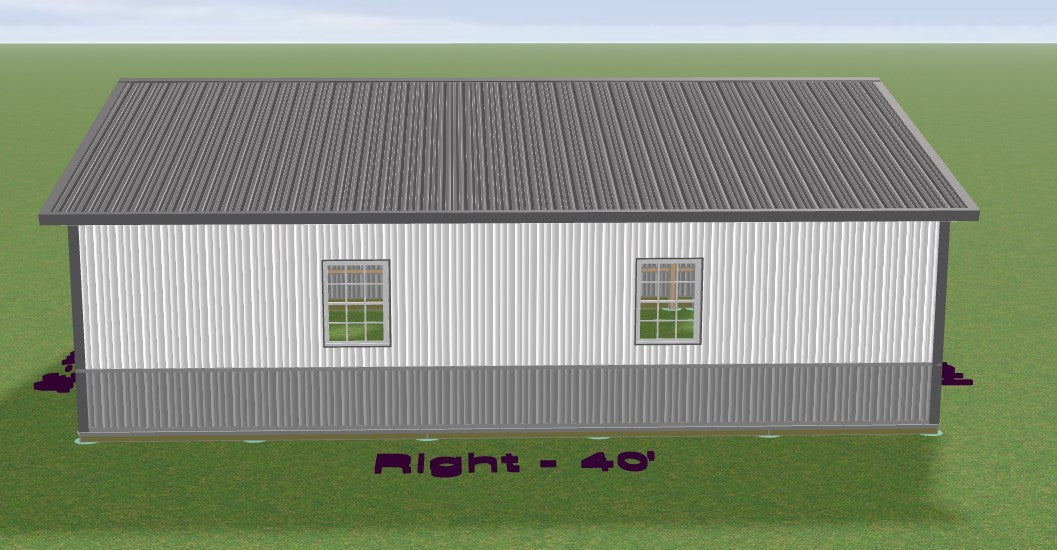

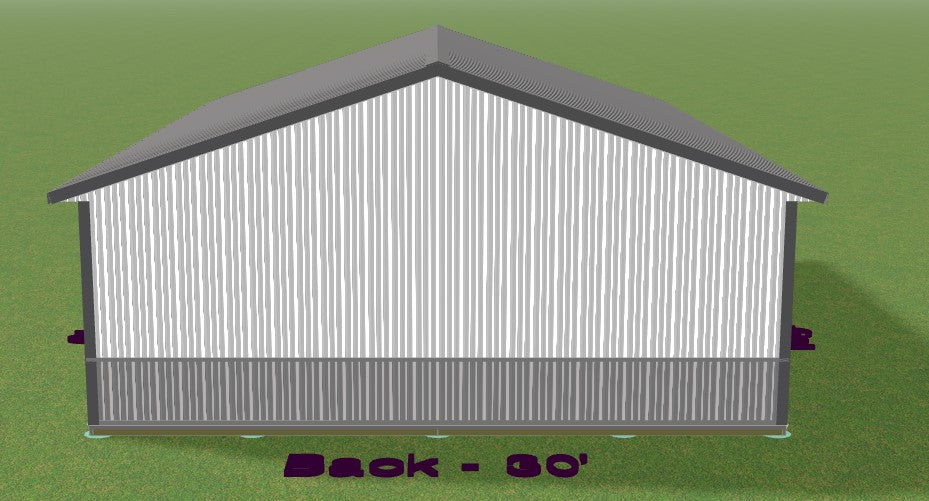

• CAD Drawings Included: Elevation and post location drawings ready for your local building permit application.
• 4-Sided Soffit: 12-inch overhang with soffit on all four sides for a clean, finished exterior.

Specifications

• Size: 30 x 40 x 10 (1,200 sq ft)
• Roof Pitch: 4/12 Standard Truss
• Configuration: Gable-oriented with large shop area
• Garage Door Openings: (2) 9 ft x 8 ft
• Personnel Door Opening: (1) 3'0" x 6'8"
• Windows: (4) openings
• Overhang: 12" with soffit on all 4 sides
• Roofing and Siding: G-Rib 29 ga. painted steel
• Warranty: 40-Year Painted Finish Warranty
• Moisture Barrier: ThermaGuard for roof
• Fasteners: All necessary metal fasteners included
• Delivery: Included to AL, CT, DE, GA, IL, IN, KY, MD, MA, MI, MN, MS, NJ, NY, NC, OH, PA, RI, SC, TN, VA, WV, WI

You Provide

• Tools and labor (yourself and a helper or two)
• Any required building permits
• Site survey and location prep
• Sakrete/Quikrete dry-pour concrete (not included)
• Framing nails (not included)

Material Checklist

• 4x6 or GluLam posts spaced 8 ft on center
• Pressure-treated 2x6 skirtboard
• 2x4 purlins and side girts, spaced 2 ft on center
• 4/12 pitch trusses, engineered and spaced 4 ft on center
• Painted screws, hurricane ties, Simpson H2.5A rafter ties
• Full metal trim package: ridge cap, rake, drip edge, fascia, J-channel, overhead door trim, and more

Please note: Upon delivery, please inspect materials immediately. Notify PBS Direct within 48 hours if anything is missing or damaged.

Quality and Warranty

PBS Direct warrants all materials against structural or workmanship defects. Improper handling or installation voids the warranty. Damaged deliveries must be reported within 48 hours of receipt for replacement.

Why Choose PBS Direct

• Engineered designs
• Delivered directly to your job site
• Backed by professional CAD drawings and support
• Built to last with industry-leading materials

The CANYON 30x40x10 suits homeowners and tradespeople who want a garage that doubles as a working shop. The gable layout and four windows make it one of the more shop-friendly configurations in the PBS Direct pole building kit range at this size.

Deposit note: A $1,250 non-refundable deposit is required to receive CAD drawings. Adjustments for permits will be made as needed. Balance is due before materials are ordered. A 1.5% handling fee applies when paying by card. For delivery outside the listed states, please call for pricing.
