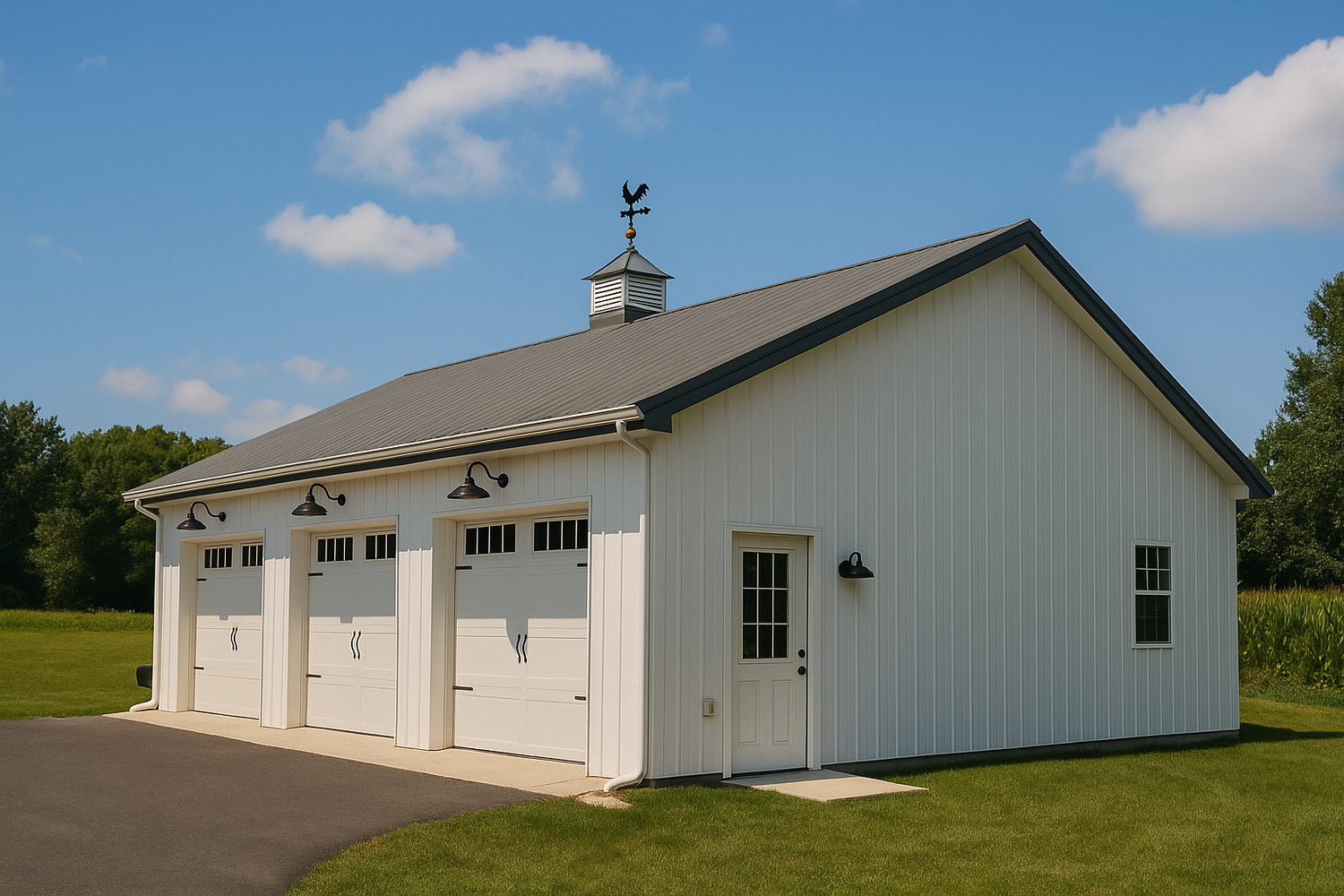

The FRONTIER Pole Building Kit

The FRONTIER 30x40x10 is a complete pole building kit for homeowners and property owners who need serious garage or storage space. With 1,200 square feet of floor area and 10-foot sidewalls, this kit is sized to accommodate three full-size vehicles while leaving room for a workshop area, tools, or equipment storage.

Every component in this kit is pre-engineered and code-compliant. The framing, roofing, siding, fasteners, and trim all arrive together at your job site, so there is no need to source materials separately. CAD drawings and engineer-stamped truss certification (when required) are included to support your local permit application.

The kit uses high-quality G-Rib 29-gauge metal roofing and siding with a 40-year finish warranty, along with a ThermaGuard moisture barrier for the roof. It is suited for agricultural properties, residential lots, and light commercial use.

Key Features

• Complete Kit: All roofing, siding, framing, fasteners, and trim are included.

• Three Garage Door Openings: (3) 8x9 openings to accommodate three full-size vehicles side by side.

• G-Rib 29-Gauge Steel: High-quality painted steel roofing and siding with a 40-year finish warranty.

• ThermaGuard Moisture Barrier: Installed on the roof to reduce moisture-related issues over time.

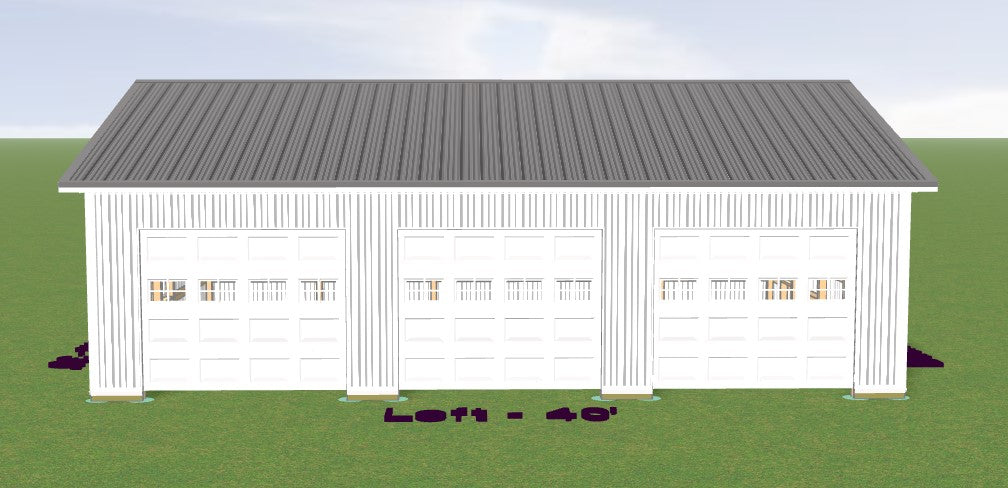

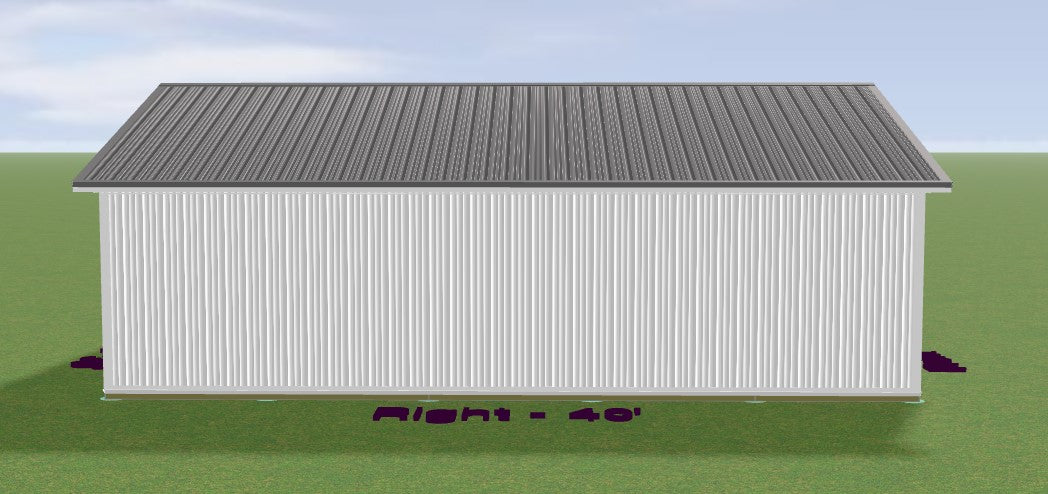

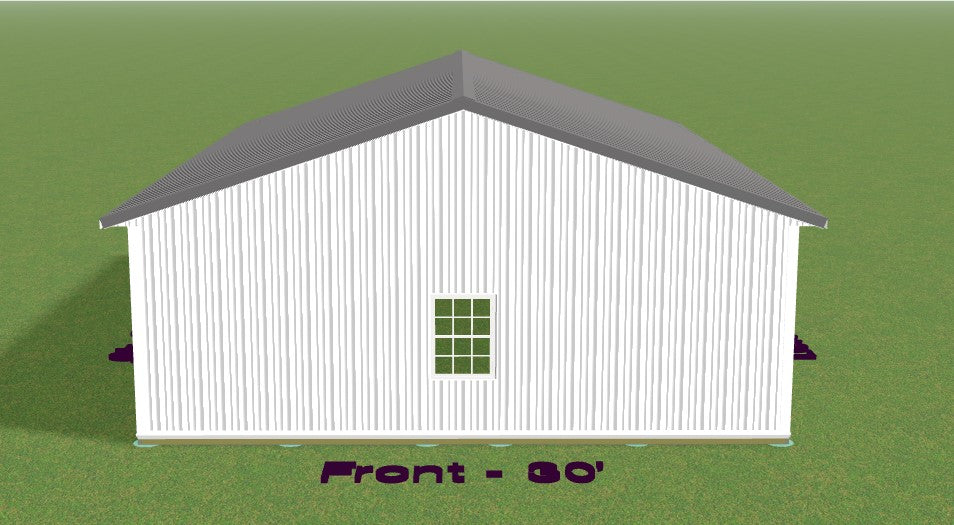

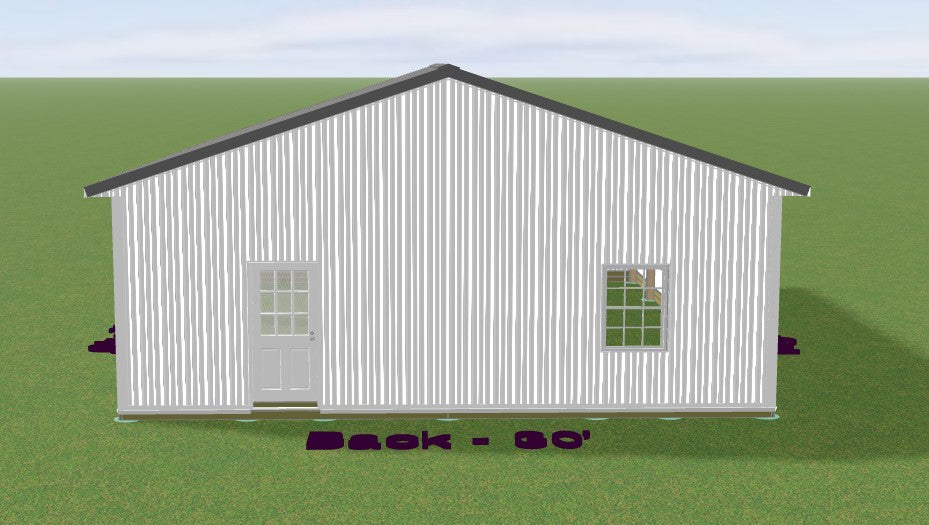

• CAD Drawings Included: Elevation and post location drawings ready for your local building permit application.

• Engineer-Stamped Truss Certification: Provided when required by your local authority.

• 4-Sided Soffit: 12-inch overhang with soffit on all four sides for a clean, finished exterior appearance.

Specifications

• Size: 30 x 40 x 10 (1,200 sq ft)

• Roof Pitch: 4/12 Standard Truss

• Garage Door Openings: (3) 8 ft x 9 ft

• Personnel Door Opening: (1) 3'0" x 6'8"

• Windows: (2) openings

• Overhang: 12" with soffit on all 4 sides

• Roofing and Siding: G-Rib 29 ga. painted steel

• Warranty: 40-Year Painted Finish Warranty

• Moisture Barrier: ThermaGuard for roof

• Fasteners: All necessary metal fasteners included

• Delivery: Included to AL, CT, DE, GA, IL, IN, KY, MD, MA, MI, MN, MS, NJ, NY, NC, OH, PA, RI, SC, TN, VA, WV, WI

You Provide

• Tools and labor (yourself and a helper or two)

• Any required building permits

• Site survey and location prep

• Sakrete/Quikrete dry-pour concrete (not included)

• Framing nails (not included)

Material Checklist

• 4x6 or GluLam posts spaced 8 ft on center

• Pressure-treated 2x6 skirtboard

• 2x4 purlins and side girts, spaced 2 ft on center

• 4/12 pitch trusses, engineered and spaced 4 ft on center

• Painted screws, hurricane ties, Simpson H2.5A rafter ties

• Full metal trim package: ridge cap, rake, drip edge, fascia, J-channel, overhead door trim, and more

Please note: Upon delivery, please inspect materials immediately. Notify PBS Direct within 48 hours if anything is missing or damaged.

Quality and Warranty

PBS Direct warrants all materials against structural or workmanship defects. Improper handling or installation voids the warranty. Damaged deliveries must be reported within 48 hours of receipt for replacement.

Why Choose PBS Direct

• Engineered and code-compliant designs

• Delivered directly to your job site

• Backed by professional CAD drawings and support

• Built to last with industry-leading materials

The FRONTIER 30x40x10 pole building kit is a straightforward choice for anyone who needs a durable, three-bay garage or multi-use outbuilding. With everything delivered to your site and permit-ready documentation included, this kit is built for a smooth construction process from start to finish.

Deposit note: A $1,250 non-refundable deposit is required to receive CAD drawings. Adjustments for permits will be made as needed. Balance is due before materials are ordered. Whole kit purchases over $7,000 paid by card are subject to a 1.5% handling fee. For delivery outside the listed states, please call for pricing.
