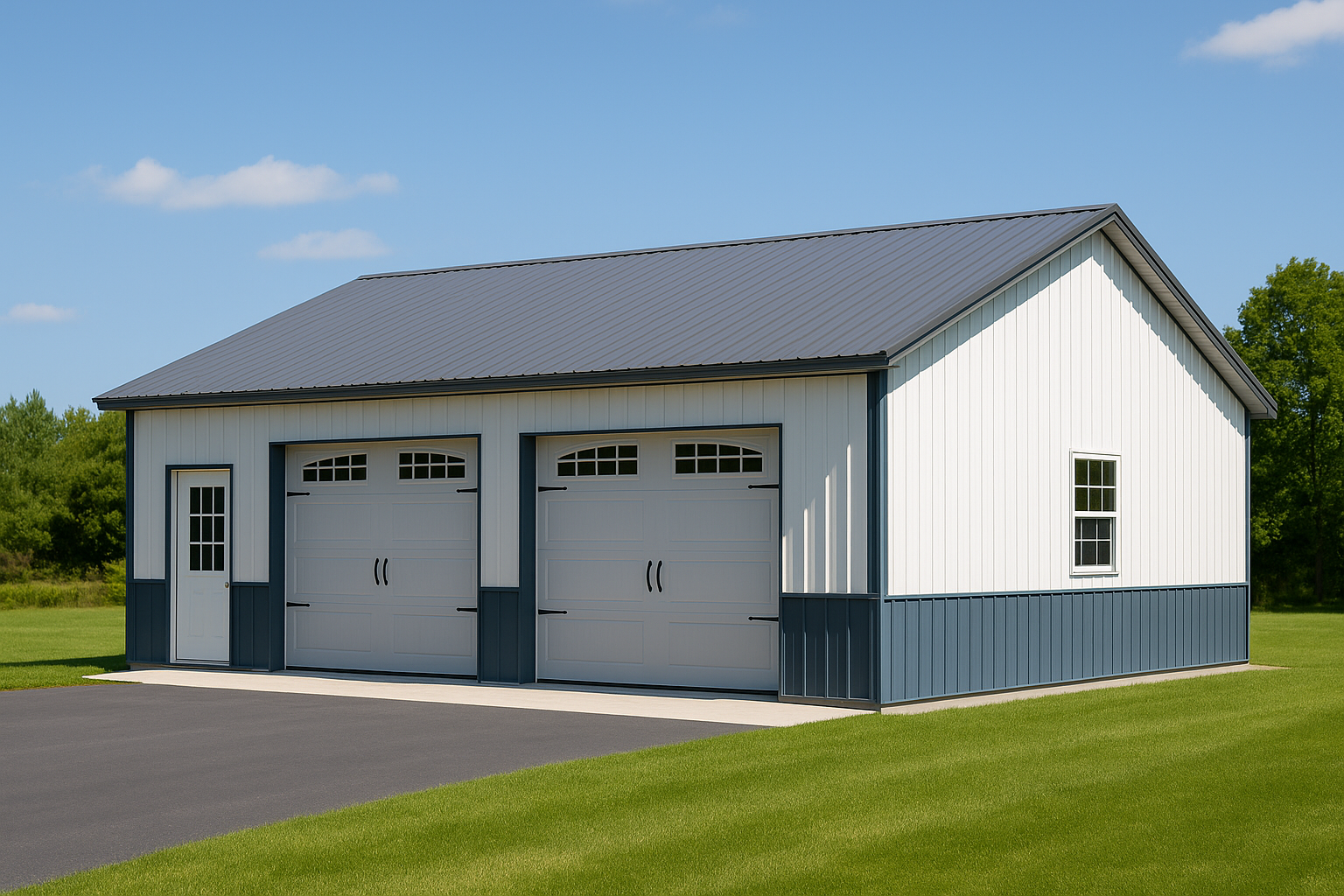

The SIERRA Pole Building Kit

The SIERRA 24x30x10 is a complete two-car garage pole building kit suited for residential properties where a practical, properly sized garage is the priority. With 720 square feet of floor space and two 9x9 garage door openings, this kit fits two standard vehicles comfortably alongside space for tools or storage along the walls.

This kit is a sensible choice for most residential lots. The 24-foot width and 30-foot depth provide enough room for two cars without being oversized for the property. The 10-foot sidewalls give standard clearance that works for most passenger vehicles and light trucks.

All structural framing, G-Rib 29-gauge steel roofing and siding, ThermaGuard moisture barrier, fasteners, and trim are included. CAD drawings and engineer-stamped truss certification (when required) come with the kit for your permit application.

Key Features

• Two 9x9 Garage Door Openings: Fits two standard passenger vehicles or light trucks side by side.
• 720 Square Feet: A practical footprint for residential lots without unnecessary overbuilding.
• G-Rib 29-Gauge Steel: High-quality painted steel roofing and siding with a 40-year finish warranty.
• ThermaGuard Moisture Barrier: Installed on the roof to reduce moisture-related issues over time.

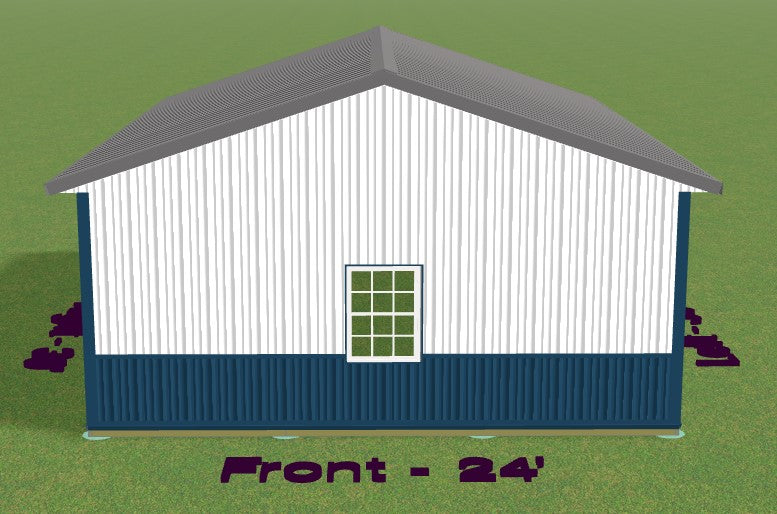

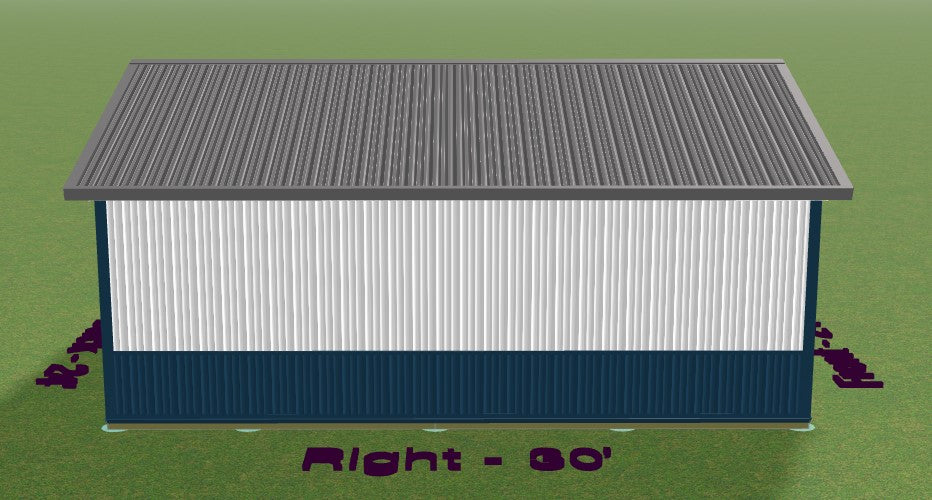

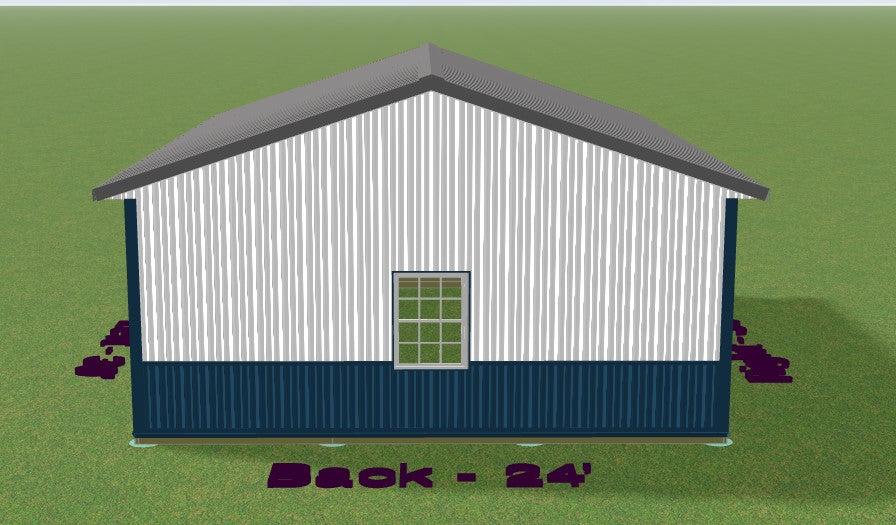

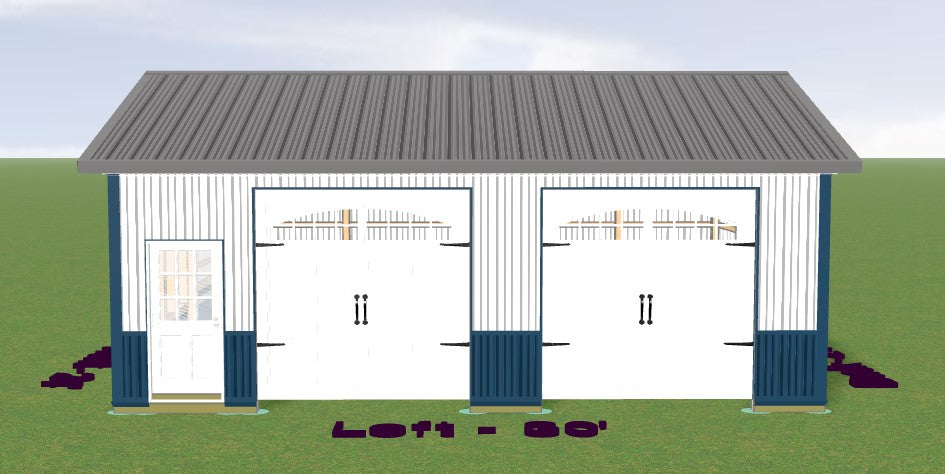

• CAD Drawings Included: Elevation and post location drawings ready for your local building permit application.
• Engineer-Stamped Truss Certification: Provided when required by your local authority.
• 4-Sided Soffit: 12-inch overhang with soffit on all four sides for a clean, finished exterior.

Specifications

• Size: 24 x 30 x 10 (720 sq ft)
• Roof Pitch: 4/12 Standard Truss
• Garage Door Openings: (2) 9 ft x 9 ft
• Personnel Door Opening: (1) 3'0" x 6'8"
• Windows: (2) openings
• Overhang: 12" with soffit on all 4 sides
• Roofing and Siding: G-Rib 29 ga. painted steel
• Warranty: 40-Year Painted Finish Warranty
• Moisture Barrier: ThermaGuard for roof
• Fasteners: All necessary metal fasteners included
• Delivery: Included to AL, CT, DE, GA, IL, IN, KY, MD, MA, MI, MN, MS, NJ, NY, NC, OH, PA, RI, SC, TN, VA, WV, WI

You Provide

• Tools and labor (yourself and a helper or two)
• Any required building permits
• Site survey and location prep
• Sakrete/Quikrete dry-pour concrete (not included)
• Framing nails (not included)

Material Checklist

• 4x6 or GluLam posts spaced 8 ft on center
• Pressure-treated 2x6 skirtboard
• 2x4 purlins and side girts, spaced 2 ft on center
• 4/12 pitch trusses, engineered and spaced 4 ft on center
• Painted screws, hurricane ties, Simpson H2.5A rafter ties
• Full metal trim package: ridge cap, rake, drip edge, fascia, J-channel, overhead door trim, and more

Please note: Upon delivery, please inspect materials immediately. Notify PBS Direct within 48 hours if anything is missing or damaged.

Quality and Warranty

PBS Direct warrants all materials against structural or workmanship defects. Improper handling or installation voids the warranty. Damaged deliveries must be reported within 48 hours of receipt for replacement.

Why Choose PBS Direct

• Engineered designs
• Delivered directly to your job site
• Backed by professional CAD drawings and support
• Built to last with industry-leading materials

The SIERRA 24x30x10 pole building kit is a well-proportioned two-car garage for residential use. It covers what most homeowners actually need: covered parking for two vehicles, enough wall space for basic storage, and a build process supported by included CAD drawings and all materials delivered to the site.

Deposit note: A $1,250 non-refundable deposit is required to receive CAD drawings. Adjustments for permits will be made as needed. Balance is due before materials are ordered. A 1.5% handling fee applies when paying by card. For delivery outside the listed states, please call for pricing.
