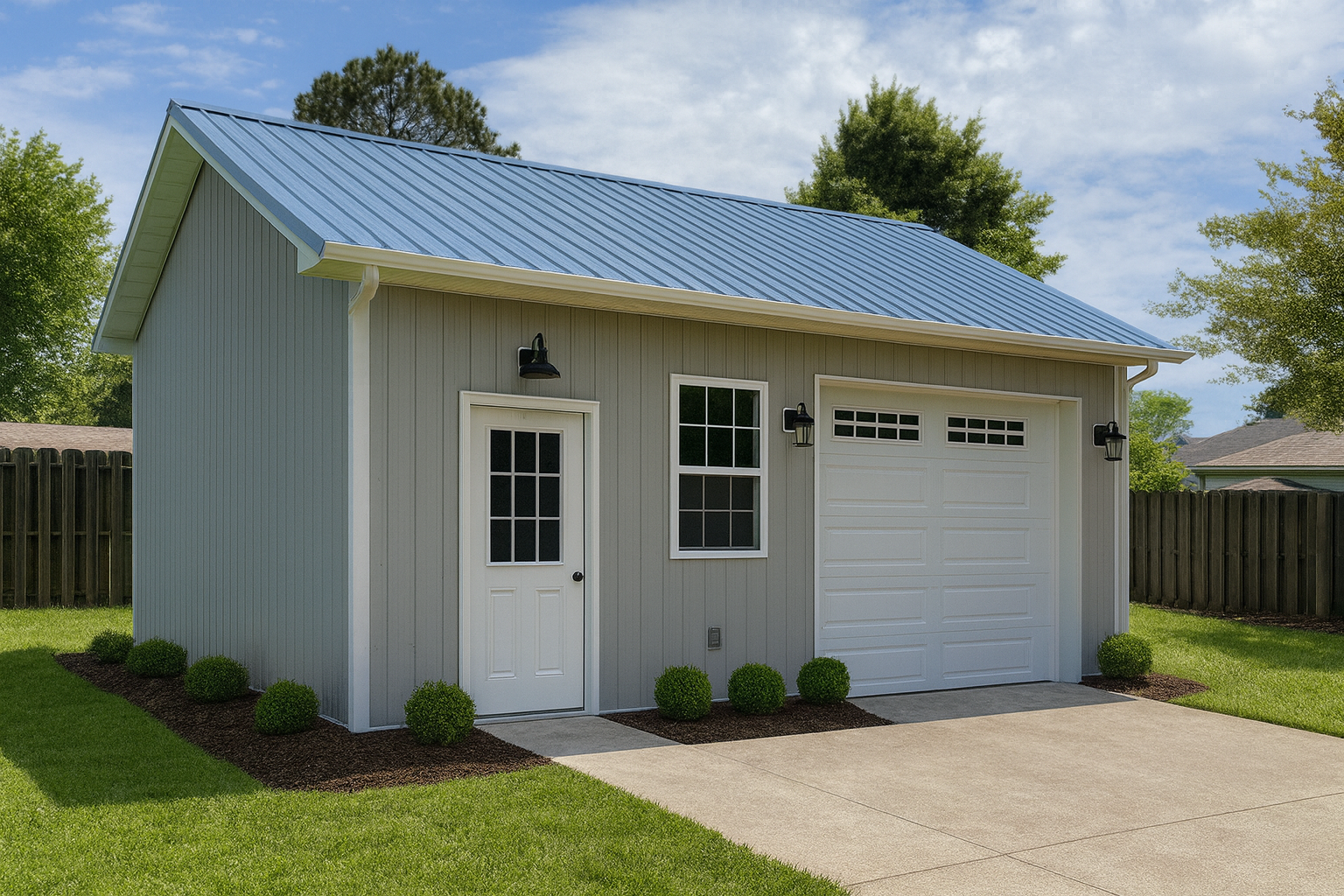

The SCOUT Pole Building Kit

The SCOUT 20x24x10 is a complete garden shed and small storage building pole building kit. At 480 square feet with a 20-foot width and 10-foot sidewalls, this is one of the smallest kits in the PBS Direct range, making it well suited for residential properties with limited space, smaller lots, or applications where a modest, durable outbuilding is all that is needed.

A single 8x8 garage door opening provides access for a riding mower, small tractor, ATV, or stored equipment. Two window openings provide natural light and ventilation. This kit is a practical choice for garden storage, hobby use, small workshop setups, or a dedicated equipment shed.

All structural framing, G-Rib 29-gauge steel roofing and siding, ThermaGuard moisture barrier, fasteners, and trim are included. CAD drawings and engineer-stamped truss certification (when required) come with the kit for your permit application.

Key Features

• Compact 480 Square Feet: Well-suited to smaller lots and applications where a modest, purpose-built outbuilding is the goal.
• Single 8x8 Garage Door Opening: Fits a riding mower, small tractor, ATV, or similar equipment for easy access.
• Two Window Openings: Natural light and ventilation for a comfortable working or storage environment.
• G-Rib 29-Gauge Steel: High-quality painted steel roofing and siding with a 40-year finish warranty.
• ThermaGuard Moisture Barrier: Installed on the roof to reduce moisture-related issues over time.

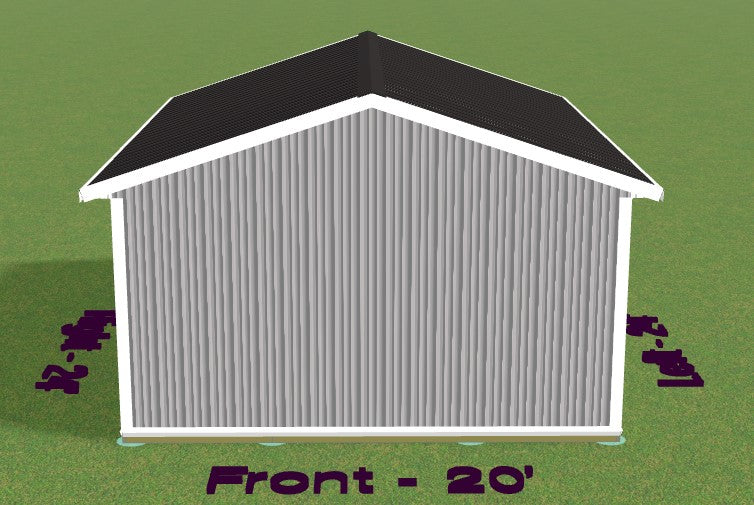

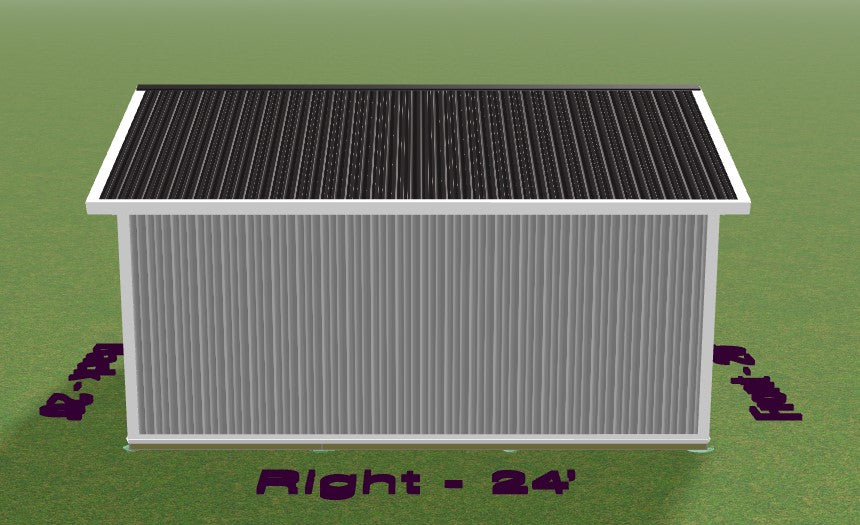

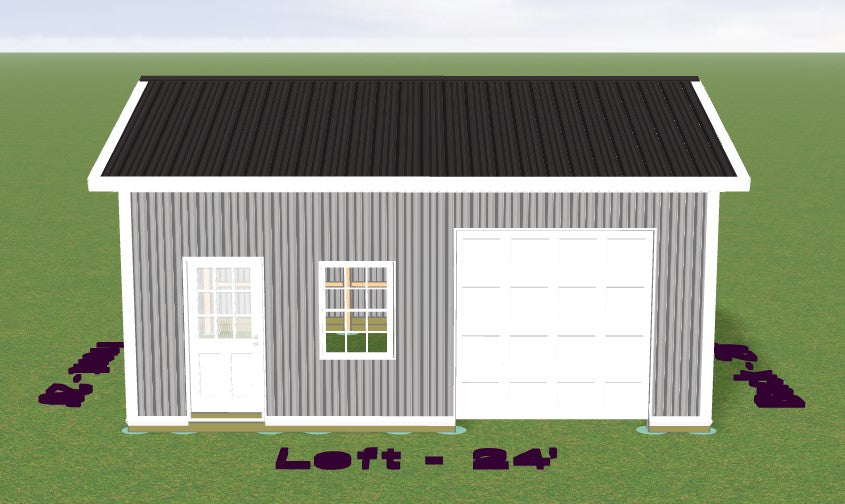

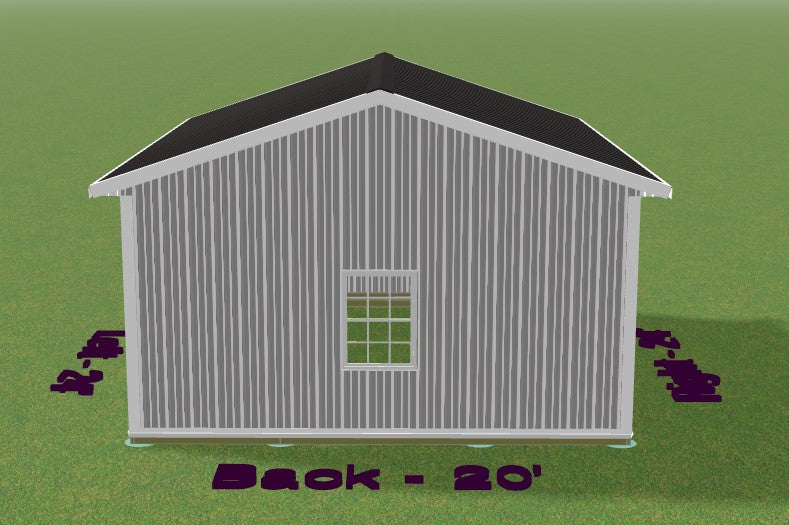

• CAD Drawings Included: Elevation and post location drawings ready for your local building permit application.
• 4-Sided Soffit: 12-inch overhang with soffit on all four sides for a clean, finished exterior.

Specifications

• Size: 20 x 24 x 10 (480 sq ft)
• Roof Pitch: 4/12 Standard Truss
• Garage Door Opening: (1) 8 ft x 8 ft
• Personnel Door Opening: (1) 3'0" x 6'8"
• Windows: (2) openings
• Overhang: 12" with soffit on all 4 sides
• Roofing and Siding: G-Rib 29 ga. painted steel
• Warranty: 40-Year Painted Finish Warranty
• Moisture Barrier: ThermaGuard for roof
• Fasteners: All necessary metal fasteners included
• Delivery: Included to AL, CT, DE, GA, IL, IN, KY, MD, MA, MI, MN, MS, NJ, NY, NC, OH, PA, RI, SC, TN, VA, WV, WI

You Provide

• Tools and labor (yourself and a helper or two)
• Any required building permits
• Site survey and location prep
• Sakrete/Quikrete dry-pour concrete (not included)
• Framing nails (not included)

Material Checklist

• 4x6 or GluLam posts spaced 8 ft on center
• Pressure-treated 2x6 skirtboard
• 2x4 purlins and side girts, spaced 2 ft on center
• 4/12 pitch trusses, engineered and spaced 4 ft on center
• Painted screws, hurricane ties, Simpson H2.5A rafter ties
• Full metal trim package: ridge cap, rake, drip edge, fascia, J-channel, overhead door trim, and more

Please note: Upon delivery, please inspect materials immediately. Notify PBS Direct within 48 hours if anything is missing or damaged.

Quality and Warranty

PBS Direct warrants all materials against structural or workmanship defects. Improper handling or installation voids the warranty. Damaged deliveries must be reported within 48 hours of receipt for replacement.

Why Choose PBS Direct

• Engineered designs
• Delivered directly to your job site
• Backed by professional CAD drawings and support
• Built to last with industry-leading materials

The SCOUT 20x24x10 is the entry-level option in the PBS Direct pole building kit range and is the right choice when a full-size garage is more than the project requires. It delivers genuine, durable construction in a compact footprint that suits a wide range of residential storage and hobby building applications.

Deposit note: A $1,250 non-refundable deposit is required to receive CAD drawings. Adjustments for permits will be made as needed. Balance is due before materials are ordered. A 1.5% handling fee applies when paying by card. For delivery outside the listed states, please call for pricing.
